Suku cadang mesin tempel PT15 kami dirancang agar kompatibel dengan model Yamaha populer seperti 6B4 dan 63V.
Bagian-bagian ini banyak digunakan di:
Kami memberikan alternatif hemat biaya bagi pelanggan yang mencari suku cadang mesin tempel yang andal tanpa mahalnya komponen asli.
Kompatibilitas dengan Model Yamaha
Suku cadang PT15 kami kompatibel dengan:
Catatan:
Ini adalah suku cadang pengganti , bukan suku cadang asli Yamaha, namun dirancang agar sesuai dengan spesifikasi utama dan persyaratan kinerja.
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |
| Gambar 1-1 | ASSY. | 6B4-42610-20 | penutup mesin atas assy |
| Gambar 1-2 | PT15-01002 | 6B4-42615-00 | segel |
| Gambar 1-3 | PT15-01003 | 6B4-42651-00 | kait |
| Gambar 1-4 | GB/T873D408 | 90266-04M00 | paku keling Φ4X8 |
| Gambar 1-5 | PT15-01005 | 6B4-42674-00 | pita penjepit dudukan |
| Gambar 1-6 | GB/T873D410 | 90266-04005 | memusatkan |
| Gambar 1-7 | PT15-01007 | 6B4-42613-10 | cetakan saluran udara |
| Gambar 1-8 | GB/T845FST4816 | 90167-05017 | sekrup sadap ST4.8X16 |
| Gambar 1-9 | PT15-01013 | 6B4-15761-00 | segel karet1 |
| Gambar 1-10 | PT15-01001 | penutup mesin atas | |
| Gambar 1-11 | PT5-12015-JC | ||
| Gambar 1-12 | PT15-01010 | 677-42676-10 | sisi grafis2 |
| Gambar 1-13 | PT15-01009 | 677-42675-10 | sisi grafis1 |
| Gambar 1-14 | PT15-01012 | 63V-42678-40 | grafis belakang |
| Gambar 1-15 | PT15-01011 | 63V-42678-10 | grafis belakang |
| Gambar 1-16 | PT30-01015 | 6E0-44191-11 | pergeseran indikator |
| Gambar 1-17 | PT5-12016-1 | Grafis dua pukulan |
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |
| Gambar 2-1 | ASSY.PT15-02001 | 6B4-W0090-00-1S | assy silinder engkol |
| Gambar 2-2 | ASSY.PT15-02002 | 6B4-15100-00 | assy bak mesin |
| Gambar 2-3 | PT5-04002 | 624-14485-00 | sambungan pipa |
| Gambar 2-4 | PT15-02004 | 650-14485-03 | sambungan pipa |
| Gambar 2-5 | PT15-02002-1 | T/A | |
| Gambar 2-6 | PT15-02002-2 | T/A | |
| Gambar 2-7 | PT15-02002-3 | T/A | |
| Gambar 2-8 | PT15-02005 | 90445-07M08 | selang（L220） |
| Gambar 2-9 | PT5-08001 | 90467-06016 | klip Φ6 |
| Gambar 2-10 | PT15-02007 | 682-11325-00 | anoda |
| Gambar 2-11 | GB/T819.1M516 | 98780-05015 | sekrup countersunk |
| Gambar 2-12 | PT5-03002 | 93606-12019 | paku kayu |
| Gambar 2-13 | GB /T5782M860 | 90119-08M07 | baut M8*60 |
| Gambar 2-14 | GB/T97.1D8 | 92900-08600 | mesin cuci Φ8.5XΦ16X1.5 |
| Gambar 2-15 | PT15-02011 | 63V-41111-00-1S | knalpot penutup bagian dalam |
| Gambar 2-16 | PT15-02012 | 6B4-41112-A0 | paking penutup bagian dalam knalpot |
| Gambar 2-17 | PT15-02013 | 63V-41112-A0 | paking penutup bagian dalam knalpot |
| Gambar 2-18 | PT15-02014 | 63V-41113-00-1S | penutup luar knalpot |
| Gambar 2-19 | PT15-02015 | 676-11372-00 | selang puting |
| Gambar 2-20 | PT15-02016 | 90445-09104 | selang（L300） |
| Gambar 2-21 | GB/T5782M630 | 90119-06MA4 | baut M6*30 |
| Gambar 2-22 | GB/T97.1D6 | 920903-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 2-23 | 6B4-11111-00-1S | silinder kepala 1 | |
| Gambar 2-24 | PT15-02019 | 63V-11181-A2 | paking kepala silinder1 |
| Gambar 2-25 | PT15-02020 | 90105-07M05 | flensa baut M7*35 |
| Gambar 2-26 | PT15-02021 | 6B4-11191-00-1S | penutup kepala silinder1 |
| Gambar 2-27 | PT15-02022 | 6B4-11193-A1 | penutup kepala paking1 |
| Gambar 2-28 | GB/T5783M616 | 90119-06023 | baut M6*16 |
| Gambar 2-29 | GB/T97.1D6 | 920903-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 2-30 | PT15-02024 | 682-12413-00-1S | penutup termostat |
| Gambar 2-31 | PT3-14003 | 6E5-12411-02 | termostat |
| Gambar 2-32 | PT15-02027 | 682-12414-A1 | penutup paking |
| Gambar 2-33 | GB/T5783M625 | 90119-06MA3 | baut M6*25 |
| Gambar 2-34 | GB/T97.1D6 | 920903-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 2-35 | PT15-02029 | 6B4-11351-A1 | silinder paking |
| Gambar 2-36 | PT15-02030 | 94702-00160 | busi busi （NGKBR8HS） |
| Gambar 2-37 | PT15-03029 | 90201-46M29 | piring pencuci |
| Gambar 2-38 | PT15-03028 | 63V-11445-00 | pengatur jarak |
| Gambar 2-39 | PT15-03002 | 93210-46M16 | Cincin-O |
| Gambar 2-40 | PT15-03003 | 93102-25010 | segel minyak Φ25*Φ38*7 |
| Gambar 2-41 | PT15-03004 | 93101-13M27 | segel minyak Φ13*Φ25*6 |
| Gambar 2-42 | PT15-03001 | 6B4-15396-00-CA | segel minyak perumahan |
| Gambar 2-43 | GB/T5783M616 | 90119-06023 | baut M6*16 |
| Gambar 2-44 | GB/T97.1D6 | 920903-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |

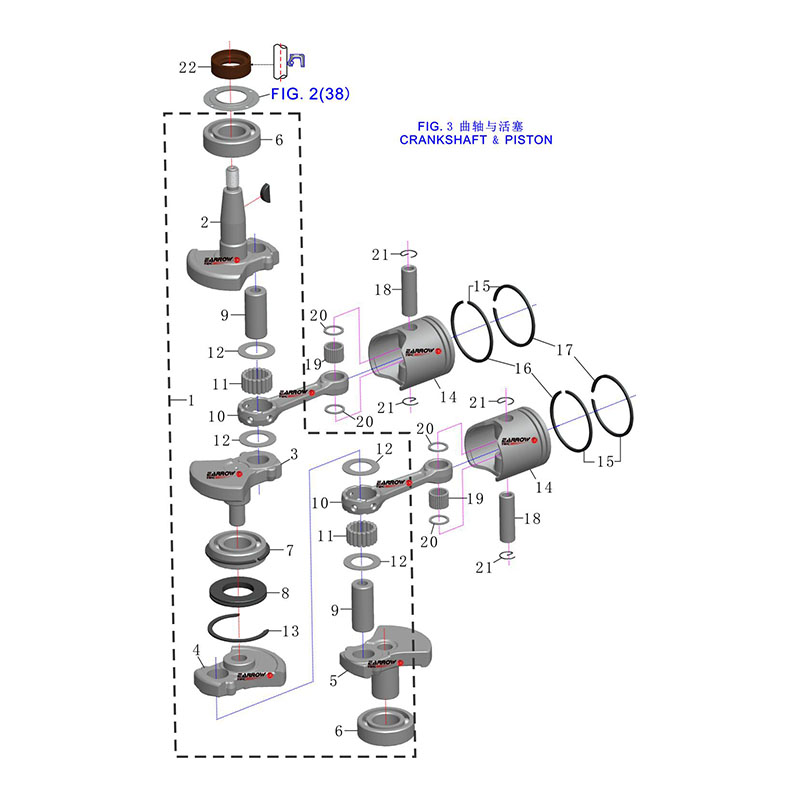

| Gambar 3-1 | PT15-03007 | 6B4-11400-00 | assy poros engkol |
| Gambar 3-2 | PT15-03008 | 63V-11412-00 | engkol1 |
| Gambar 3-3 | PT15-03009 | 63V-11422-01 | engkol2 |
| Gambar 3-4 | PT15-03010 | 63V-11432-02 | engkol3 |
| Gambar 3-5 | PT15-03011 | 63V-11442-03 | engkol4 |
| Gambar.3-6 | 6205/P53YA | 93306-205A1 | bantalan Φ25*Φ52*15 |
| Gambar.3-7 | 205X2NXW3( | 93390-00029 | bantalan Φ25*Φ52*15 |
| Gambar.3-8 | PT15-03014 | 63V-11515-02 | segel labirin |
| Gambar.3-9 | PT15-03015 | 682-11681-00 | pin engkol1 |
| Gambar 3-10 | PT15-03016 | 6K4-11651-00 | batang penghubung |
| Gambar 3-11 | PT15-03017 | 93310-620W5 | bantalan |
| Gambar 3-12 | PT15-03018 | 90209-20M23 | mesin cuci |
| Gambar 3-13 | PT15-03020 | 92440-52009 | lingkaran |
| Gambar.3-14 | PT15-03021 | 6E7-11631-00-97 | piston |
| Gambar 3-15 | ASSY.PT15-03022 | 682-11610-01 | cincin piston |
| Gambar.3-16 | PT15-03022-2 | T/A | cincin piston |
| Gambar.3-17 | PT15-03022-1 | T/A | cincin piston |
| Gambar.3-18 | PT15-03023 | 634-11633-00 | pin piston |
| Gambar 3-19 | PT15-03024 | 93602-14104 | paku kayu |
| Gambar.3-20 | PT15-03025 | 90201-14377 | piring pencuci |
| Gambar.3-21 | PT15-03026 | 93450-15023 | klip pin piston |
| Gambar 3-22 | PT15-03027 | 93110-23M00 | segel minyak Φ23*Φ36*13 |
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |
| Gambar 4-1 | PT15-04001 | 63V-13610-10 | katup buluh assy |
| Gambar 4-2 | GB/T5783M620 | 97095-06020 | baut M6*20 |
| Gambar 4-3 | GB/T97.1D6 | 92995-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 4-4 | PT15-05001 | 6B3-14301-00 | assy karburator. |
| Gambar 4-5 | GB/T5782M695 | 97013-06035 | baut M6*95 |
| Gambar 4-6 | GB/T97.1D6 | 92995-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 4-7 | PT15-04009 | 93210-35M86 | Cincin O Φ1.8XΦ37 |
| Gambar 4-8 | PT15-04014 | 6B4-41252-00 | tuas tersedak1 |
| Gambar 4-9 | GB/T879.2D450 | 91690-20010 | pegas pin Φ2X12 |
| Gambar 4-10 | PT15-04013 | 6B4-41262-00 | tuas tersedak sendi |
| Gambar 4-11 | PT15-04005 | 6B4-14440-00 | peredam assy. asupan |
| Gambar 4-12 | PT15-04005-2 | T/A | |
| Gambar 4-13 | PT15-04005-3 | T/A | |
| Gambar 4-14 | PT15-04005-1 | T/A | |
| Gambar 4-15 | GB/T822M525 | 90159-05007 | kepala panci sekrup M5*25 |
| Gambar 4-16 | GB/T97.1D5 | mesin cuci Φ5XΦ10X1 | |
| Gambar 4-17 | PT15-04010 | 6B4-41271-01 | kenop tersedak |
| Gambar 4-18 | PT15-04010-1 | T/A | |
| Gambar 4-19 | PT15-04011 | 6B4-41273-00 | grommet |
| Gambar 4-20 | PT15-04012 | 6B4-41274-00 | grommet2 |
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |
| Gambar 5-1 | PT5-14033 | 6G1-24304-02 | sambungan pipa bahan bakar komp |
| Gambar 5-2 | PT15-06014 | 6B4-24329-00 | segel |
| Gambar 5-3 | GB/T5783M620 | 97095-06020 | baut M6*20 |
| Gambar 5-4 | GB/T97.1D6 | 92995-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 5-5 | PT5-14041 | 61N-24560-00 | menyaring assy. |
| Gambar 5-6 | PT15-06012 | 648-24566-02 | filter braket |
| Gambar 5-7 | GB/T6170M8 | 95380-08600 | kacang M8 |
| Gambar 5-8 | GB/T5783M612 | 97013-06014 | baut M6*12 |
| Gambar 5-9 | PT15-06010 | 90445-09M00 | pipa Φ9XΦ5XL180 |
| Gambar 5-10 | PT15-06009 | 90445-09104 | pipa Φ9XΦ5XL300 |
| Gambar 5-11 | PT5-08007 | 90467-08004 | klip Φ9 |
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |
| Gambar 6-1 | ASSY.PT15-07001 | 6B4-15710-00 | assy negarawan. |
| Gambar 6-2 | PT15-07002 | 6B4-15711-00 | pernyataan kasus |
| Gambar 6-3 | PT15-07002-1 | T/A | |
| Gambar 6-4 | PT15-07002-2 | T/A | |
| Gambar 6-5 | PT15-07003 | 63V-15764-00 | kerah1 |
| Gambar 6-6 | PT15-07004 | 68T-15764-00 | kerah2 |
| Gambar 6-7 | PT15-07005 | 63V-15714-00 | berkas drum |
| Gambar 6-8 | PT15-07006 | 63V-15741-00 | penggerak pawl |
| Gambar 6-9 | PT15-07007 | 63V-15713-00 | negara bagian musim semi |
| Gambar 6-10 | PT15-07008 | 63V-15716-00 | penggerak pelat |
| Gambar 6-11 | PT15-07009 | 63V-15705-01 | pawel penggerak pegas |
| Gambar 6-12 | PT15-07010 | 63V-15767-01 | musim semi |
| Gambar 6-13 | PT15-07011 | 68T-15784-00 | kembalinya musim semi |
| Gambar 6-14 | GB/T896D8 | 63V-15744-00 | lingkaran Φ8 |
| Gambar 6-15 | GB/T5783M616 | 90119-06023 | baut M6*16 |
| Gambar 6-16 | GB/T96.1D6 | mesin cuci Φ6.5XΦ16X1.5 | |
| Gambar 6-17 | PT15-07014 | kawat starter L1800mm | |
| Gambar 6-18 | PT15-07015 | 63V-15794-00 | sumbat |
| Gambar 6-19 | PT15-07016 | 63V-15748-00 | starter pendorong berhenti |
| Gambar 6-20 | PT15-07017 | 63V-15734-00 | kembalinya musim semi |
| Gambar 6-21 | GB/T91D1.212 | 91490-16018 | pasak pasak |
| Gambar 6-22 | PT15-07019 | 63V-15726-00 | mesin cuci rata |
| Gambar 6-23 | PT5-02010 | 6G1-15755-00 | pegangan starter |
| Gambar 6-24 | PT5-02010-1 | T/A | |
| Gambar 6-25 | PT5-02009 | 6G1-15779-00 | menutupi |
| Gambar 6-26 | PT15-07022 | 6B4-15758-10 | membimbing paus |
| Gambar 6-27 | PT15-07022-1 | T/A | |
| Gambar 6-28 | PT15-07023 | 6B4-15762-00 | segel karet2 |
| Gambar 6-29 | GB/T5782M635 | 97095-06035 | baut M6*35 |
| Gambar 6-30 | GB/T97.1D6 | 92995-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 6-31 | PT15-07026 | 90173-06009 | kacang persegi |
| Gambar 6-32 | GB/T5783M620 | 90119-06M82 | baut M6*20 |
| Gambar 6-33 | GB/T97.1D6 | 92995-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 6-34 | PT15-07033 | pipa | |
| Gambar 6-35 | PT15-07028 | 6J8-24311-00 | pipa bahan bakar1 |
| Gambar 6-36 | PT15-07029 | 6A0-15780-00 | peredam |
| Gambar 6-37 | PT15-07031 | 6AH-81995-40 | peringatan label |
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |

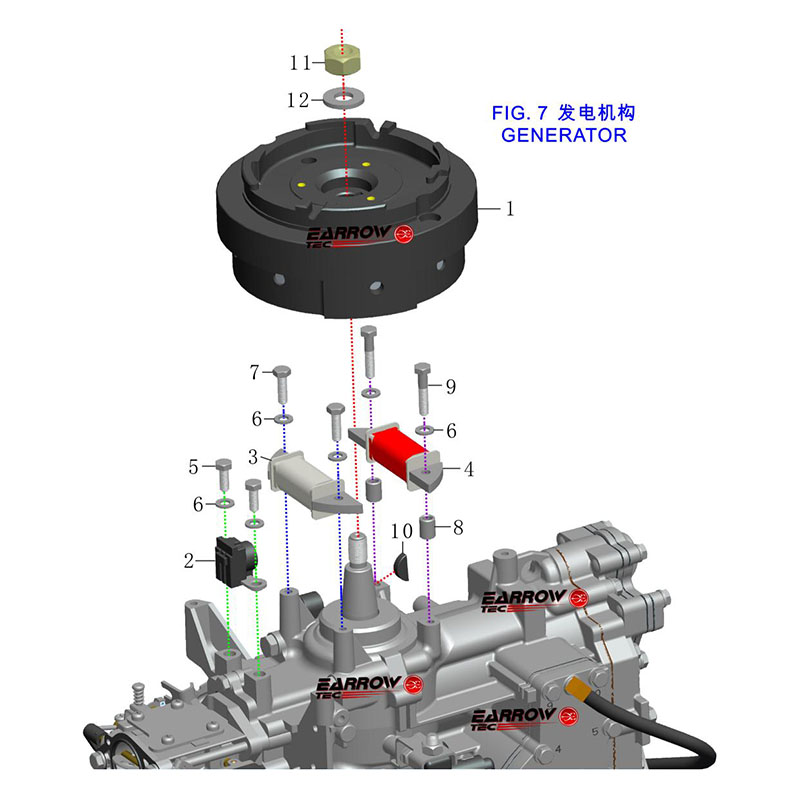

| Gambar 7-1 | PT15-08001 | 6B4-85550-01 | assy rotor |
| Gambar 7-2 | PT15-08002 | 6B4-85550-00 | pulsar kumparan |
| Gambar 7-3 | PT15-08003 | 6B4-85520-00 | muatan kumparan |
| Gambar 7-4 | PT15-08004 | 63V-85533-00 | pencahayaan koil |
| Gambar 7-5 | GB/T5783M616 | 97095-06016 | baut M6*16 |
| Gambar 7-6 | GB/T97.1D6 | 92995-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 7-7 | GB/T5783M620 | 97095-06020 | baut M6*20 |
| Gambar 7-8 | PT15-08010 | 90387-06M24 | kerah Φ6.5XΦ10X13.2 |
| Gambar 7-9 | GB/T5782M630 | 90119-06M40 | baut M6*30 |
| Gambar 7-10 | PT15-08013 | 90280-05013 | kunci woodruff |
| Gambar 7-11 | PT15-08014 | 90170-12066 | kacang M12 |
| Gambar 7-12 | PT15-08015 | 90201-12472 | piring pencuci |
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |
| Gambar 8-1 | PT15-09001 | 6B4-85540-03 | Unit CDI assy |
| Gambar 8-2 | PT3-04001 | 624-42542-00 | pipa |
| Gambar 8-3 | PT3-06003 | 61N-82317-00 | koil pengapian peredam |
| Gambar 8-4 | GB/T5782M630 | 90119-06M40 | baut M6*30 |
| Gambar 8-5 | GB/T96D6 | 90201-06M30 | mesin cuci Φ6.5XΦ16X1.5 |
| Gambar 8-6 | PT15-09015 | 6B4-82316-00 | koil pengapian braket |
| Gambar 8-7 | PT15-09018 | 90465-08M99 | penjepit |
| Gambar 8-8 | GB/T5783M616 | 97095-06014 | baut M6*16 |
| Gambar 8-9 | GB/T97.1D6 | 92995-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 8-10 | GB/T5783M610 | 97095-06010 | baut M6*10 |
| Gambar 8-11 | PT15-09004 | 6B4-85570-00 | koil pengapian assy |
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |

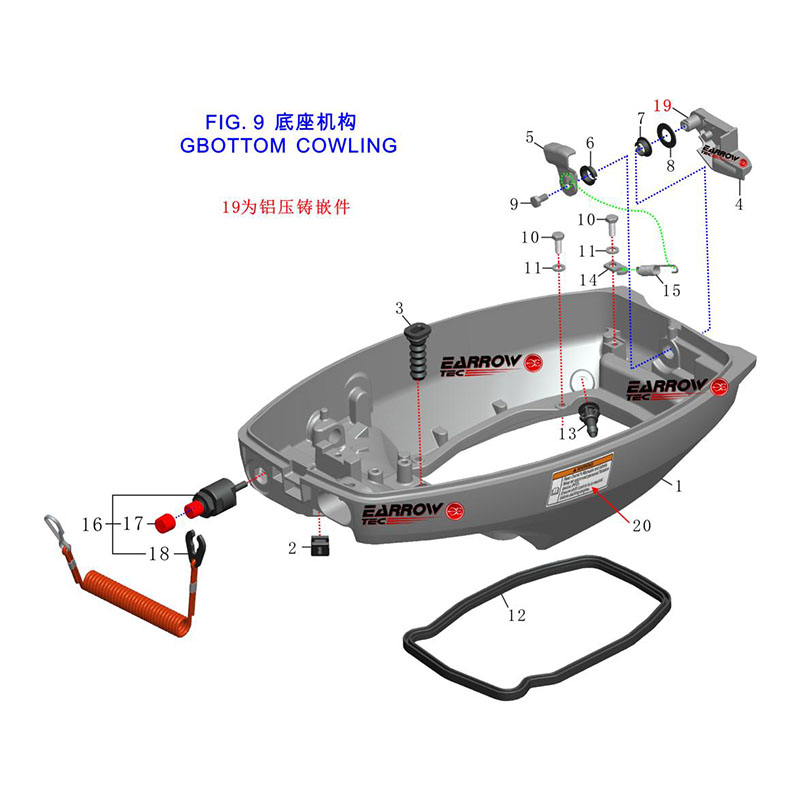

| Gambar 9-1 | PT15-10001 | 6B4-42711-00-4D | penutup mesin bagian bawah |
| Gambar 9-2 | PT15-10002 | 61N-26326-00 | grommet |
| Gambar 9-3 | 15-10003 | 61N-26326-00 | grommet |
| Gambar 9-4 | PT15-10004 | 6B4-42815-00-4D | penjepit tuas |
| Gambar 9-5 | PT15-10005 | 6B4-42816-00 | penjepit tuas |
| Gambar 9-6 | PT5-02015 | 90386-12M45 | semak-semak |
| Gambar 9-7 | PT5-02015 | 90386-12MA2 | semak-semak |
| Gambar 9-8 | GB/T955D12 | 90206-12052 | gelombang mesin cuci Φ12 |
| Gambar 9-9 | GB/T5783M612 | 97095-06014 | baut M6*12 |
| Gambar 9-10 | GB/T5783M616 | 97095-06014 | baut M6*16 |
| Gambar 9-11 | GB/T97.1D6 | 92995-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 9-12 | PT15-10012 | 6B4-42716-00 | segel karet1 |
| Gambar 9-13 | PT15-10013 | 6BL-44391-00 | selang puting |
| Gambar 9-14 | PT15-10014 | 66T-43144-00 | pegas kait |
| Gambar 9-15 | PT15-10016 | 90506-18009 | ketegangan pegas |
| Gambar 9-16 | PF4-12001 | 6E9-82575-02 | saklar penghenti mesin assy. |
| Gambar 9-17 | PT30-11022 | 689-8257Y-00 | topi |
| Gambar 9-18 | PT5-07008-1 | 682-82556-00 | sumbat |
| Gambar 9-19 | PT15-10004-1 | T/A |
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |
| Gambar 10-1 | PT15-11025 | menangani kemudi assy | |
| Gambar 10-2 | PT15-11001 | 6B4-42111-00-4D | menangani kemudi |
| Gambar 10-3 | PT15-11002 | 90381-35001 | semak padat |
| Gambar 10-4 | PT15-11003 | 90381-20001 | semak padat |
| Gambar 10-5 | PT30-12005 | 90201-28013 | piring pencuci |
| Gambar 10-6 | GB/T955D27 | 90206-28001 | gelombang mesin cuci Φ27 |
| Gambar 10-7 | PT15-11006 | 6B4-42131-00-4D | penutup pegangan kemudi |
| Gambar 10-8 | GB /T5782M845 | 97095-018045 | baut M8*45 |
| Gambar 10-9 | GB/T97.1D8 | 92995-08600 | mesin cuci Φ8.5XΦ16X1.5 |
| Gambar 10-10 | GB/T5783M820 | 97075-08020 | baut M8*20 |
| Gambar 10-11 | PT15-11011 | 6B4-42125-00 | penyesuaian gesekan baut |
| Gambar 10-12 | PT15-11012 | 6B4-42126-00 | pegangan pegangan kemudi gesekan |
| Gambar 10-13 | GB/T 6172.2M6 | 90185-06062 | mur mengunci sendiri |
| Gambar 10-14 | GB/T91D212 | 91490-16018 | pasak pasak |
| Gambar 10-15 | 15-11015 | 6B4-42119-00 | pegangan pegangan kemudi |
| Gambar 10-16 | PT5-12012 | 6G1-42137-10 | indikator throttle |
| Gambar 10-17 | GB/T827D25 | 90269-02M09 | paku keling Φ2X5 |
| Gambar 10-18 | PT3-06014 | 6G1-42177-00 | pegangan karet |
| Gambar 10-19 | GB/T820M525 | 90149-05M13 | sekrup M5*25 |
| Gambar 10-20 | PT3-03047 | 92903-10600 | piring pencuci |
| Gambar 10-21 | PT5-08008 | 90501-23215 | kompresi pegas |
| Gambar 10-22 | PT3-02026 | 90386-08032 | semak-semak |
| Gambar 10-23 | PT15-11023 | 6B4-42136-00 | tuas throttle |
| Gambar 10-24 | PT15-11023-1 | T/A | |
| Gambar 10-25 | PT15-11024 | 6B4-26301-00 | kabel throttle assy |
| Gambar 10-26 | PT30-12025 | 6E0-83627-41 | label hati-hati7 |
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |
| Gambar 11-1 | PT15-12001 | 63V-14497-02 | tinggal kabel throttle |
| Gambar 11-2 | PT15-12002 | 90387-06M50 | kerah Φ6,5*Φ12*49 |
| Gambar 11-3 | GB/T5782M665 | 95895-06065 | baut M6*65 |
| Gambar 11-4 | GB/T97.1D6 | 92995-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 11-5 | GB/T5783M612 | 97095-06014 | baut M6*12 |
| Gambar 11-6 | PT15-12006 | 6B4-41283-00 | tuas akselerasi bebas |
| Gambar 11-7 | PT15-12007 | 90508-20M38 | torsi pegas |
| Gambar 11-8 | PT15-12008 | 63V-41211-00 | tautan dipercepat |
| Gambar 11-9 | PT15-12009 | 6J8-41262-00 | tuas tersedak sendi |
| Gambar 11-10 | PT15-12010 | 6B4-41638-00 | katrol |
| Gambar 11-11 | PT15-12011 | 6B4-44111-00-4D | menangani perpindahan gigi |
| Gambar 11-12 | PT15-12011-1 | T/A | |
| Gambar 11-13 | PT15-12012 | 6B4-44121-00 | batang pemindah tuas |
| Gambar 11-14 | GB/T845ST4219 | 97780-40520 | sekrup sadap ST4.2X19 |
| Gambar 11-15 | PT15-12014 | 6B4-44125-00 | batang pemindah tuas |
| Gambar 11-16 | PT15-12016 | 6B4-44116-00 | musim semi |
| Gambar 11-17 | GB/T5783M616 | 90109-06M80 | baut M6*16 |
| Gambar 11-18 | PT15-12018 | 6B4-44143-00 | pergeseran batang |
| Gambar 11-19 | GB/T41M6 | 95380-06600 | mur segi enam M6 |
| Gambar 11-20 | PT30-13047 | 61N-44146-00 | batang pemindah konektor |
| Gambar 11-21 | PT15-12021 | 6B4-41662-00 | braket2 |
| Gambar 11-22 | GB/T5783M625 | 90119-06M17 | baut M6*25 |
| Gambar 11-23 | PT15-12023 | 6B4-15746-00 | lengan |
| Gambar 11-24 | PT15-12024 | 90387-06M06 | kerah Φ6,5*Φ8*11 |
| Gambar 11-25 | PT15-12025 | 90508-08M39 | torsi pegas |
| Gambar 11-26 | GB/T5783M620 | 97095-06020 | baut M6*20 |
| Gambar 11-27 | PT15-12028 | 6L2-15747-00 | link |
| Gambar 11-28 | PT4-14030 | 6J8-41262-00 | tuas tersedak sendi |
| Gambar 11-29 | PT15-12030 | 6B4-15770-00 | penghentian starter kabel comp |

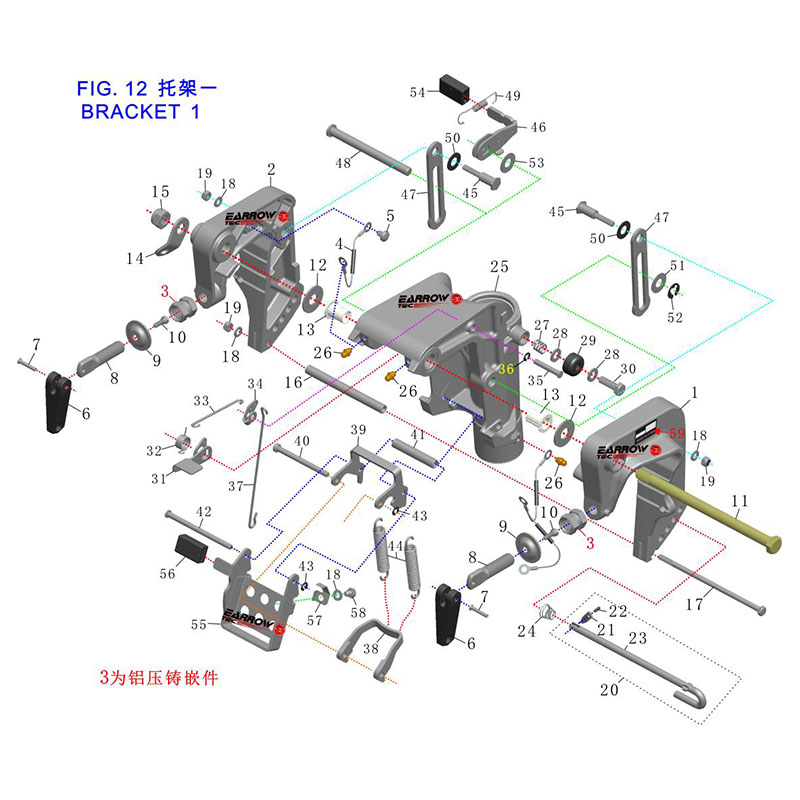

| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |
| Gambar 12-1 | PT15-13001 | 682-43111-05-4D | penjepit braket1 |
| Gambar 12-2 | PT15-13002 | 682-43112-05-4D | penjepit braket2 |
| Gambar 12-3 | PT15-13002-1 | T/A | |
| Gambar 12-4 | PT15-13003 | 6E5-82148-00 | kawat timah4 |
| Gambar 12-5 | GB/T822M68 | 97885-06008 | kepala panci sekrup M6*8 |
| Gambar 12-6 | PT5-02028 | 6E0-43118-01 | menangani penjepit jendela di atas pintu |
| 15-13063 | |||
| Gambar 12-7 | GB/T1015D424 | 90243-04M01 | pin Φ4*24 |
| Gambar 12-8 | PT30-15005 | 90149-14030 | sekrup M14*2*48*L70 |
| Gambar 12-9 | PT5-05015 | 648-43114-01 | penjepit bantalan jendela di atas pintu |
| Gambar 12-10 | PT5-03040-1 | 90109-06M12 | baut M5*10*13.8 |
| Gambar 12-11 | PT15-13009 | 90101-12013 | baut |
| Gambar 12-12 | PT15-13010 | 90201-12018 | pelat pencuci Φ13*Φ32*2 |
| Gambar 12-13 | PT15-13011 | 90381-12001 | semak padat |
| Gambar 12-14 | PT15-13012 | 6B4-43113-00 | braket penjepit pelat |
| Gambar 12-15 | GB/6185M121.25 | 95780-12300 | mur pengunci otomatis M12*1,25 |
| Gambar 12-16 | PT15-13014 | 90387-06M13 | kerah Φ6.2*Φ10.2*108.4 |
| Gambar 12-17 | GB/T5782M6145 | 90101-06M29 | baut M6*145 |
| Gambar 12-18 | GB/T97.1D6 | 92995-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 12-19 | GB/6186M6 | 95380-06700 | mur pengunci sendiri M6 |
| Gambar 12-20 | PT15-13018 | 689-43160-00 | batang miring assy |
| Gambar 12-21 | PT5-05018 | 689-43165-00 | kunci kemiringan pelat |
| Gambar 12-22 | GB/T879.2D38 | 91690-30008 | pegas pin Φ3X8 |
| Gambar 12-23 | PT15-13018-1 | T/A | batang miring |
| Gambar 12-24 | PT30-15022 | 90502-10M07 | pegas berbentuk kerucut |
| Gambar 12-25 | 15-13022 | 682-43311-07-4D | braket putar |
| Gambar 12-26 | PT5-03038 | 93700-06M03 | minyak puting |
| Gambar 12-27 | PT15-13024 | 90501-18M00 | kompresi pegas |
| Gambar 12-28 | GB/T97.1D8 | 92990-08600 | mesin cuci Φ8.5XΦ16X1.5 |
| Gambar 12-29 | PT15-13026 | 676-43373-00 | peredam segel |
| Gambar 12-30 | GB/T5783M830 | 97075-08025 | baut M8*30 |
| Gambar 12-31 | PT15-13028 | 6B4-43631-00 | kemiringan tuas |
| Gambar 12-32 | PT15-13029 | 90508-14018 | torsi pegas |
| Gambar 12-33 | PT15-13030 | 682-43616-00 | kunci kemiringan batang |
| Gambar 12-34 | PT15-13031 | 682-43641-01 | kemiringan tuas |
| Gambar 12-35 | PT15-13032 | 90249-06M23 | pin Φ6X35.3 |
| Gambar 12-36 | GB/T896D5 | 99080-05600 | lingkaran Φ5 |
| Gambar 12-37 | PT15-13034 | 682-43617-00 | kunci kemiringan batang |
| Gambar 12-38 | PT15-13035 | 682-43614-01 | kunci kemiringan pelat 1 |
| Gambar 12-39 | PT15-13036 | 682-43615-02 | kunci kemiringan pelat 2 |
| Gambar 12-40 | PT15-13037 | 682-42611-01 | kunci kemiringan poros Φ6X70.3 |
| Gambar 12-41 | PT15-13038 | 90387-06M20 | kerah Φ6.5*Φ10.5*58.2 |
| Gambar 12-42 | PT15-13039 | 682-43659-01 | kunci poros terbalik Φ6X88.8 |
| Gambar 12-43 | GB/T896D5 | 99080-05600 | lingkaran Φ5 |
| Gambar 12-44 | PT15-13041 | 90506-26M01 | ketegangan pegas |
| Gambar 12-45 | PT15-13042 | 90109-06M05 | baut |
| Gambar 12-46 | PT15-13043 | 6B4-43181-00 | penghenti kemiringan tuas1 |
| Gambar 12-47 | PT15-13044 | 6B4-43627-00 | sumbat |
| Gambar 12-48 | PT15-13045 | 90249-10003 | pin Φ9.8X110 |
| Gambar 12-49 | PT15-13046 | 90506-12002 | ketegangan pegas |
| Gambar 12-50 | GB/T955D10 | 90206-10M24 | gelombang pencuci Φ10.5*Φ21*3 |
| Gambar 12-51 | PT15-13050 | 90202-10M56 | mesin cuci Φ10.5XΦ23.5X1 |
| Gambar 12-52 | GB/T896D9 | 99080-09600 | lingkaran Φ9 |
| Gambar 12-53 | PT15-13050 | 90202-10M56 | mesin cuci Φ10.5XΦ23.5X1 |
| Gambar 12-54 | PT15-13052 | 682-43318-01 | menutupi |
| Gambar 12-55 | PT15-13053 | 6B4-43681-00 | tuas penggerak air dangkal1 |
| Gambar 12-56 | PT15-13054 | 682-43318-01 | menutupi |
| Gambar 12-57 | PT15-13055 | 682-43643-00 | musim semi |
| Gambar 12-58 | GB/T5783M68 | 97095-06008 | baut M6*8 |
| Gambar 12-59 | PT30-15001-1 | ||
| Gambar 12-60 | 15-13022-1 | ||
| Gambar 12-61 | 15-13063 |
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |
| Gambar 13-1 | PT15-14001 | 648-42528-00 | gesekan pelat |
| Gambar 13-2 | PT15-14002 | 6B 4-42511-00-4D | braket kemudi |
| Gambar 13-3 | PT5-03002 | 93606-12019 | paku kayu |
| Gambar 13-4 | GB/T5783M625 | 90119-06M17 | baut M6*25 |
| Gambar 13-5 | GB/T97.1D6 | 92995-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 13-6 | PT15-14006 | 682-42521-00-94 | poros kemudi poros |
| Gambar 13-7 | PT15-14007 | 90209-52M01 | mesin cuci |
| Gambar 13-8 | PT15-14008 | 682-42537-00 | poros poros busing |
| Gambar 13-9 | PT15-14009 | 90386-40M09 | semak-semak |
| Gambar 13-10 | PT15-14010 | 93210-40M10 | Cincin-O |
| Gambar 13-11 | PT15-14011 | 90386-40M08 | semak-semak |
| Gambar 13-12 | PT15-14012 | 682-44514-01-94 | pasang peredam sisi atas |
| Gambar 13-13 | GB /T5782M8110 | 90101-08M30 | baut M8*110 |
| Gambar 13-14 | GB/T97.1D8 | 92995-08600 | mesin cuci Φ8.5XΦ16X1.5 |
| Gambar 13-15 | PT15-14017 | 90201-08M13 | pelat mesin cuci Φ8.5XΦ32X2.5 |
| Gambar 13-16 | PT15-14018 | 90202-13M02 | piring pencuci |
| Gambar 13-17 | GB/6186M8 | 90185-08057 | mur pengunci sendiri M8 |
| Gambar 13-18 | PT15-14020 | 682-44522-01 | segel |
| Gambar 13-19 | PT15-14021 | 90465-11M52 | penjepit |
| Gambar 13-20 | PT15-14022 | 682-44521-01 | segel |
| Gambar 13-21 | PT15-15020 | 682-44532-00 | sumbat dudukan atas |
| Gambar 13-22 | PT15-14023 | 682-44551-02-4D | perumahan karet dudukan bawah1 |
| Gambar 13-23 | PT15-14024 | 682-44552-02-5D | perumahan karet dudukan bawah2 |
| Gambar 13-24 | GB /T5782M885 | 90119-08M45 | baut M8*85 |
| Gambar 13-25 | GB /T5782M855 | 97575-08555 | baut M8*55 |
| Gambar 13-26 | GB/T6170M8 | 95380-08600 | kacang M8 |
| Gambar 13-27 | PT15-14028 | 682-44557-00 | pasang peredam depan bawah |
| Gambar 13-28 | PT15-14029 | 682-44555-00 | pasang peredam di sisi bawah |

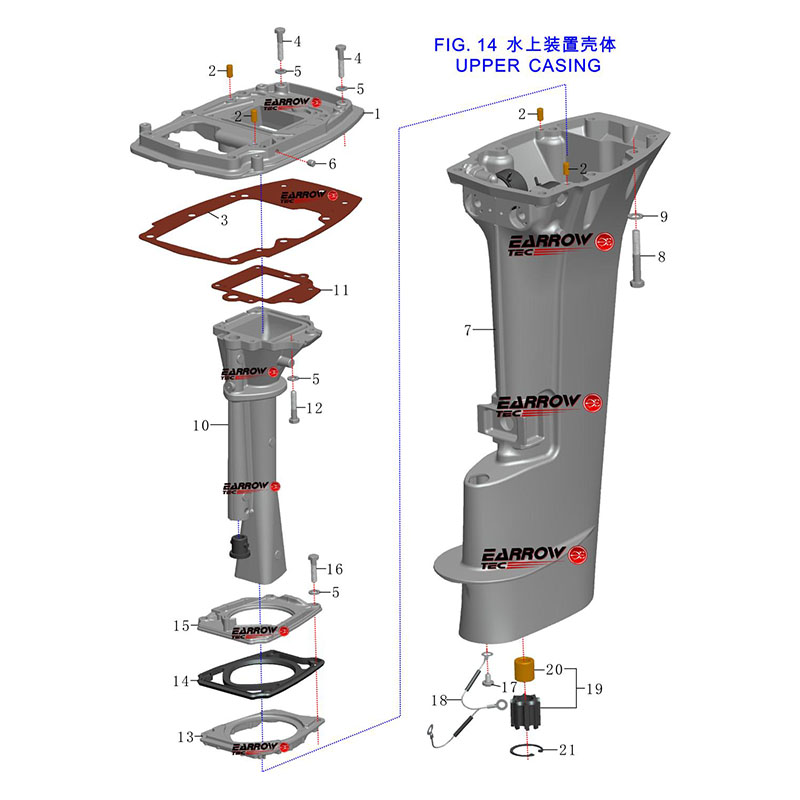

| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |
| Gambar 14-1 | PT15-15001 | 6B4-41137-00-CA | panduan knalpot |
| Gambar 14-2 | PT5-03002 | 93606-12019 | paku kayu |
| Gambar 14-3 | PT15-15003 | 682-45113-A2 | paking selubung atas |
| Gambar 14-4 | GB/T5782M630 | 90119-06M95 | baut M6*30 |
| Gambar 14-5 | GB/T97.1D6 | 92995-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 14-6 | PT15-15030 | ||
| Gambar 14-7 | PT15-15006 | 682-45111-05-4D | casing bagian atas |
| PT15-15006-1 | 682-45111-15-4D | casing bagian atas | |
| Gambar 14-8 | GB /T5782M850 | 97575-08550 | baut M8*50 |
| Gambar 14-9 | GB/T97.1D8 | 92995-08600 | mesin cuci Φ8.5XΦ16X1.5 |
| Gambar 14-10 | PT15-15008 | 6B4-41131-00-CA | berjenis ext1 |
| Gambar 14-11 | PT15-15009 | 682-41133-A0 | paking manifold buang |
| Gambar 14-12 | GB/T5783M620 | 97095-06020 | baut M6*20 |
| Gambar 14-13 | PT15-15012 | 682-45126-01-CA | peredam segel pelat |
| Gambar 14-14 | PT15-15013 | 682-45127-00 | segel |
| Gambar 14-15 | PT15-15014 | 682-41116-00-CA | pelindung |
| Gambar 14-16 | GB/T5783M625 | 90119-06M17 | baut M6*25 |
| Gambar 14-17 | GB/T822M68 | 97885-06008 | kepala panci sekrup M6*8 |
| Gambar 14-18 | PT15-15017 | 6E7-82127-00 | kawat timah2 |
| Gambar 14-19 | PT15-15018 | 6B4-45318-00 | poros penggerak busing |
| Gambar 14-20 | PT15-15018-1 | T/A | |
| Gambar 14-21 | GB/T893.2D32 | 93420-30042 | lingkaran Φ32 |
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |
| Gambar 15-1 | ASSY.PT15-16001 | 6B4-45300-01-4D | unit bawah assy |
| Gambar 15-2 | PT15-16002 | 6E8-45311-01-4D | casing lebih rendah |
| Gambar 15-3 | PT15-16003 | 6B4-44150-00 | geser kamera assy |
| Gambar 15-4 | PT15-16004 | 682-44147-00 | batang pemindah boot |
| Gambar 15-5 | PT15-16003-1 | T/A | |
| PT15-16003-5 | |||
| Gambar 15-6 | GB/T879.2D2.514 | T/A | pegas pin Φ2.5X14 |
| Gambar 15-7 | PT30-18062-3 | T/A | |
| Gambar 15-8 | PT15-16003-2 | T/A | |
| Gambar 15-9 | PT15-16005 | 682-44176-00 | mengurung |
| Gambar 15-10 | GB/T845ST4810 | 97780-50110 | sekrup sadap ST4.8X10 |
| Gambar 15-11 | PT15-16007 | 93315-314V8 | bantalan NSK F-1420 |
| Gambar 15-12 | PT15-16008 | 6E7-45536-00 | poros penggerak selongsong |
| Gambar 15-13 | PT15-16009 | 90209-14011 | mesin cuci Φ14.1XΦ28.8X3 |
| Gambar 15-14 | PT15-16010 | 6E8-45587-10 | shim（T：1,2mm） |
| Gambar 15-15 | PT15-16011 | 90201-15017 | piring pencuci |
| Gambar 15-16 | PT15-16043 | 6E7-45560-01 | gigi1(27T) |
| Gambar 15-17 | 4T-30205 | 93330-00005 | bantalan Φ25*Φ52*16,25 |
| Gambar 15-18 | PT5-03054 | 90340-08002 | pasang sekrup lurus |
| Gambar 15-19 | PT5-14028 | 90340-08020 | paking |
| Gambar 15-20 | PT5-03054-1 | 688-45341-10 | sumbat saluran pembuangan |
| Gambar 15-21 | PT15-16016 | 93604-08062 | pin pasak Φ4*8 |
| Gambar 15-22 | PT5-03002 | 93606-12019 | paku kayu |
| Gambar 15-23 | PT15-16017 | 682-45376-01 | peredam segel pemandu |
| Gambar 15-24 | PT15-17010 | 682-45375-01 | segel peredam |
| Gambar 15-25 | ASSY.PT15-16018 | 682-44300-40 | assy pompa air perumahan |
| Gambar 15-26 | PT15-16018-1 | T/A | pompa air perumahan |
| Gambar 15-27 | PT15-16019 | 682-44312-00 | tutupi rumah pompa air |
| Gambar 15-28 | GB/T845ST4212 | 97780-40112 | sekrup sadap ST4.2X12 |
| Gambar 15-29 | PT15-16021 | 682-44365-00 | segel air peredam1 |
| Gambar 15-30 | PT15-16022 | 682-44322-41 | masukkan kartrid |
| Gambar 15-31 | PT15-16023 | 682-44352-03 | pendorong |
| Gambar 15-32 | PT15-16024 | 90280-03005 | kunci woodruff |
| Gambar 15-33 | PT15-16025 | 682-44315-A0 | pompa air paking |
| Gambar 15-34 | PT15-16026 | 682-44323-40 | kartrid pelat luar |
| Gambar 15-35 | PT15-16027 | 682-45344-00 | tutup segel minyak |
| Gambar 15-36 | GB/T5782M645 | 97095-06045 | baut M6*45 |
| Gambar 15-37 | GB/T97.1D6 | 92995-06600 | mesin cuci Φ6.5XΦ12X1.5 |
| Gambar 15-38 | PT15-16029 | 682-44328-00 | piring |
| Gambar 15-39 | PT15-16030 | 6E7-45331-00-CA | bantalan perumahan |
| Gambar 15-40 | PT15-16031 | 626-45316-019 | poros penggerak busing |
| Gambar 15-41 | PT15-16032 | 93101-20001 | segel minyak Φ20*Φ30*6 |
| Gambar 15-42 | PT15-16033 | 683-45315-A0 | pengepakan casing bawah |
| Gambar 15-43 | PT5-03002 | 93606-12019 | paku kayu |
| Gambar 15-44 | PT15-16035 | 683-44362-01 | air tabung2 |
| Gambar 15-45 | PT15-16036 | 683-44365-01 | segel air peredam1 |
| Gambar 15-46 | PT15-16037 | 683-44373-00 | set tabung air piring |
| Gambar 15-47 | GB/T5783M610 | 97095-06010 | baut M6*10 |
| Gambar 15-48 | PT15-16039 | 6E7-44366-00 | segel air peredam2 |
| Gambar 15-49 | PT15-16040 | 6B4-45501-00 | kompi poros penggerak |
| PT15-16040-1 | 6B4-45501-10 | kompi poros penggerak | |
| Gambar 15-50 | PT15-16041 | 63V-45551-00 | sayap（13T） |
| Gambar 15-51 | PT15-16042 | 90170-08M06 | mur M8*1,25*5 |
| Gambar 15-52 | PT15-16044 | 6E7-45571-00 | gigi2(27T) |
| Gambar 15-53 | PT15-16046 | 626-45577-00 | piring pencuci |
| Gambar 15-54 | PT15-16047 | 683-45611-00 | poros baling-baling |
| Gambar 15-55 | PT15-16048 | 650-45635-00 | pergeseran pendorong |
| Gambar 15-56 | PT15-16049 | 682-45631-00 | anjing kopling |
| Gambar 15-57 | PT30-18046 | 90250-05010 | pin strsight Φ5*30 |
| Gambar 15-58 | PT30-18047 | 648-45633-00 | pin silang cincin |
| Gambar 15-59 | 30-18048 | 90501-14M06 | kompresi pegas |
| Gambar 15-60 | PT15-16053 | 683-45361-02-4D | tutup selubung bawah |
| Gambar 15-61 | 15-16054 | 93306-00501 | bantalan Φ25*Φ47*12 |
| Gambar 15-62 | 93315-317U2 | bantalan Φ17*Φ23*12 | |
| Gambar 15-63 | PT15-16056 | 93101-17001 | segel minyak Φ17*Φ30*6 |
| Gambar 15-64 | PT15-16057 | 93210-57M09 | Cincin-O |
| Gambar 15-65 | PT15-16058 | 93210-56M08 | Cincin-O |
| Gambar 15-66 | GB/T5783M625 | 90119-06M17 | baut M6*25 |
| Gambar 15-67 | |||
| Gambar 15-68 | 15-16053-1 |
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |
| Gambar 16-1 | PT15-17001 | 626-44365-01 | segel air peredam |
| Gambar 16-2 | PT15-17002 | 682-44361-01 | tabung air1 |
| PT15-17002-1 | 682-44361-11 | tabung air1 | |
| Gambar 16-3 | PT15-17004 | 97575-08535 | flensa baut M10*35 |
| Gambar 16-4 | GB/T97.1D8 | 92995-08600 | mesin cuci Φ8.5XΦ16X1.5 |
| Gambar 16-5 | PT15-17005 | 6E7-45214-00 | menutupi saluran masuk air |
| Gambar 16-6 | GB/T97.1D5 | 92990-05600 | mesin cuci Φ5XΦ10X1 |
| Gambar 16-7 | GB/T822M512 | 97880-05012 | kepala panci sekrup M5*12 |
| Gambar 16-8 | PT15-17007 | 6B4-45251-00 | anoda |
| Gambar 16-9 | GB/T5783M620 | 97095-06020 | baut M6*20 |
| Gambar 16-10 | GB/T861.2D6 | 92990-06300 | gigi bagian dalam mesin cuci Φ6,5*Φ12*0,6*1,5 |
| Gambar 16-11 | PT15-17011 | 6E7-45987-01 | pengatur jarak1 |
| Gambar 16-12 | PT15-17012 | 90201-10M01 | mesin cuci biasa Φ10.5*Φ30*2.5 |
| Gambar 16-13 | PT15-17013 | 90171-10M01 | kastil kacang M10*1.25 |
| Gambar 16-14 | GB/T91D2.520 | 91490-30020 | pasak pasak |
| Gambar 16-15 | PT15-17015 | 683-45941-00 | baling-baling |
| REF. TIDAK. | Bagian Earrow No. | YAMAHA OEM Bagian No. | KETERANGAN |
| Gambar 17-1 | PT30-20001 | 6YJ-24201-00 | tangki bahan bakar assy |
| Gambar 17-2 | PT30-20008 | 61J-24306-03 | pipa bahan bakar comp1 |
| Gambar 17-3 | PT30-20020 | ||
| Gambar 17-4 | PT15-18001 | ||
| Gambar 17-5 | PT15-02030 | 94702-00160 | busi busi （NGKBR8HS） |
| Gambar 17-6 | PT5-14027 | ||
| Gambar 17-7 | PT5-07008-1 | 682-82556-00 | sumbat |
| Gambar 17-8 | PT15-18002 | ||
| Gambar 17-9 | PT15-18003 | ||
| Gambar 17-10 | PT15-18004 | ||
| Gambar 17-11 | PT5-13004 | ||
| Gambar 17-12 | |||
| Gambar 17-13 | 15-18004-X |
Suku cadang kami banyak digunakan oleh :
Bengkel perbaikan kapalDibandingkan dengan suku cadang asli dari merek seperti Yamaha, suku cadang kami yang kompatibel menawarkan:
Biaya lebih rendah
