PT30 Outboard Engine Spare Parts For Heavy-Duty & Commercial Use

Reliable and cost-effective spare parts for high-demand marine applications.

Home » Wholesale Spare Parts » Spare Parts PT30

Spare Parts

Our PT30 spare parts catalog includes both OEM Yamaha parts and compatible replacement components under the Earrow brand. Whether you are looking for routine maintenance items, replacement propellers, carburetor components, ignition systems, or lower unit parts, our catalog ensures you can quickly match the correct part number and specifications.

Our PT30 outboard engine spare parts are designed for commercial use and high-load performance.

They are widely used in:

Commercial fishing boats
Transport vessels
Heavy-duty marine operations

We provide reliable and cost-effective spare parts for customers who require durability, stability, and continuous operation.

Built for Heavy-Duty Performance

Designed for high-load engine operation
Durable components for long working hours
Stable performance in tough marine environments
Suitable for frequent use and commercial demand

Applications：

Our PT30 spare parts are ideal for:

Commercial fishing operations
Coastal transport boats
Workboats and utility vessels
Marine service providers

Top Cowling Assy.

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.1-1	ASSY.	69S-42610-20-4D	top cowling assy
FIG.1-2	PT30-01007	69P-42613-00-4D	molding air duct
FIG.1-3	PT30-01007-1	N/A	bolt Φ84.5M6*15
FIG.1-4	PT30-01001		top cowling
FIG.1-5	GB/T873D412	90266-04M01	rivet Φ4X12
FIG.1-6	GB/T873D408	90266-04M00	rivet Φ4X8
FIG.1-7	PT30-01003	689-42647-00	holder clamp band
FIG.1-8	PT30-01005	6G0-42651-02	hook
FIG.1-9	GB/T6177.1M6	90179-06M24	nut M6
FIG.1-10	PT30-01002	6G0-42615-00	seal
FIG.1-11	PT30-01011	61R-W0070-10	graphic set
FIG.1-12	PT30-01015	6E0-44191-11	indicator shift
FIG.1-13	PT5-12016-1		Graphic two stroke
FIG.1-14	PT30-01012	61R-42677-00	graphic front
FIG.1-15	PT30-01013	61R-42678-10	graphic rear

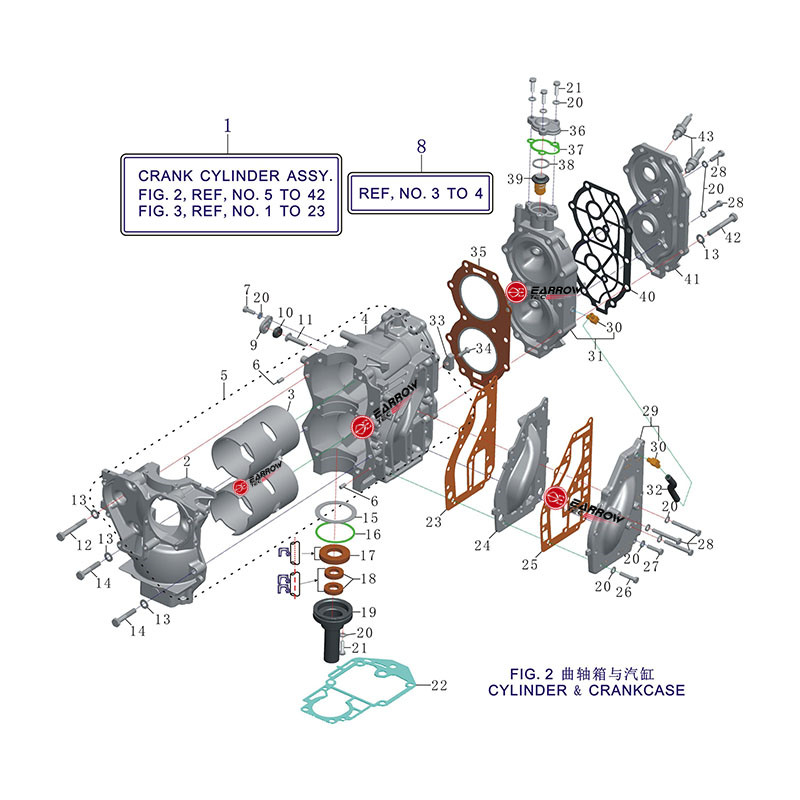

CYLINDER & CRANKCASE

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.2-1	ASSY.	69P-W0090-00-1S	crank cylinder assy
FIG.2-2	PT30-02002-1	N/A
FIG.2-3	PT30-02002-3	N/A	61N-10935-00
FIG.2-4	PT30-02002-2	N/A
FIG.2-5	PT30-02002(ASSY.)	69P-15100-00-1S	crankcase assy .
FIG.2-6	PT5-03002	93606-12019	pin dowel
FIG.2-7	GB/T5783M616	97013-06016	bolt M6*16
FIG.2-8	PT30-02002-5	N/A
FIG.2-9	PT30-02013	6H3-11327-00-1S	cover anode
FIG.2-10	PT30-02014	6H3-11328-00	grommet anode
FIG.2-11	PT30-02012	6J8-11325-00	anode
FIG.2-12	GB /T5782M860	90119-08M65	bolt M8*60
FIG.2-13	GB/T97.1D8	92900-08600	washer Φ8.5XΦ16X1.5
FIG.2-14	GB /T5782M845	90119-08009	bolt M8*45
FIG.2-15	PT30-02040	/	gaskete upper casing
FIG.2-16	PT30-02009	93210-58M21	O-ring Φ56*Φ3.2
FIG.2-17	PT30-02007	93102-25008	oil seal Φ25Φ488
FIG.2-18	PT30-02008	93101-16001	oil seal Φ16Φ306
FIG.2-19	PT30-02006	689-15396-01-5B	hosing oil seal
FIG.2-20	GB/T97.1D6	920903-06600	washer Φ6.5XΦ12X1.5
FIG.2-21	GB/T5783M620	97095-06022	bolt M6*20
FIG.2-22	PT30-02041	689-45113-A1	gasket
FIG.2-23	PT30-02032	6K8-41122-A1	gaskete xhaust inner cover
FIG.2-24	PT30-02031	6K8-41121-00-1S	inner cover exhaust
FIG.2-25	PT30-02036	6K8-41124-A1	gaskete xhaust outer cover
FIG.2-26	GB/T5782M630	90119-06MA4	bolt M6*30
FIG.2-27	GB/T5783M625	90119-06MA3	bolt M6*25
FIG.2-28	GB/T5782M650	90119-06MA0	bolt M6*50
FIG.2-29	PT30-02033	61N-41123-00-1S	outer cover exhaust
FIG.2-30	PF4-04012	676-11372-00	nipple hose
FIG.2-31	PT30-02019	61N-11111-01-1S	head cylinder1
FIG.2-32	PT30-02035	90445-10M41	hose（L105）
FIG.2-33	PT30-02017	689-11325-00	anode
FIG.2-34	GB/T819.1M620	90151-06M02	screw countersunk
FIG.2-35	PT30-02021	61N-11181-A1	gasket cylinder head
FIG.2-36	PT30-02028	655-12413-01-1S	cover thermostat
FIG.2-37	PT30-02029	655-12141-A1	gasket cover
FIG.2-38	PT30-02027	90201-21567	washer plata Φ21.6Φ27.21.9
FIG.2-39	PT3-14003	6E5-12411-02	thermostat
FIG.2-40	PT30-02023	61T-11193-A1	gasket head cover
FIG.2-41	PT30-02022	61N-11191-01-1S	cover cylinder head
FIG.2-42	GB /T5782M865	90119-06015	bolt M8*65
FIG.2-43	PT30-02042	94702-00217	plug spark

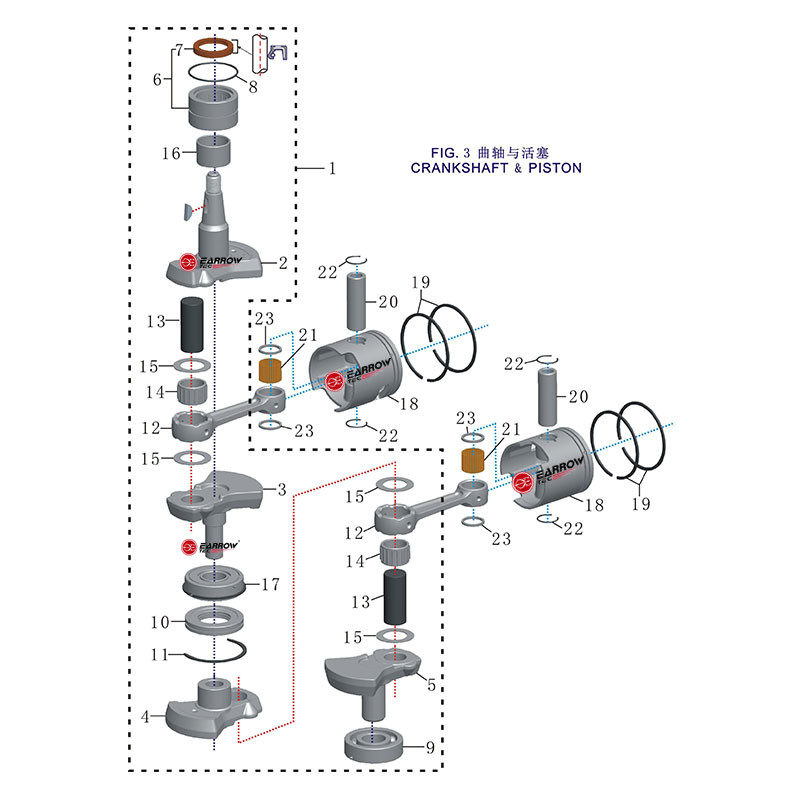

CRANKSHAFT & PISTON

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.3-1	PT30-03001	69P-11400-00	crankshaft assy.
FIG.3-2	PT30-03002	69P-11412-00	crank1
FIG.3-3	PT30-03003	61N-11422-00	crank2
FIG.3-4	PT30-03004	61N-11432-00	crank3
FIG.3-5	PT30-03005	61N-11442-00	crank4
FIG.3-6	PT30-03006	93399-99951	bearing
FIG.3-7	PT30-03007	93102-32M07	oil seal Φ32Φ427
FIG.3-8	PT30-03008	93210-46M16	O ring Φ45.2Φ52.4
FIG.3-9	6305E12	93306-305U3	bearing Φ25Φ6217
FIG.3-10	PT30-03010	61N-11515-00	seal labyrinth
FIG.3-11	PT30-03011	93440-62057	circlip
FIG.3-12	PT30-03012	689-11651-00	rod connecting
FIG.3-13	PT30-03013	689-11681-01	pin crank1
FIG.3-14	PT30-03014	93310-62406	bearing
FIG.3-15	PT30-03015	90209-24M03	washer
FIG.3-16	PT30-03016	90387-32002	collar
FIG.3-17	305X50NW3	93390-00009	bearing Φ25Φ6217
FIG.3-18	PT30-03018	61N-11631-00-95	piston
FIG.3-19	PT30-03019	61N-11603-00	piston ring set
FIG.3-20	PT30-03020	689-11633-00	pin piston
FIG.3-21	PT30-03021	93602-20M02	pin dowel
FIG.3-22	PT30-03022	688-11634-00	clip piston pin
FIG.3-23	PT30-03023	90201-20M27	washer plate

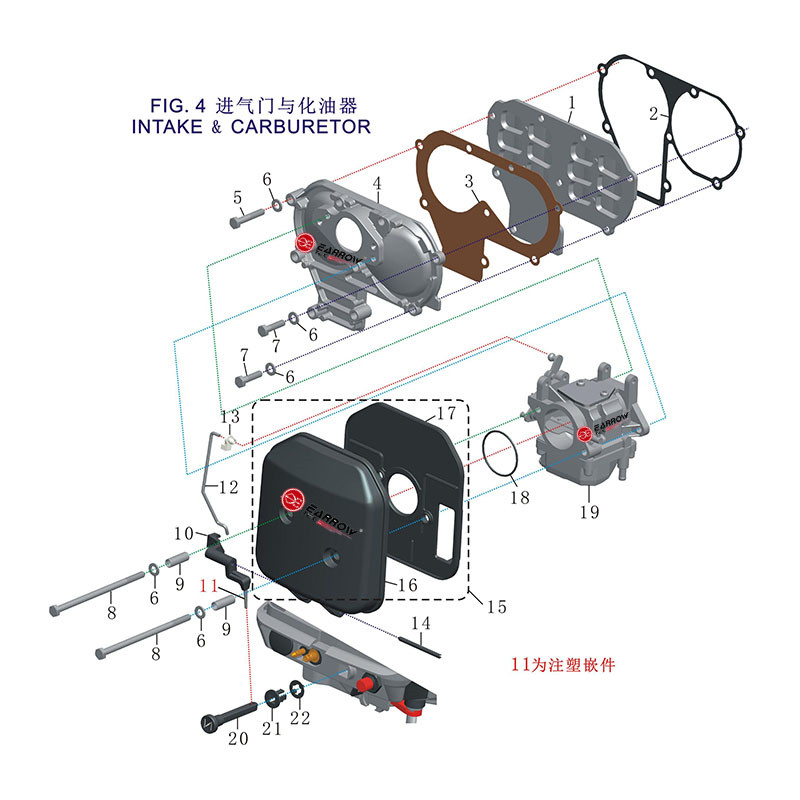

INTAKE & CARBURETOR

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.4-1	PT30-04001	61N-13610-00	reed valve assy
FIG.4-2	PT30-04003	648-13621-A1	gasket valve seat
FIG.4-3	PT30-04005	648-13645-A0	gasket manifold1
FIG.4-4	PT30-04004	61N-13641-01-1S	manifold1
FIG.4-5	GB/T5782M635	97013-06035	bolt M6*35
FIG.4-6	GB/T97.1D6	920903-06600	washer Φ6.5XΦ12X1.5
FIG.4-7	GB/T5782M625	97013-06025	bolt M6*25
FIG.4-8	GB/T5782M6115	90119-06M94	bolt M6*115
FIG.4-9	PT30-04016	90387-06M26	collar Φ6.5XΦ8.3X23.5
FIG.4-10	PT30-04020	689-41252-01	lever choke
FIG.4-11	PT30-04020-1	N/A
FIG.4-12	PT30-04021	61N-41256-02	rod choke
FIG.4-13	PT4-14030	661-41262-02	joint choke lever
FIG.4-14	GB/T879.2D450	91690-40048	pin spring Φ4X50
FIG.4-15	PT30-04013	61N-14440-00	silencer assy. intake
FIG.4-16	PT30-04013-1	N/A
FIG.4-17	PT30-04013-2	N/A
FIG.4-18	PT30-04014	93210-40659	O ring Φ1.8XΦ40
FIG.4-19	PT30-05001	69P-14301-00	carburetor assy.
FIG.4-20	PT30-04017	682-41271-00	knob choke
FIG.4-21	PT3-02013	682-41273-00	grommet
FIG.4-22	PT3-06009	6J8-41274-00	grommet2

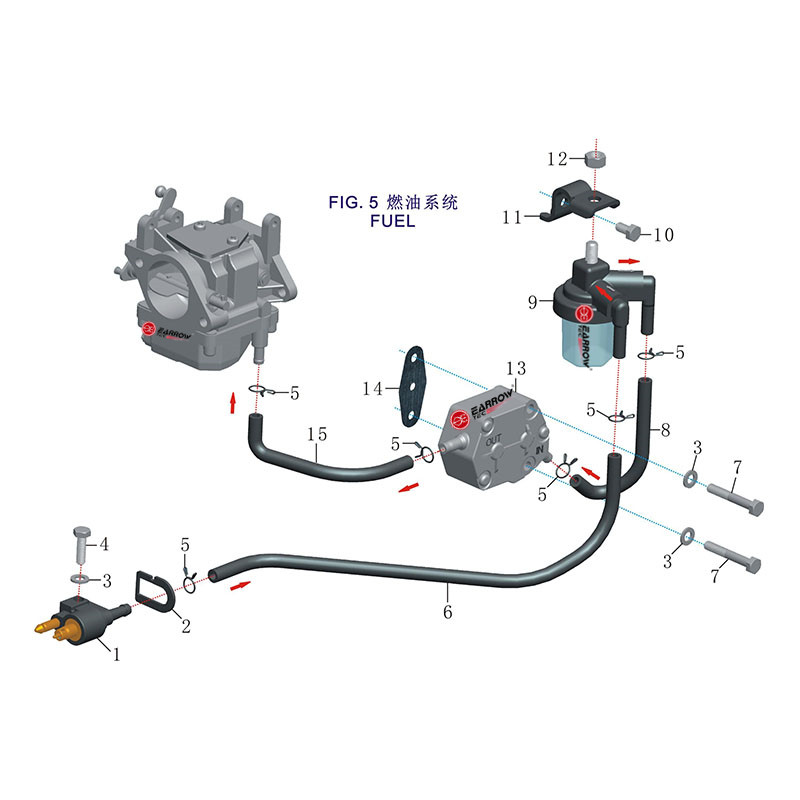

FUEL ASSY.

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.5-1	PT5-14033	6G1-24304-02	fule pipe joint comp
FIG.5-2	PT4-09002	61N-34329-00	seal
FIG.5-3	GB/T97.1D6	92995-06600	washer Φ6.5XΦ12X1.5
FIG.5-4	GB/T5783M620	97095-06020	bolt M6*20
FIG.5-5	PT5-08007	90467-08004	clip Φ9
FIG.5-6	PT30-06005	90445-09M75	hose（ Φ9XΦ5XL370）
FIG.5-7	GB/T5782M640	97095-06040	bolt M6*40
FIG.5-8	PT30-06014	689-24311-00	pipe Φ9XΦ5XL110
FIG.5-9	PT5-14041	61N-24560-00	filter assy.
FIG.5-10	GB/T5783M612	97013-06014	bolt M6*12
FIG.5-11	PT30-06012	61N-24566-01	bracket filter
FIG.5-12	GB/T6170M8	95380-08600	nut M8
FIG.5-13	PT30-06016	692-24410-00	fuel pump assy.
FIG.5-14	PT30-06028	650-24431-A0	gasket fuel pump1
FIG.5-15	PT30-06031	6A1-24311-00	pipe fuel1

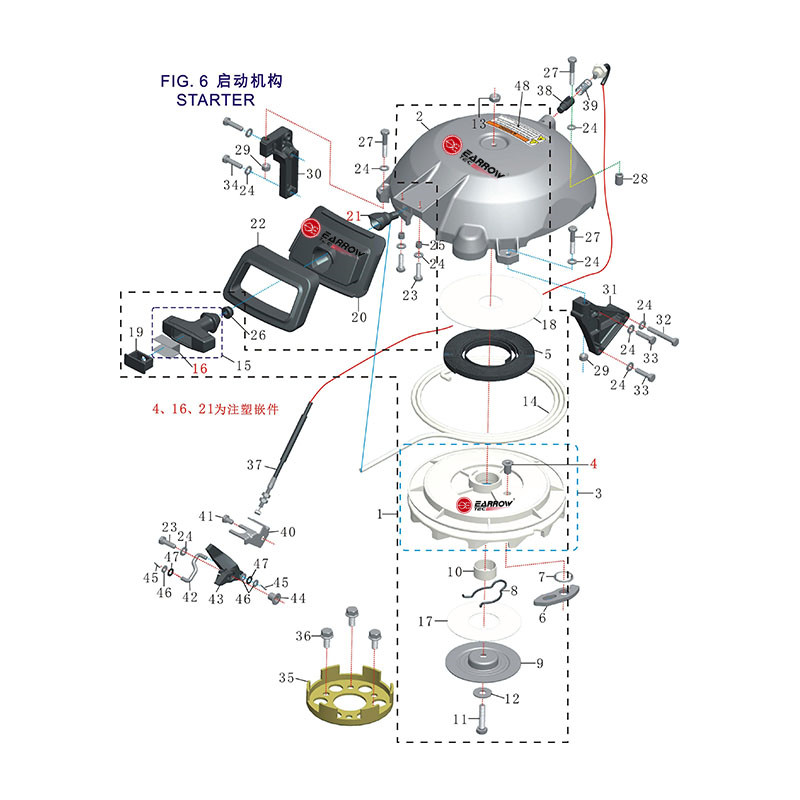

STARTER ASSY.

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.6-1	PT30-07001	61N-W1571-11	stater assy.
FIG.6-2	PT30-07002	61N-15711-10	case starter
FIG.6-3	PT30-07003	6G0-15714-01	drum sheave
FIG.6-4	PT30-07003-1	N/A
FIG.6-5	PT30-07005	6F5-15713-01	spring stater
FIG.6-6	PT30-07004	6F5-15741-01	pawl drive
FIG.6-7	PT30-07007	61N-15734-00	spring return
FIG.6-8	PT30-07006	61N-15715-00	spring friction
FIG.6-9	PT30-07008	6F5-15716-01	plate drive
FIG.6-10	PT30-07009	6G0-15754-00	bush
FIG.6-11	GB /T5782M835	97013-08030	bolt M8*35
FIG.6-12	GB/T96D8	6F5-15726-01	washer Φ8.5XΦ24X2
FIG.6-13	GB/T6170M8	95303-08700	nut M8
FIG.6-14	PT30-07013		wire L=1900
FIG.6-15	PT30-07014	689-15755-01	handle starter
FIG.6-16	PT30-07014-1	N/A
FIG.6-17	PF4-10018	6F5-15764-00	collar
FIG.6-18	PT30-07016	6F5-15739-00	washer thrust
FIG.6-19	PT30-07017	6F5-15779-02	cover
FIG.6-20	PT30-07018	61N-15758-01-4D	guide pope
FIG.6-21	PT30-07018-1	N/A
FIG.6-22	PT30-07019	61N-15762-00	seal rubber2
FIG.6-23	GB/T5783M620	90119-06M13	bolt M6*20
FIG.6-24	GB/T97.1D6	92995-06600	washer Φ6.5XΦ12X1.5
FIG.6-25	PT30-07018-2	N/A
FIG.6-26	PT5-06023	6A0-15789-00	damper
FIG.6-27	GB/T5782M635	97095-06035	bolt M6*35
FIG.6-28	PF4-02005	99530-10014	pin dowel Φ6.7Φ1013.8
FIG.6-29	GB/T41M6	95380-06600	nut hexagon M6
FIG.6-30	PT30-07029	6H7-15771-01-94	stay1
FIG.6-31	PT30-07031	656-15772-00-94	stay2
FIG.6-32	GB/T5782M645	90119-06025	bolt M6*45
FIG.6-33	GB/T5782M625	90119-06MA3	bolt M6*25
FIG.6-34	GB/T5782M625	90119-06MA3	bolt M6*25
FIG.6-35	PT30-07034	6F5-15723-01	pulley starter
FIG.6-36	GB/ 5789M816	90105-08M10	bolt flange M8*16
FIG.6-37	PT30-07036	61T-15770-00	cable comp starter stop
FIG.6-38	PT5-02012	656-15748-00	plunger starter stop
FIG.6-39	PT30-07038	90501-10227	spring compresion
FIG.6-40	PT30-07039	69P-15774-00	stay4
FIG.6-41	GB /T5781M610	97095-06010	bolt M6*10
FIG.6-42	PT30-07042	689-15747-70	link
FIG.6-43	PT30-07041	69P-15746-00	arm
FIG.6-44	PT30-07044	90387-06013	collar
FIG.6-45	GB/T91D1.510	91490-16010	pin cotter
FIG.6-46	GB/T97.1D5	92903-05600	washer plate Φ5Φ101
FIG.6-47	GB/T955D5	90206-05005	washer wave Φ5
FIG.6-48	PT30-07048	6AH-81995-40	label, waring
FIG.6-49	30-22001

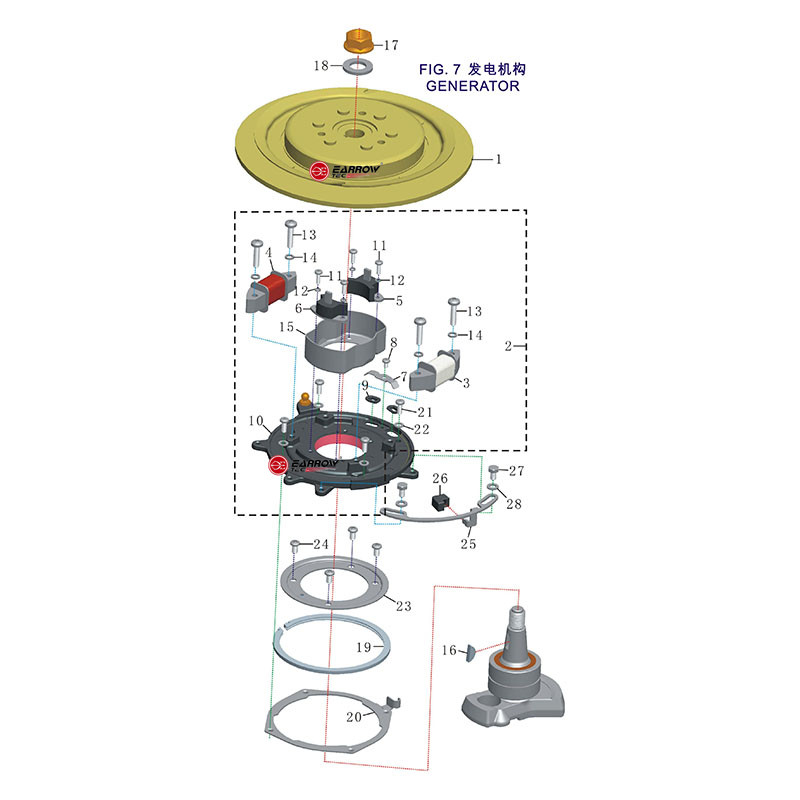

GENERATOR ASSY.

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.7-1	PT30-08001	61N-85550-10	rotor assy.
FIG.7-2	PT30-08002	69P-85560-00	base assy.
FIG.7-3	PT30-08003	69P-85541-09	coil charge
FIG.7-4	PT30-08004	61N-81313-09	coil lighting1
FIG.7-5	PT30-08005	61N-85543-09	coil pulser
FIG.7-6	PT30-08006	61N-85543-19	coil pulser
FIG.7-7	PT30-08007	6E9-81328-70	clamp
FIG.7-8	GB/T822M46	97802-04006	screw pan head M4*6
FIG.7-9	PT30-08009	6E9-85516-70	grommet
FIG.7-10	PT30-08010	69P-85561-00	base magneto
FIG.7-11	GB/T822M412	97607-04112	screw pan head M4*12
FIG.7-12	GB/T93D4		lock washer Φ4
FIG.7-13	GB/T822M625	97607-06125	screw pan head M6*25
FIG.7-14	GB/T93D6		lock washer Φ6
FIG.7-15	PT30-08013	61N-85537-00	cover
FIG.7-16	PT30-08014	90280-05015	key woodruff
FIG.7-17	GB/T6177.2M161.25	90179-16M05	nut M16*1.25
FIG.7-18	PT30-08016	90201-16M44	washer plate
FIG.7-19	PT30-08017	676-41611-00	retainer magneto base
FIG.7-20	PT30-08018	676-41613-00	plate base friction
FIG.7-21	GB/T822M512	97880-05012	screw pan head M5*12
FIG.7-22	GB/T97.1D5	92990-05600	washer Φ5XΦ10X1
FIG.7-23	PT30-08021	689-41612-01	retainer magneto base
FIG.7-24	GB/T822M610	97880-06010	screw pan head M6*10
FIG.7-25	PT30-09001	61N-41615-00	stopper magneto base
FIG.7-26	PT30-09002	61N-44194-01	cap
FIG.7-27	GB/T5783M610	97095-06010	bolt M6*10
FIG.7-28	GB/T97.1D6	92995-06600	washer Φ6.5XΦ12X1.5

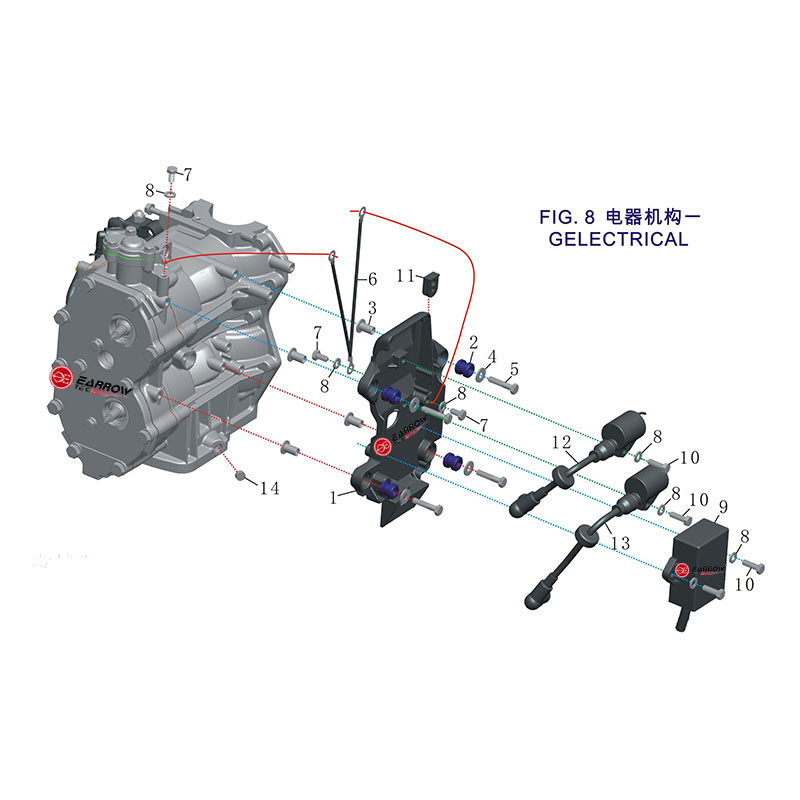

GELECTRICAL ASSY.

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.8-1	PT30-09005	61N-85542-00-94	bracket
FIG.8-2	PT3-06003	61N-82317-00	damper ignition coil
FIG.8-3	PT3-04001	624-42542-00	pipe
FIG.8-4	GB/T96D6	90201-06M30	washer Φ6.5XΦ16X1.5
FIG.8-5	GB/T5782M630	90119-06M95	bolt M6*30
FIG.8-6	PT30-09010	61N-82519-01	wire earth lead
FIG.8-7	GB/T5783M612	97090-06012	bolt M6*12
FIG.8-8	GB/T97.1D6	92995-06600	washer Φ6.5XΦ12X1.5
FIG.8-9	PT30-09013	61N-85540-13	CDI unit assy
FIG.8-10	GB/T5783M620	97095-06020	bolt M6*20
FIG.8-11	PT30-09018	6H3-81922-00	grommet
FIG.8-12	PT30-09020	61N-85570-00	ignition coil assy
FIG.8-13	PT30-09025	61N-85570-10	ignition coil assy
FIG.8-14	PT30-02002-4

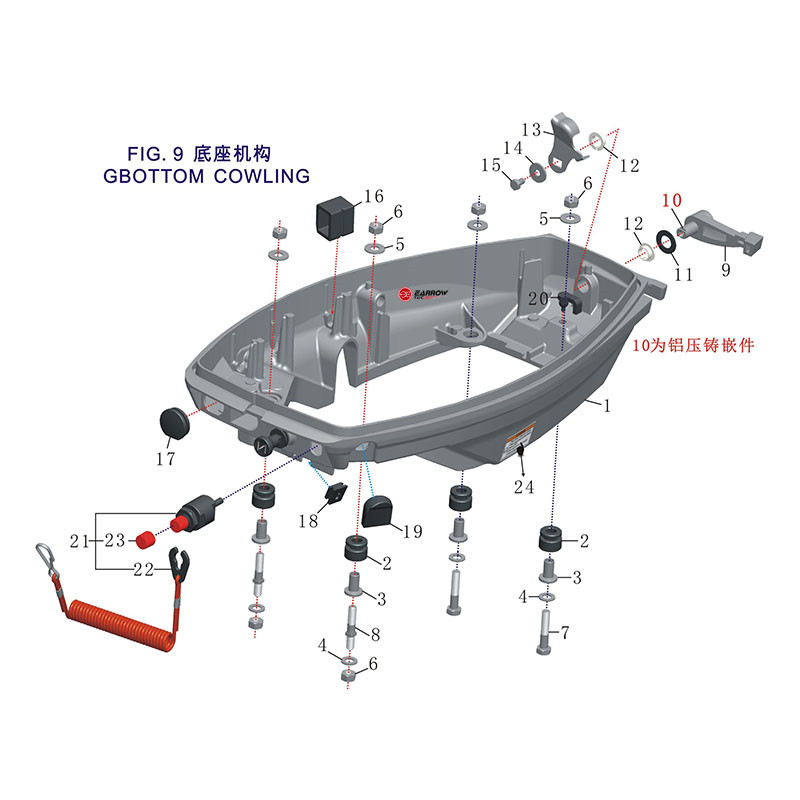

GBOTTOM COWLING

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.9-1	PT30-11001	689-42711-04-4D	cowling bottom
FIG.9-2	PT30-11002	90480-15M06	grommet
FIG.9-3	PT30-11003	90387-08M25	collar
FIG.9-4	GB/T97.1D8	92900-08600	washer Φ8.5XΦ16X1.5
FIG.9-5	GB/T96D8	90201-08M87	washer Φ8.5XΦ20X2
FIG.9-6	GB/T6170M8	95380-08700	nut M8
FIG.9-7	GB /T5782M840	97080-08040	bolt M8*40
FIG.9-8	PT30-11005	6G0-42796-00	bolt1
FIG.9-9	PT30-11011	689-42815-00	lever clamp
FIG.9-10	PT30-11011-1	N/A
FIG.9-11	GB/T955D12	90206-12052	washer wave Φ12
FIG.9-12	PT30-11013	90386-12069	bush
FIG.9-13	PT30-11014	689-42816-00	lever clamp
FIG.9-14	GB/T96D6	92990-06100	washer Φ6.5XΦ20X2
FIG.9-15	GB/T5783M610	90119-06M73	bolt M6*10
FIG.9-16	PT30-11023	90480-17M08	grommet
FIG.9-17	PT30-11016	682-42724-00	grommet
FIG.9-18	PT30-11019	61N-26326-00	grommet
FIG.9-19	PT30-11017	689-42725-01	grommet
FIG.9-20	PT30-11018	647-42523-00	spacer friction
FIG.9-21	PF4-12001	6E9-82575-02	engine stop switch assy.
FIG.9-22	PT5-07008-1	682-82556-00	stopper
FIG.9-23	PT30-11022	689-8257Y-00	cap
FIG.9-24	PT30-11025	6A1-28176-00	label caution
FIG.9-25	30-16055

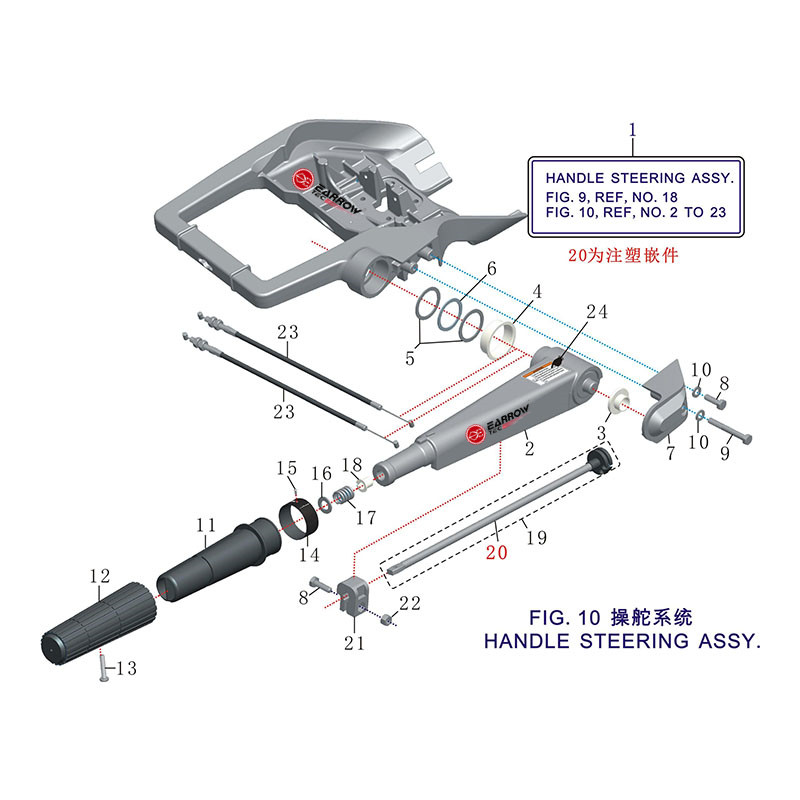

HANDLE STEERING ASSY.

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.10-1	PT30-12001	69P-W0084-00-4D	handle steering assy
FIG.10-2	PT30-12002	689-42111-01-4D	handle steering
FIG.10-3	PT30-12003	90387-13003	collar
FIG.10-4	PT30-12004	90387-33001	collar
FIG.10-5	PT30-12005	90201-28013	washer plate
FIG.10-6	GB/T955D27	90206-12052	washer wave Φ27
FIG.10-7	PT30-12007	69P-42112-00-4D	handle steering
FIG.10-8	GB/T5783M620	97095-06020	bolt M6*20
FIG.10-9	GB/T5782M650	97595-06550	bolt M6*50
FIG.10-10	GB/T97.1D6	92995-06600	washer Φ6.5XΦ12X1.5
FIG.10-11	PT30-12011	664-42119-00	grip steering handle
FIG.10-12	PT3-06014	6F6-42177-A0	rubber handle
FIG.10-13	GB/T820M525	90149-05M13	screw M5*25
FIG.10-14	PT5-12012	6G1-42137-10	indicator throttle
FIG.10-15	GB/T827D25	90269-02M09	rivet Φ2X5
FIG.10-16	PT3-03047	92903-10600	washer plate
FIG.10-17	PT5-08008	90501-23215	spring compression
FIG.10-18	PT3-02026	90386-08032	bush
FIG.10-19	PT30-12019	689-42138-00	lever throttle
FIG.10-20	PT3-02027-1	N/A
FIG.10-21	PT30-12020	656-42126-01	friction steering handle grip
FIG.10-22	GB/T 6172.2M6	90185-06062	nut self-locking
FIG.10-23	PT30-12023	61N-26311-00	cable throttle
FIG.10-24	PT30-12025	6E0-83627-41	lable caution7

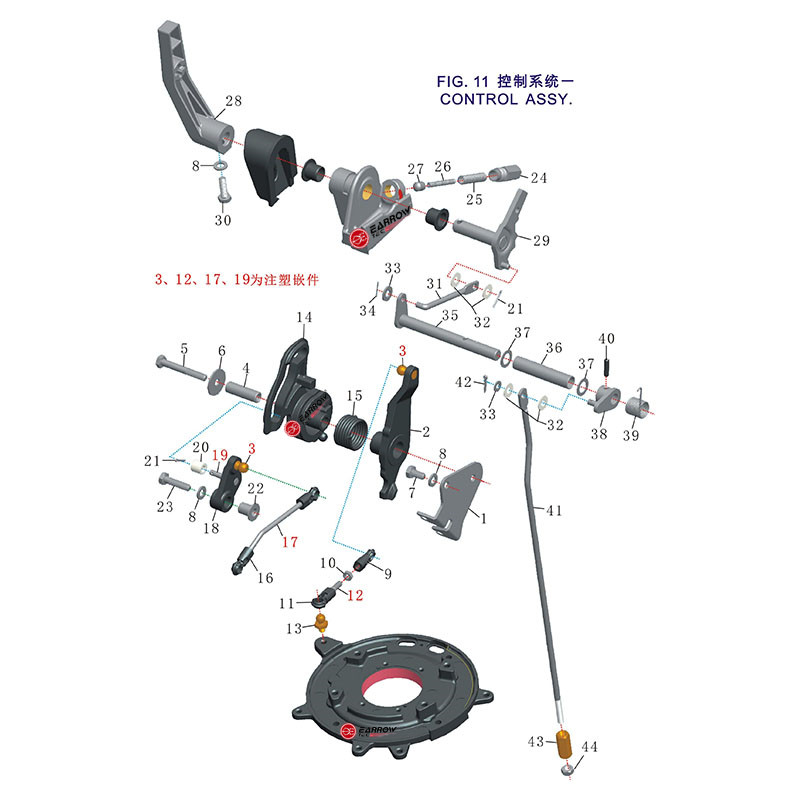

CONTROL ASSY.

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.11-1	PT30-13001	69P-14497-00	stay throttle wire
FIG.11-2	PT30-13002	69P-41631-00	lever magneto control
FIG.11-3	PT30-13014-1	N/A
FIG.11-4	PT30-13003	90387-06M59	collar
FIG.11-5	GB/T5782M645	97095-06045	bolt M6*45
FIG.11-6	PT30-13005	90201-06416	washer Φ6.5XΦ20X2
FIG.11-7	GB/T5783M612	97095-06012	bolt M6*12
FIG.11-8	GB/T97.1D6	92995-06600	washer Φ6.5XΦ12X1.5
FIG.11-9	PT30-13007	662-41237-01	joint link
FIG.11-10	GB/T6172.1M5	95380-05700	nut M5
FIG.11-11	PT30-13009	679-41241-01	rod link
FIG.11-12	PT30-13009-1	N/A
FIG.11-13	PT30-13010	663-85518-00	joint link
FIG.11-14	PT30-13018	69P-41213-00	cam accel
FIG.11-15	PT30-13019	69P-42167-00	spring1
FIG.11-16	PT30-13020	69P-42141-00	rod link
FIG.11-17	PT30-13020-1	N/A
FIG.11-18	PT30-13021	69P-42154-00	lever throttle control
FIG.11-19	PT30-13021-1	N/A
FIG.11-20	PT30-13022	62Y-42171-00	bushing
FIG.11-21	GB/T91D1.510	91490-16010	pin cotter
FIG.11-22	PT30-13024	90387-06M60	collar Φ6.5Φ10Φ16*14
FIG.11-23	GB/T5783M625	90119-06M17	bolt M6*25
FIG.11-24	PT30-13026	664-42715-00	bushing
FIG.11-25	PT30-13028	90501-14M07	spring compression
FIG.11-26	PT30-13029	90501-09M08	spring compression
FIG.11-27	PT30-13027	664-44167-01	plunger shift cam
FIG.11-28	PT30-13030	689-44111-01-4D	handle gear shift
FIG.11-29	PT30-13031	664-44113-01	cam plate handle
FIG.11-30	GB/T5783M620	90105-06M07	bolt M6*20
FIG.11-31	PT30-13033	664-44142-00	joint
FIG.11-32	PT30-13035	90202-06007	washer plate Φ6Φ130.6
FIG.11-33	GB/T97.1D5	92990-05600	washer Φ5XΦ10X1
FIG.11-34	GB/T91D110	91490-12010	pin cotter Φ1*10
FIG.11-35	PT30-13038	689-44121-01	lever shift rod
FIG.11-36	PT30-16015	90387-10M39	collar Φ10Φ1257
FIG.11-37	PT30-13041	90202-10024	washer plate Φ10.2Φ160.7
FIG.11-38	PT30-13039	689-44125-00	lever shift rod
FIG.11-39	PT30-13040	90508-14M13	spring torsion
FIG.11-40	GB/T879.2D416	91690-40016	pin spring Φ4X16
FIG.11-41	PT30-13043	61N-44143-00	rod shift
FIG.11-42	GB/T91D210	91490-20010	pin cotter Φ2*10
FIG.11-43	PT30-13047	61N-44146-00	connector shift rod
FIG.11-44	GB/T41M6	95380-06600	nut hexagon M6

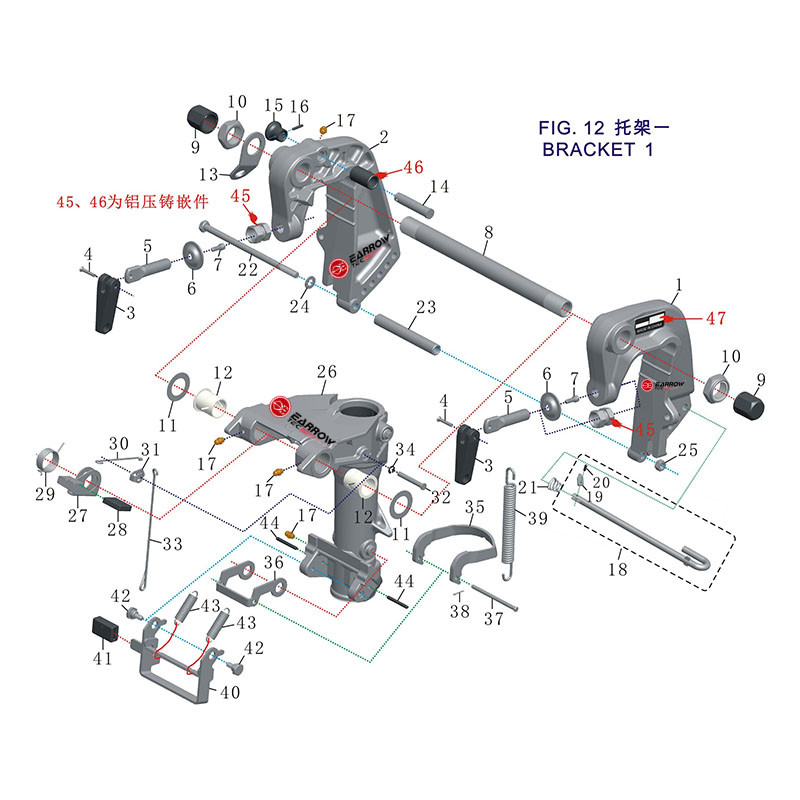

BRACKET 1

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.12-1	PT30-15001	689-43111-03-4D	bracket clamp
FIG.12-2	PT30-15002	689-43112-02-4D	bracket clamp
FIG.12-3	PT5-02028	6E0-43118-01	handle transom clamp
FIG.12-4	GB/T1015D424	90243-04M01	pin Φ4*24
FIG.12-5	PT30-15005	90149-14030	screw M14248*L70
FIG.12-6	PT5-05015	648-43114-01	pad transom clamp
FIG.12-7	PT5-03040-1	90109-06M12	bolt M51013.8
FIG.12-8	PT30-15008	6J8-43131-01	bolt clamp bracket
FIG.12-9	PT30-15009	6G5-43145-01	cap clamp bracket
FIG.12-10	PT30-15010	90185-22043	nut self locking M22*1.75
FIG.12-11	PT30-15011	90201-22M03	washer plate Φ22.7Φ36.80.5
FIG.12-12	PT30-15012	90386-22M67	bush
FIG.12-13	PT30-15013	6J8-43113-01	plate clamp bracket
FIG.12-14	PT30-15014	689-43191-00	shaft stopper
FIG.12-15	PT30-15015	689-43192-01	knob stopper
FIG.12-16	GB/T879.2D316	91690-30016	pin spring Φ3X16
FIG.12-17	PT5-03038	93700-06M03	nipple grease
FIG.12-18	PT30-15019	689-43160-00	tilt rod assy
FIG.12-19	PT5-05018	689-43165-00	plate tilt lock
FIG.12-20	GB/T879.2D38	91690-30008	pin spring Φ3X8
FIG.12-21	PT30-15022	90502-10M07	spring conical
FIG.12-22	GB /T5782M8160	90101-08339	bolt M8*160
FIG.12-23	PT30-15024	90387-08M03	collar Φ9XΦ14*103.5
FIG.12-24	GB/T97.1D8	92990-08600	washer Φ8.5XΦ16X1.5
FIG.12-25	GB/T6170M8	95380-08600	nut M8
FIG.12-26	PT30-15027	689-43311-03-4D	bracket swivel1
FIG.12-27	PT30-15030	689-43631-00	lever tilt
FIG.12-28	PT30-15031	689-43633-00	cover tilt lever
FIG.12-29	PT30-15032	689-43643-00	spring
FIG.12-30	PT30-15033	689-43616-00	rod tilt lock
FIG.12-31	PT30-15034	648-43642-00	lever tilt1
FIG.12-32	PT30-15035	90249-06M22	pin
FIG.12-33	PT30-15036	648-43617-00	rod tilt lock
FIG.12-34	GB/T896D5	99080-05600	circlip Φ5
FIG.12-35	PT30-15038	689-43614-01	plate tilt lock
FIG.12-36	PT30-15039	648-43615-00	plate tilt lock
FIG.12-37	PT30-15040	90240-05047	pin clevis
FIG.12-38	GB/T91D1.510	91490-16010	pin cotter Φ1.5*10
FIG.12-39	PT30-15042	90506-30M27	spring tension
FIG.12-40	PT30-15043	689-43681-01	lever shallow water drive1
FIG.12-41	PT30-15044	682-43318-01	cover
FIG.12-42	PT30-15045	90109-06M18	bolt M611.5Φ105.5L17
FIG.12-43	PT30-15046	90506-16M17	spring tension
FIG.12-44	GB/T879.2D435	91690-40035	pin spring Φ4X35
FIG.12-45	PT30-15002-1	N/A
FIG.12-46	PT30-15002-2	N/A

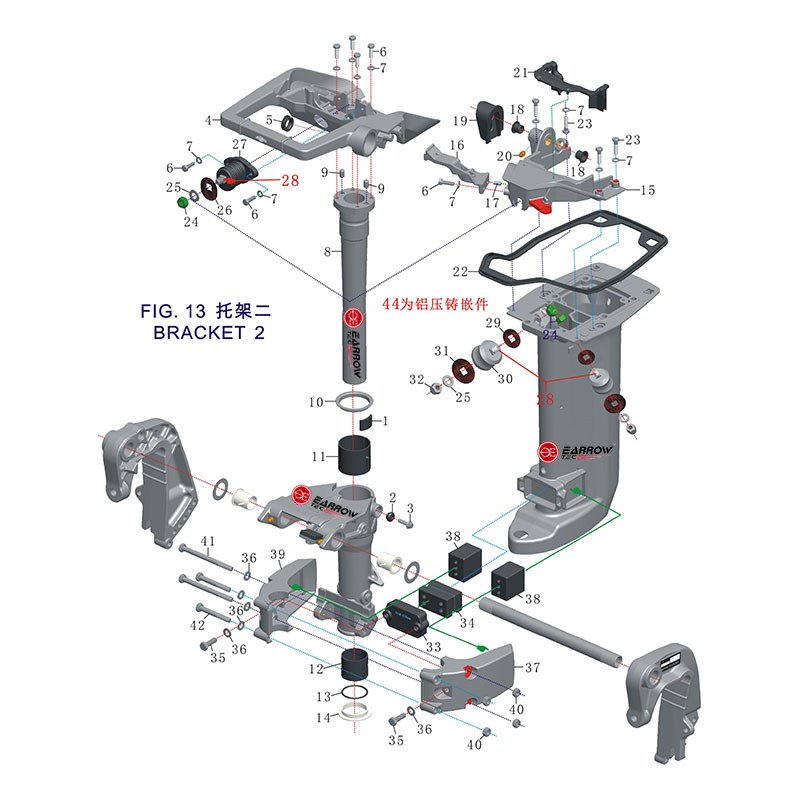

BRACKET 2

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.13-1	PT30-16001	648-42528-00	plate friction
FIG.13-2	PT30-16002	689-43373-01	seal damper
FIG.13-3	GB/ 5789M620	90105-06M18	bolt flange M6*20
FIG.13-4	PT30-16004	69P-42511-00-4D	bracket steering
FIG.13-5	PT30-16005	90480-29045	grommet
FIG.13-6	GB/T5783M620	90105-06M07	bolt M6*20
FIG.13-7	GB/T97.1D6	92995-06600	washer Φ6.5XΦ12X1.5
FIG.13-8	PT30-16007	689-42521-00-94	shaft steering pivot
FIG.13-9	PT30-16008	93608-12063	pin dowel
FIG.13-10	PT30-16009	90209-47016	washer
FIG.13-11	PT30-16010	90386-47M22	bush
FIG.13-12	PT30-16011	90386-38090	bush
FIG.13-13	PT30-16012	93210-37160	O-ring
FIG.13-14	PT30-16013	90386-38022	bush
FIG.13-15	30-16014	69P-44518-00-94	bracket comp
FIG.13-16	PT30-16016	648-44519-00-94	bracket
FIG.13-17	PT5-03002	93606-12019	pin dowel
FIG.13-18	PT30-16020	90381-12M01	bush solid
FIG.13-19	PT30-16021	689-42718-00	rubber seal3
FIG.13-20	PT5-03038	93700-06M03	nipple grease
FIG.13-21	PT30-16024	69P-42717-00	rubber seal2
FIG.13-22	PT30-16025	69P-42716-00	rubber seal1
FIG.13-23	GB /T5781M625	90105-06M08	bolt M6*25
FIG.13-24	GB/T41M10	90170-10M42	nut hexagon M10
FIG.13-25	GB/T97.1D10	92990-10200	washer Φ10.5XΦ20X20
FIG.13-26	PT30-16029	648-44591-A0	gasket
FIG.13-27	PT30-16030	689-44516-00	mount damper upper front
FIG.13-28	PT30-16030-1	N/A
FIG.13-29	PT30-16034	648-44591-A0	gasket
FIG.13-30	PT30-16035	664-44514-00-94	mount damper upper side
FIG.13-31	PT30-16036	664-44591-A0	gasket
FIG.13-32	GB/T923M10	90176-10M01	nut crown
FIG.13-33	PT30-16039	689-44553-00-94	cover lower mount
FIG.13-34	PT30-16040	689-44557-00	mount damper lower front
FIG.13-35	GB/T5783M825	97075-08025	bolt M8*25
FIG.13-36	GB/T97.1D8	92995-08600	washer Φ8.5XΦ16X1.5
FIG.13-37	PT30-16043	689-44551-01-4D	housing lower mount rubber
FIG.13-38	PT30-16044	689-44555-00	mount damper lower side
FIG.13-39	PT30-16045	689-44552-01-4D	housing lower mount rubber
FIG.13-40	GB/T6170M8	95380-08600	nut M8
FIG.13-41	GB /T5782M8100	90119-08M03	bolt M8*100
FIG.13-42	GB /T5782M865	97595-08565	bolt M8*65
FIG.13-43	30-16014-1

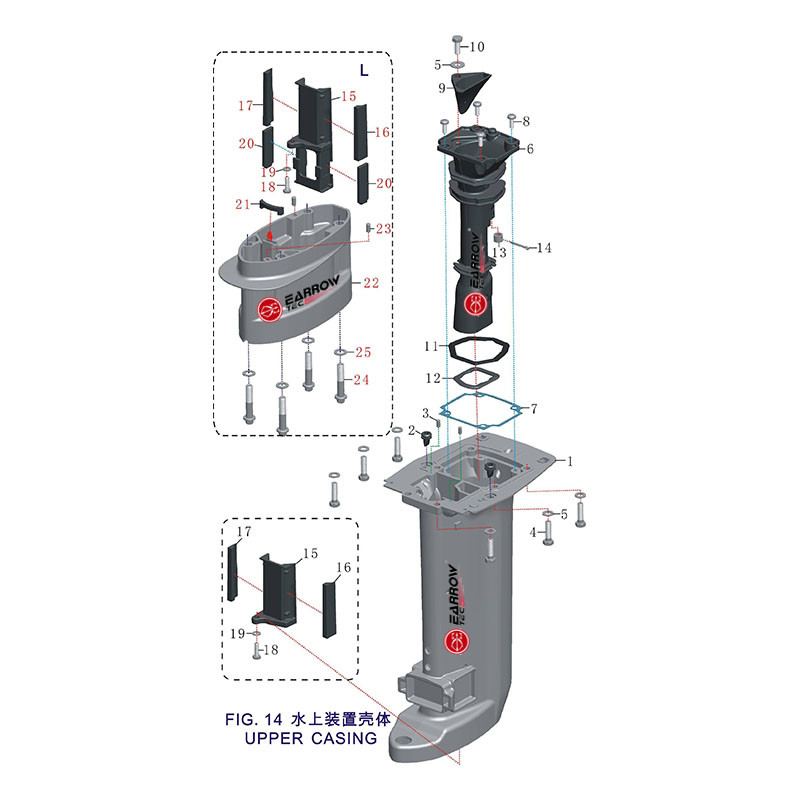

UPPER CASING

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.14-1	PT30-17001	69P-45111-00-4D	casing upper
FIG.14-2	PT30-17002	65W-42717-00	rubber seal2
FIG.14-3	PT5-03002	93606-12019	pin dowel
FIG.14-4	GB/T5783M830	97075-08030	bolt M8*30
FIG.14-5	GB/T97.1D8	92995-08600	washer Φ8.5XΦ16X1.5
FIG.14-6	PT30-17006	69P-41131-01-5B	mainfold ext 1
FIG.14-7	PT30-17007	69P-41134-A0	gasket exhaust mainfold
FIG.14-8	GB/T822M616	97880-06016	screw pan head M6*16
FIG.14-9	PT30-17009	69P-41137-00-5B	guide exaust
FIG.14-10	GB/T5783M820	97095-08020	bolt M8*20
FIG.14-11	PT30-17012	69P-41138-00	seal ext 1
FIG.14-12	PT30-17013	69P-41139-00	seal ext 2
FIG.14-13	PT30-17014	6A8-41135-00	gasket exhaust mainfold
FIG.14-14	GB/T91D325	91490-16010	pin cotter Φ3*25
FIG.14-15	PT30-17016	69P-47467-00-5B	plate guide
长轴L	PT30-17016-1	69P-47467-10-5B	plate guide
FIG.14-16	PT30-17017	69P-45127-00	seal
FIG.14-17	PT30-17018	69P-45128-00	seal2
FIG.14-18	GB /T5781M620	90105-06M08	bolt M6*20
FIG.14-19	GB/T97.1D6	92995-06600	washer Φ6.5XΦ12X1.5
FIG.14-20	PT30-17020	69P-45159-00	damper
FIG.14-21	PT30-18026	61N-45375-00	damper seal
FIG.14-22	PT30-17023	61N-45211-31-4D	extension
FIG.14-23	PT5-03002	93606-12019	pin dowel
FIG.14-24	PT30-17022	90116-10M33	bolt stud
FIG.14-25	GB/T97.3D10	92995-10600	washer Φ10.2XΦ18X2.5

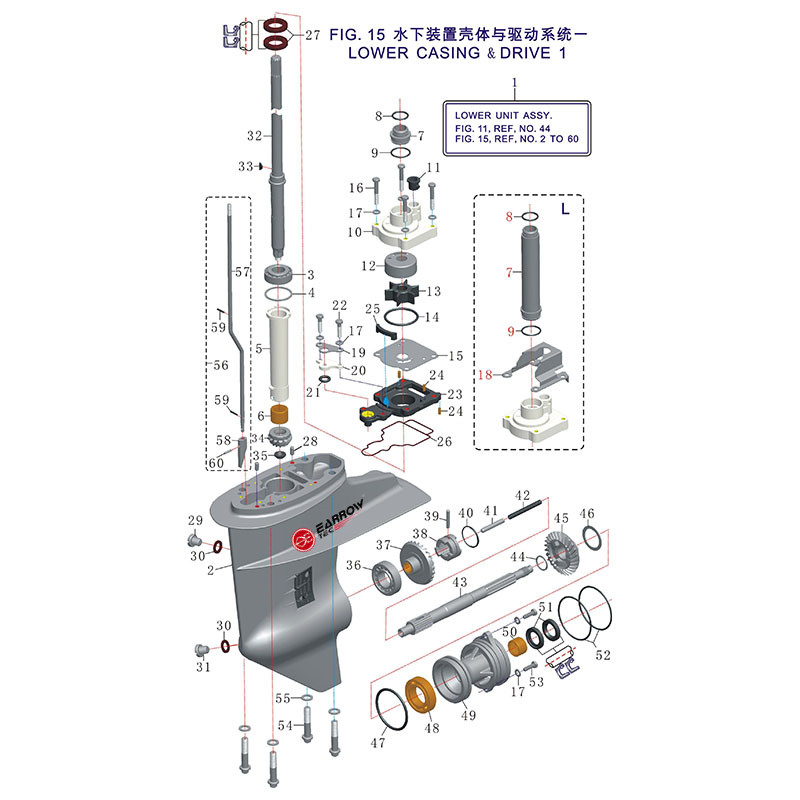

LOWER CASING & DRIVE 1

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.15-1	PT30-18001	69P-45300-01-4D	lower unit assy.
FIG.15-2	PT30-18002	61N-45311-02-04	casing lower
FIG.15-3	32004JR	93332-000W5	bearing Φ20XΦ42X15
FIG.15-4	PT30-18004	61N-45587-00	shim
FIG.15-5	PT30-18005	61N-45536-00	sleeve drive shaft
FIG.15-6	F-2020	93315-220V7	bearing Φ20XΦ26X20
FIG.15-7	PT30-18007	61N-44362-00	tube water
	PT30-18060	61N-44362-10	tube water
FIG.15-8	PT30-18008	93210-22164	O-ring
FIG.15-9	PT30-18009	93210-26130	O-ring
FIG.15-10	PT30-18010	69P-44311-00	housing water pump
FIG.15-11	PT30-18011	6L2-44367-00	damper water seal
FIG.15-12	PT30-18012	69P-44322-00	insert cartridge
FIG.15-13	PT30-18013	6H4-44352-02	impeller
FIG.15-14	PT30-18014	93210-45161	O-ring
FIG.15-15	PT30-18015	61N-44323-00	outer plate cartridge
FIG.15-16	GB/T5782M640	97095-06040	bolt M6*40
FIG.15-17	GB/T97.1D6	92995-06600	washer Φ6.5XΦ12X1.5
FIG.15-18	PT30-18018	65W-44328-11	plate
FIG.15-19	PT30-18019	61N-44176-00	bracket
FIG.15-20	PT30-18020	90340-08020	plate
FIG.15-21	PT30-18021	93210-06ME6	O-ring
FIG.15-22	GB/T5782M625	97095-06025	bolt M6*25
FIG.15-23	PT30-18024	61N-45331-00-5B	housing bearing
FIG.15-24	PT30-18025	93604-10M03	pin dowel
FIG.15-25	PT30-18026	61N-45375-00	damper seal
FIG.15-26	PT30-18027	61N-45315-00	packing lower casing
FIG.15-27	PT30-18028	93101-22067	oil seal Φ22Φ366
FIG.15-28	PT5-03002	93606-12019	pin dowel
FIG.15-29	PT5-03054	90340-08002	plug straight screw
FIG.15-30	PT5-14028	90340-08020	gasket
FIG.15-31	PT5-03054-1	688-45341-10	plug drain
FIG.15-32	PT30-18036	61N-45510-00	drive shaft assy.
	PT30-18036-1	61N-45510-10	drive shaft assy.
FIG.15-33	PT30-18037	90280-03M03	key woodruff
FIG.15-34	PT30-18038	61N-45551-00	pinon
FIG.15-35	PT30-18039	90179-10M14	nut M101.255.5
FIG.15-36	4T-30205	93330-00005	bearing Φ25Φ5216.25
FIG.15-37	PT30-18042	61N-45560-10	gear1
FIG.15-38	PT30-18045	664-45631-02	clutch dog
FIG.15-39	PT30-18046	90250-05010	pin strsight Φ5*30
FIG.15-40	PT30-18047	648-45633-00	ring cross pin
FIG.15-41	PT30-18044	648-45635-00	plunger shift
FIG.15-42	PT30-18048	90501-10065	spring compression
FIG.15-43	PT30-18043	65W-45611-00	shaft propeller
FIG.15-44	PT30-18049	90201-20417	washer plate
FIG.15-45	PT30-18050	61N-45571-00	gear2
FIG.15-46	PT30-18051	6L2-45577-00	shim
FIG.15-47	30-18054	93210-64ME7	O-ring
FIG.15-48	6006-C3	93306-00612	bearing
FIG.15-49	PT30-18052	61N-45361-01-4D	cap lower casing
FIG.15-50	HK2016	93306-00612	bearing Φ20Φ1616
FIG.15-51	PT30-18056	93101-20M07	oil seal Φ20Φ346.5
FIG.15-52	PT30-18057	93210-65M50	O-ring
FIG.15-53	GB /T5781M620	90105-06M08	bolt M6*20
FIG.15-54	PT30-19004	90105-10M12	bolt flange M10*35
FIG.15-55	GB/T97.3D10	92995-10600	washer Φ10.2XΦ18X2.5
FIG.15-56	PT30-18062	61N-44150-00	shift cam assy.
FIG.15-57	PT30-18062-1
	PT30-18062-5
FIG.15-58	PT15-16003-2
FIG.15-59	GB/T879.2D2.514		pin spring Φ2.5X14
FIG.15-60	PT30-18062-3

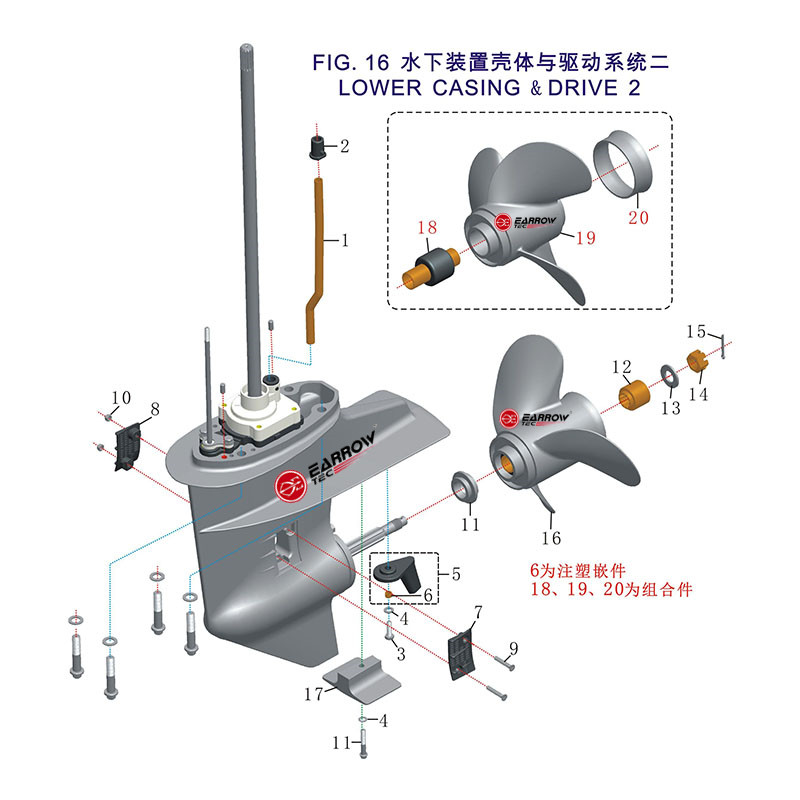

LOWER CASING & DRIVE 2

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.16-1	PT30-19001	61N-44361-00	tube water
	PT30-19001-1	61N-44361-10	tube water L
FIG.16-2	PT30-19002	689-44366-00	damper water seal
FIG.16-3	GB /T5781M620	90119-06M48	bolt M6*20
FIG.16-4	GB/T97.1D6	92995-06600	washer Φ6.5XΦ12X1.5
FIG.16-5	PT30-19006	61N-45371-00	tab-trim
FIG.16-6	PT30-19006-1	N/A
FIG.16-7	PT30-19008	6L2-45214-00	cover with inlet
FIG.16-8	PT30-19009	6L2-45215-00	cover with inlet
FIG.16-9	GB/T819.1M530	90151-05M05	screw countersunk M5*30
FIG.16-10	GB/T889.1M5	90185-05002	nut self-locking M5
FIG.16-11	PT30-19012	6L2-45987-02	spacer
FIG.16-12	PT30-19013	689-45997-00	spacer
FIG.16-13	PT30-19014	92990-14200	washer plain Φ15.2Φ302.4
FIG.16-14	PT30-19015	90171-14013	nut castle M14*1.5
FIG.16-15	GB/T91D2.525	91490-30022	pin cotter
FIG.16-16	PT30-19017	664-45941-01-EL	propeller
FIG.16-17	PT30-18031	61N-45251-01	anode
FIG.16-18	PT30-19017-1	N/A
FIG.16-19	PT30-19017-2	N/A
FIG.16-20	PT30-19017-3	N/A
FIG.16-21	30-19023
FIG.16-22	30-19022

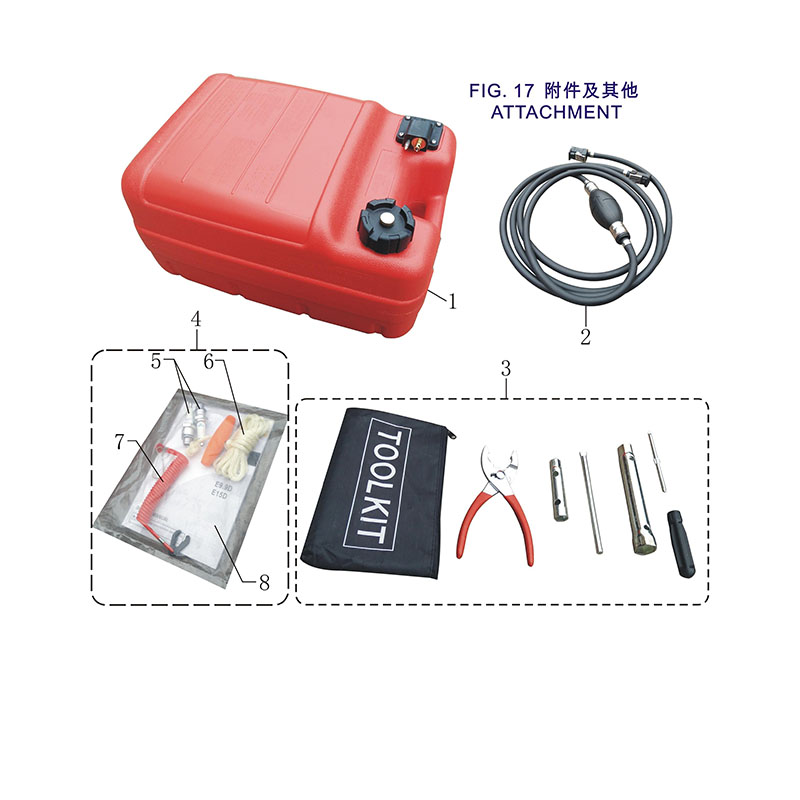

ATTACHMENT

REF. No.	Earrow Part No.	YAMAHA OEM Part No.	DESCRIPTION
FIG.17-1	PT30-20001	6YJ-24201-00	fuel tank assy
FIG.17-2	PT30-20008	61J-24306-03	fuel pipe comp1
FIG.17-3	PT30-20020
FIG.17-4	PT30-20021
FIG.17-5	PT30-02042	94702-00217	plug spark
FIG.17-6	PT5-14027
FIG.17-7	PT5-07008-1	682-82556-00	stopper
FIG.17-8	PT30-19018
FIG.17-9	PT30-19019
FIG.17-10	PT30-19020
FIG.17-11	PT5-13004
FIG.17-12
FIG.17-13	30-30001

Why Choose Our Outboard Engine Parts?

Competitive wholesale pricing
Stable supply for bulk orders
Quality tested before shipment
Suitable for commercial applications
OEM and customization available

Our parts are widely used by:

Boat repair workshops
Outboard engine dealers
Spare parts wholesalers
Marine service companies

Cost-effective Alternative to Premium Brands

Compared to original parts from brands like Yamaha, our PT30 spare parts offer:

Lower cost for bulk purchase
Reliable performance for daily operations
Better availability for fast replacement

Contact Us

Send us your parts list, we will quote within 24 hours.

We support distributors and bulk buyers with stable supply
