Alat ganti enjin sangkut PT15 kami direka untuk serasi dengan model Yamaha popular seperti 6B4 dan 63V.
Bahagian ini digunakan secara meluas dalam:
Kami menyediakan alternatif kos efektif untuk pelanggan yang mencari bahagian enjin sangkut yang boleh dipercayai tanpa kos komponen asal yang tinggi.
Keserasian dengan Model Yamaha
Alat ganti PT15 kami serasi dengan:
Nota:
Ini adalah alat ganti , bukan alat ganti Yamaha asli, tetapi ia direka bentuk untuk memadankan spesifikasi utama dan keperluan prestasi.
| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |
| Gbr.1-1 | ASSY. | 6B4-42610-20 | atas cowling assy |
| Gbr.1-2 | PT15-01002 | 6B4-42615-00 | meterai |
| Gbr.1-3 | PT15-01003 | 6B4-42651-00 | cangkuk |
| Gbr.1-4 | GB/T873D408 | 90266-04M00 | rivet Φ4X8 |
| Gbr.1-5 | PT15-01005 | 6B4-42674-00 | jalur pengapit pemegang |
| Gbr.1-6 | GB/T873D410 | 90266-04005 | rivet |
| Gbr.1-7 | PT15-01007 | 6B4-42613-10 | membentuk saluran udara |
| Gbr.1-8 | GB/T845FST4816 | 90167-05017 | mengetuk skru ST4.8X16 |
| Gbr.1-9 | PT15-01013 | 6B4-15761-00 | getah kedap1 |
| Gbr.1-10 | PT15-01001 | top cowling | |
| Gbr.1-11 | PT5-12015-JC | ||
| Gbr.1-12 | PT15-01010 | 677-42676-10 | bahagian grafik2 |
| Gbr.1-13 | PT15-01009 | 677-42675-10 | bahagian grafik1 |
| Gbr.1-14 | PT15-01012 | 63V-42678-40 | belakang grafik |
| Gbr.1-15 | PT15-01011 | 63V-42678-10 | belakang grafik |
| Gbr.1-16 | PT30-01015 | 6E0-44191-11 | anjakan penunjuk |
| Gbr.1-17 | PT5-12016-1 | Grafik dua lejang |

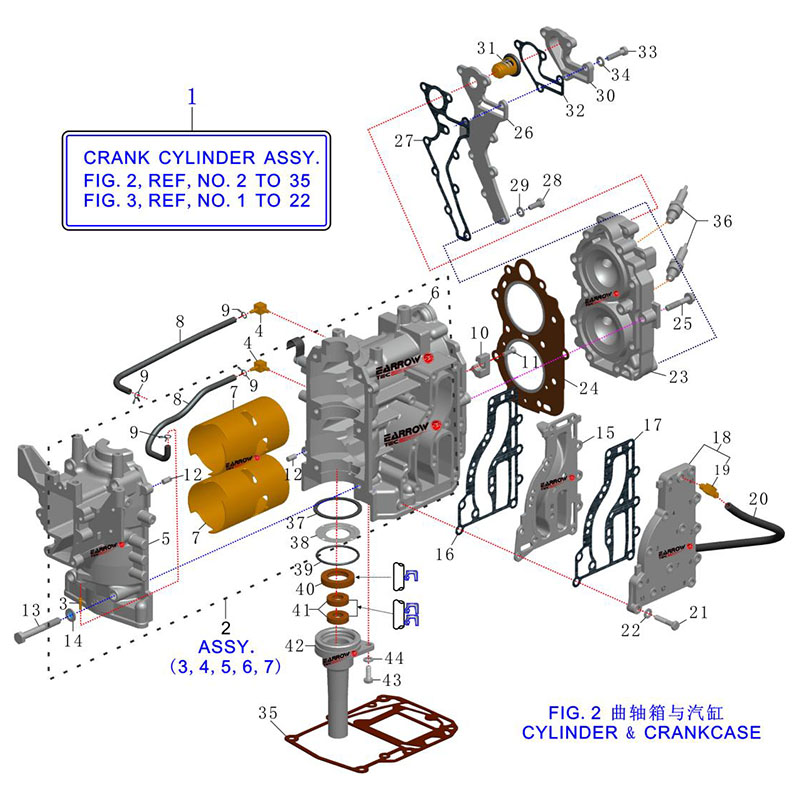

| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |
| Gbr.2-1 | ASSY.PT15-02001 | 6B4-W0090-00-1S | engkol silinder assy |
| Gbr.2-2 | ASSY.PT15-02002 | 6B4-15100-00 | kotak engkol assy |
| Gbr.2-3 | PT5-04002 | 624-14485-00 | sambungan paip |
| Gbr.2-4 | PT15-02004 | 650-14485-03 | sambungan paip |
| Gbr.2-5 | PT15-02002-1 | T/A | |
| Gbr.2-6 | PT15-02002-2 | T/A | |
| Gbr.2-7 | PT15-02002-3 | T/A | |
| Gbr.2-8 | PT15-02005 | 90445-07M08 | hos（L220） |
| Gbr.2-9 | PT5-08001 | 90467-06016 | klip Φ6 |
| Gbr.2-10 | PT15-02007 | 682-11325-00 | anod |
| Gbr.2-11 | GB/T819.1M516 | 98780-05015 | benam kaunter skru |
| Gbr.2-12 | PT5-03002 | 93606-12019 | pin dowel |
| Gbr.2-13 | GB /T5782M860 | 90119-08M07 | bolt M8*60 |
| Gbr.2-14 | GB/T97.1D8 | 92900-08600 | mesin basuh Φ8.5XΦ16X1.5 |
| Gbr.2-15 | PT15-02011 | 63V-41111-00-1S | ekzos penutup dalam |
| Gbr.2-16 | PT15-02012 | 6B4-41112-A0 | penutup dalam ekzos gasket |
| Gbr.2-17 | PT15-02013 | 63V-41112-A0 | penutup dalam ekzos gasket |
| Gbr.2-18 | PT15-02014 | 63V-41113-00-1S | penutup luar ekzos |
| Gbr.2-19 | PT15-02015 | 676-11372-00 | hos puting |
| Gbr.2-20 | PT15-02016 | 90445-09104 | hos（L300） |
| Gbr.2-21 | GB/T5782M630 | 90119-06MA4 | bolt M6*30 |
| Gbr.2-22 | GB/T97.1D6 | 920903-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.2-23 | 6B4-11111-00-1S | kepala silinder 1 | |
| Gbr.2-24 | PT15-02019 | 63V-11181-A2 | kepala silinder gasket1 |
| Gbr.2-25 | PT15-02020 | 90105-07M05 | bebibir bolt M7*35 |
| Gbr.2-26 | PT15-02021 | 6B4-11191-00-1S | penutup kepala silinder1 |
| Gbr.2-27 | PT15-02022 | 6B4-11193-A1 | penutup kepala gasket1 |
| Gbr.2-28 | GB/T5783M616 | 90119-06023 | bolt M6*16 |
| Gbr.2-29 | GB/T97.1D6 | 920903-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.2-30 | PT15-02024 | 682-12413-00-1S | penutup termostat |
| Gbr.2-31 | PT3-14003 | 6E5-12411-02 | termostat |
| Gbr.2-32 | PT15-02027 | 682-12414-A1 | penutup gasket |
| Gbr.2-33 | GB/T5783M625 | 90119-06MA3 | bolt M6*25 |
| Gbr.2-34 | GB/T97.1D6 | 920903-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.2-35 | PT15-02029 | 6B4-11351-A1 | silinder gasket |
| Gbr.2-36 | PT15-02030 | 94702-00160 | palam percikan （NGKBR8HS） |
| Gbr.2-37 | PT15-03029 | 90201-46M29 | pinggan basuh |
| Gbr.2-38 | PT15-03028 | 63V-11445-00 | pengatur jarak |
| Gbr.2-39 | PT15-03002 | 93210-46M16 | O-cincin |
| Gbr.2-40 | PT15-03003 | 93102-25010 | meterai minyak Φ25*Φ38*7 |
| Gbr.2-41 | PT15-03004 | 93101-13M27 | meterai minyak Φ13*Φ25*6 |
| Gbr.2-42 | PT15-03001 | 6B4-15396-00-CA | pengedap minyak perumahan |
| Gbr.2-43 | GB/T5783M616 | 90119-06023 | bolt M6*16 |
| Gbr.2-44 | GB/T97.1D6 | 920903-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |
| Gbr.3-1 | PT15-03007 | 6B4-11400-00 | assy aci engkol |
| Gbr.3-2 | PT15-03008 | 63V-11412-00 | engkol1 |
| Gbr.3-3 | PT15-03009 | 63V-11422-01 | engkol2 |
| Gbr.3-4 | PT15-03010 | 63V-11432-02 | engkol3 |
| Gbr.3-5 | PT15-03011 | 63V-11442-03 | engkol4 |
| Gbr.3-6 | 6205/P53YA | 93306-205A1 | galas Φ25*Φ52*15 |
| Gbr.3-7 | 205X2NXW3( | 93390-00029 | galas Φ25*Φ52*15 |
| Gbr.3-8 | PT15-03014 | 63V-11515-02 | labirin meterai |
| Gbr.3-9 | PT15-03015 | 682-11681-00 | engkol pin1 |
| Gbr.3-10 | PT15-03016 | 6K4-11651-00 | batang menyambung |
| Gbr.3-11 | PT15-03017 | 93310-620W5 | bearing |
| Gbr.3-12 | PT15-03018 | 90209-20M23 | mesin basuh |
| Gbr.3-13 | PT15-03020 | 92440-52009 | lilitan |
| Gbr.3-14 | PT15-03021 | 6E7-11631-00-97 | omboh |
| Gbr.3-15 | ASSY.PT15-03022 | 682-11610-01 | gelang omboh |
| Gbr.3-16 | PT15-03022-2 | T/A | gelang omboh |
| Gbr.3-17 | PT15-03022-1 | T/A | gelang omboh |
| Gbr.3-18 | PT15-03023 | 634-11633-00 | pin omboh |
| Gbr.3-19 | PT15-03024 | 93602-14104 | pin dowel |
| Gbr.3-20 | PT15-03025 | 90201-14377 | pinggan basuh |
| Gbr.3-21 | PT15-03026 | 93450-15023 | klip pin omboh |
| Gbr.3-22 | PT15-03027 | 93110-23M00 | meterai minyak Φ23*Φ36*13 |
| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |

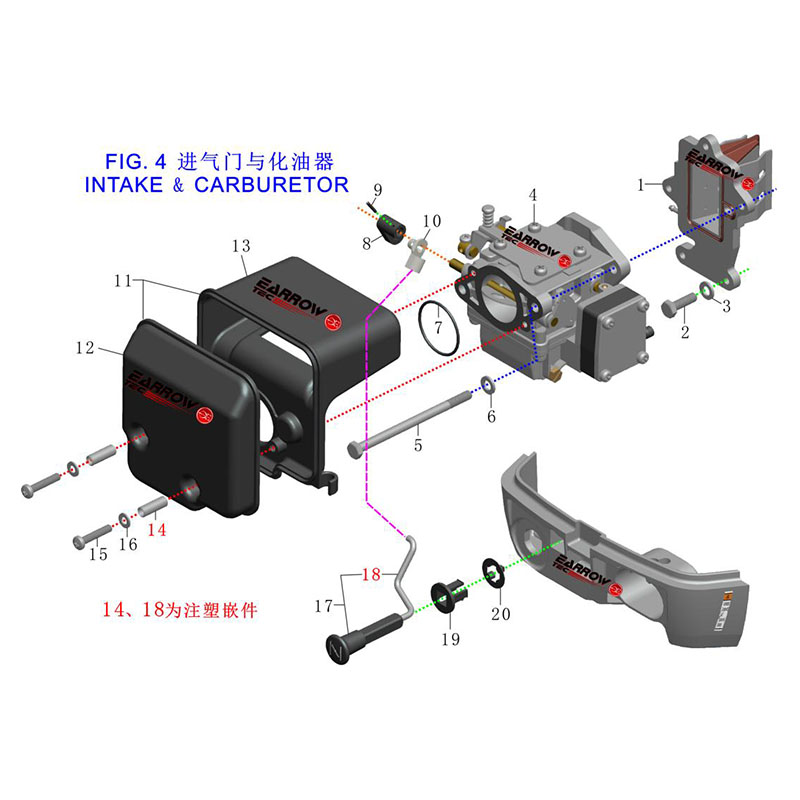

| Gbr.4-1 | PT15-04001 | 63V-13610-10 | injap buluh assy |
| Gbr.4-2 | GB/T5783M620 | 97095-06020 | bolt M6*20 |
| Gbr.4-3 | GB/T97.1D6 | 92995-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.4-4 | PT15-05001 | 6B3-14301-00 | karburetor assy. |
| Gbr.4-5 | GB/T5782M695 | 97013-06035 | bolt M6*95 |
| Gbr.4-6 | GB/T97.1D6 | 92995-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.4-7 | PT15-04009 | 93210-35M86 | O cincin Φ1.8XΦ37 |
| Gbr.4-8 | PT15-04014 | 6B4-41252-00 | tercekik tuil1 |
| Gbr.4-9 | GB/T879.2D450 | 91690-20010 | pin spring Φ2X12 |
| Gbr.4-10 | PT15-04013 | 6B4-41262-00 | tuil tercekik sendi |
| Gbr.4-11 | PT15-04005 | 6B4-14440-00 | penyenyap assy. pengambilan |
| Gbr.4-12 | PT15-04005-2 | T/A | |
| Gbr.4-13 | PT15-04005-3 | T/A | |
| Gbr.4-14 | PT15-04005-1 | T/A | |
| Gbr.4-15 | GB/T822M525 | 90159-05007 | kepala kuali skru M5*25 |
| Gbr.4-16 | GB/T97.1D5 | mesin basuh Φ5XΦ10X1 | |
| Gbr.4-17 | PT15-04010 | 6B4-41271-01 | tombol tercekik |
| Gbr.4-18 | PT15-04010-1 | T/A | |
| Gbr.4-19 | PT15-04011 | 6B4-41273-00 | grommet |
| Gbr.4-20 | PT15-04012 | 6B4-41274-00 | grommet2 |
| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |

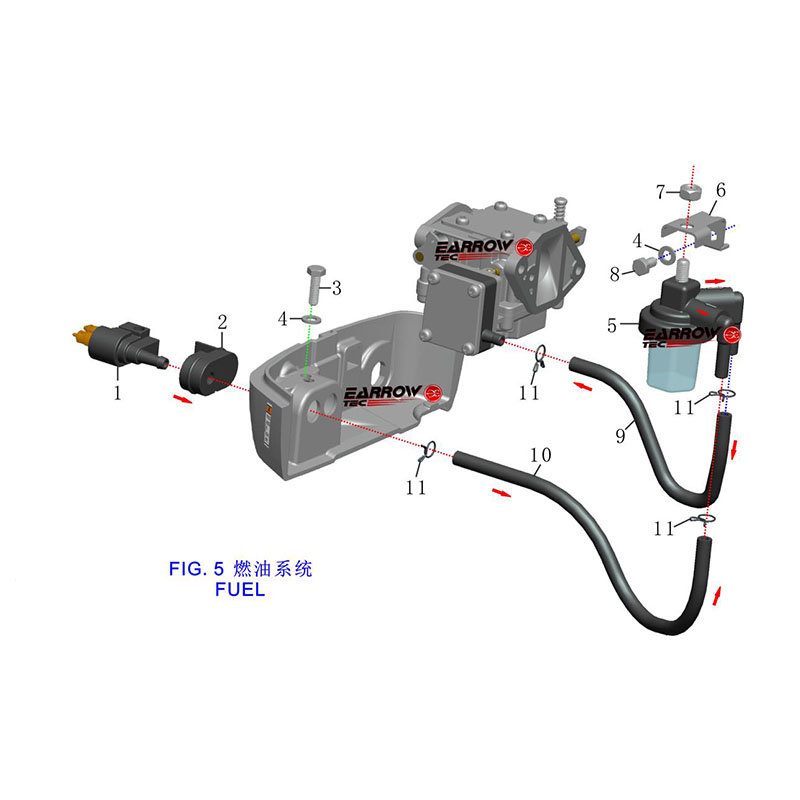

| Gbr.5-1 | PT5-14033 | 6G1-24304-02 | komp sambungan paip api |
| Gbr.5-2 | PT15-06014 | 6B4-24329-00 | meterai |
| Gbr.5-3 | GB/T5783M620 | 97095-06020 | bolt M6*20 |
| Gbr.5-4 | GB/T97.1D6 | 92995-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.5-5 | PT5-14041 | 61N-24560-00 | penapis assy. |
| Gbr.5-6 | PT15-06012 | 648-24566-02 | penapis kurungan |
| Gbr.5-7 | GB/T6170M8 | 95380-08600 | kacang M8 |
| Gbr.5-8 | GB/T5783M612 | 97013-06014 | bolt M6*12 |
| Gbr.5-9 | PT15-06010 | 90445-09M00 | paip Φ9XΦ5XL180 |
| Gbr.5-10 | PT15-06009 | 90445-09104 | paip Φ9XΦ5XL300 |
| Gbr.5-11 | PT5-08007 | 90467-08004 | klip Φ9 |
| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |

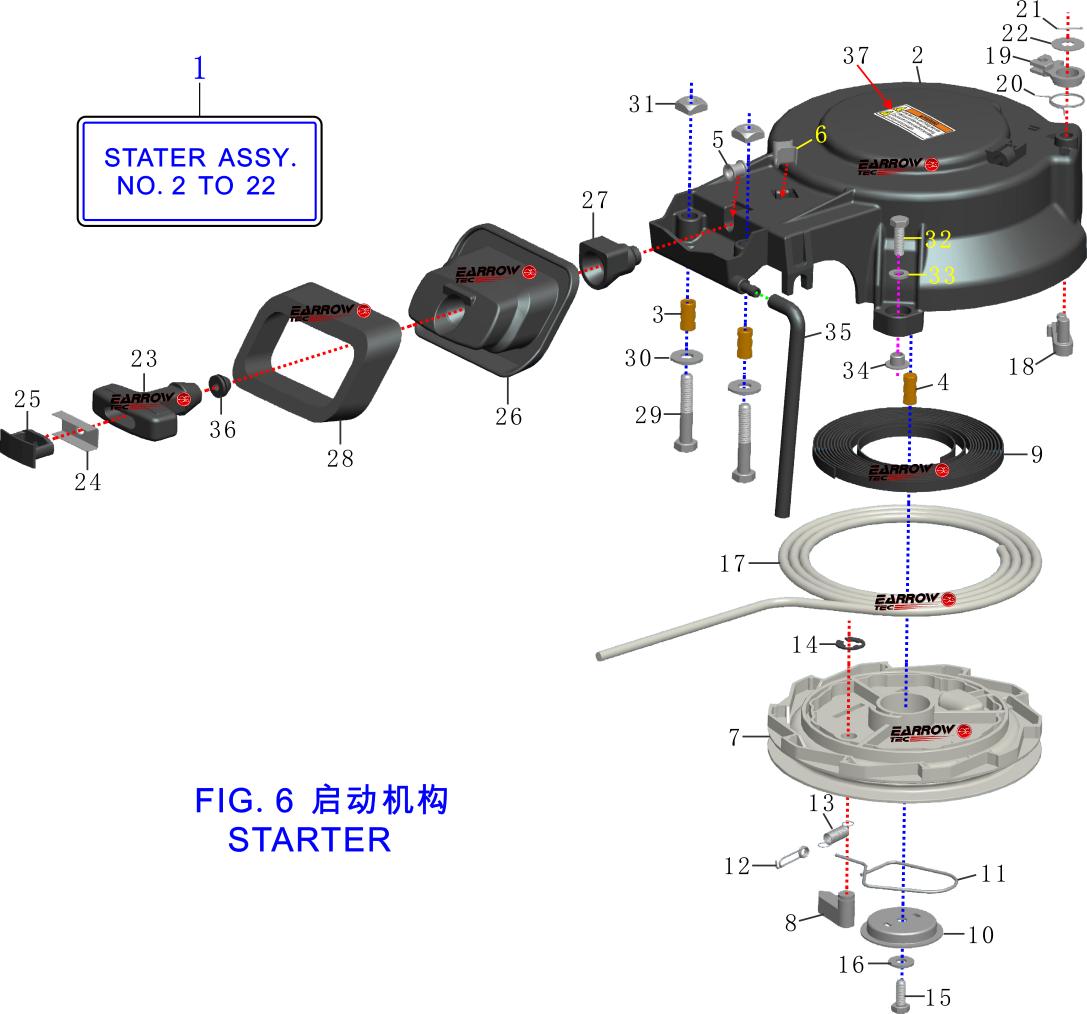

| Gbr.6-1 | ASSY.PT15-07001 | 6B4-15710-00 | stater assy. |
| Gbr.6-2 | PT15-07002 | 6B4-15711-00 | stater kes |
| Gbr.6-3 | PT15-07002-1 | T/A | |
| Gbr.6-4 | PT15-07002-2 | T/A | |
| Gbr.6-5 | PT15-07003 | 63V-15764-00 | kolar1 |
| Gbr.6-6 | PT15-07004 | 68T-15764-00 | kolar2 |
| Gbr.6-7 | PT15-07005 | 63V-15714-00 | berkas drum |
| Gbr.6-8 | PT15-07006 | 63V-15741-00 | pawl drive |
| Gbr.6-9 | PT15-07007 | 63V-15713-00 | stater musim bunga |
| Gbr.6-10 | PT15-07008 | 63V-15716-00 | pemacu plat |
| Gbr.6-11 | PT15-07009 | 63V-15705-01 | pawel pemacu musim bunga |
| Gbr.6-12 | PT15-07010 | 63V-15767-01 | musim bunga |
| Gbr.6-13 | PT15-07011 | 68T-15784-00 | musim bunga kembali |
| Gbr.6-14 | GB/T896D8 | 63V-15744-00 | lilitan Φ8 |
| Gbr.6-15 | GB/T5783M616 | 90119-06023 | bolt M6*16 |
| Gbr.6-16 | GB/T96.1D6 | mesin basuh Φ6.5XΦ16X1.5 | |
| Gbr.6-17 | PT15-07014 | pemula wayar L1800mm | |
| Gbr.6-18 | PT15-07015 | 63V-15794-00 | penyumbat |
| Gbr.6-19 | PT15-07016 | 63V-15748-00 | henti pemula pelocok |
| Gbr.6-20 | PT15-07017 | 63V-15734-00 | musim bunga kembali |
| Gbr.6-21 | GB/T91D1.212 | 91490-16018 | pin cotter |
| Gbr.6-22 | PT15-07019 | 63V-15726-00 | mesin basuh rata |
| Gbr.6-23 | PT5-02010 | 6G1-15755-00 | pemula pemegang |
| Gbr.6-24 | PT5-02010-1 | T/A | |
| Gbr.6-25 | PT5-02009 | 6G1-15779-00 | penutup |
| Gbr.6-26 | PT15-07022 | 6B4-15758-10 | panduan paus |
| Gbr.6-27 | PT15-07022-1 | T/A | |
| Gbr.6-28 | PT15-07023 | 6B4-15762-00 | getah kedap2 |
| Gbr.6-29 | GB/T5782M635 | 97095-06035 | bolt M6*35 |
| Gbr.6-30 | GB/T97.1D6 | 92995-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.6-31 | PT15-07026 | 90173-06009 | segi empat kacang |
| Gbr.6-32 | GB/T5783M620 | 90119-06M82 | bolt M6*20 |
| Gbr.6-33 | GB/T97.1D6 | 92995-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.6-34 | PT15-07033 | paip | |
| Gbr.6-35 | PT15-07028 | 6J8-24311-00 | api paip1 |
| Gbr.6-36 | PT15-07029 | 6A0-15780-00 | peredam |
| Gbr.6-37 | PT15-07031 | 6AH-81995-40 | amaran label |
| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |
| Gbr.7-1 | PT15-08001 | 6B4-85550-01 | pemutar assy |
| Gbr.7-2 | PT15-08002 | 6B4-85550-00 | nadi gegelung |
| Gbr.7-3 | PT15-08003 | 6B4-85520-00 | caj gegelung |
| Gbr.7-4 | PT15-08004 | 63V-85533-00 | pencahayaan gegelung |
| Gbr.7-5 | GB/T5783M616 | 97095-06016 | bolt M6*16 |
| Gbr.7-6 | GB/T97.1D6 | 92995-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.7-7 | GB/T5783M620 | 97095-06020 | bolt M6*20 |
| Gbr.7-8 | PT15-08010 | 90387-06M24 | kolar Φ6.5XΦ10X13.2 |
| Gbr.7-9 | GB/T5782M630 | 90119-06M40 | bolt M6*30 |
| Gbr.7-10 | PT15-08013 | 90280-05013 | woodruff kunci |
| Gbr.7-11 | PT15-08014 | 90170-12066 | kacang M12 |
| Gbr.7-12 | PT15-08015 | 90201-12472 | pinggan basuh |
| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |

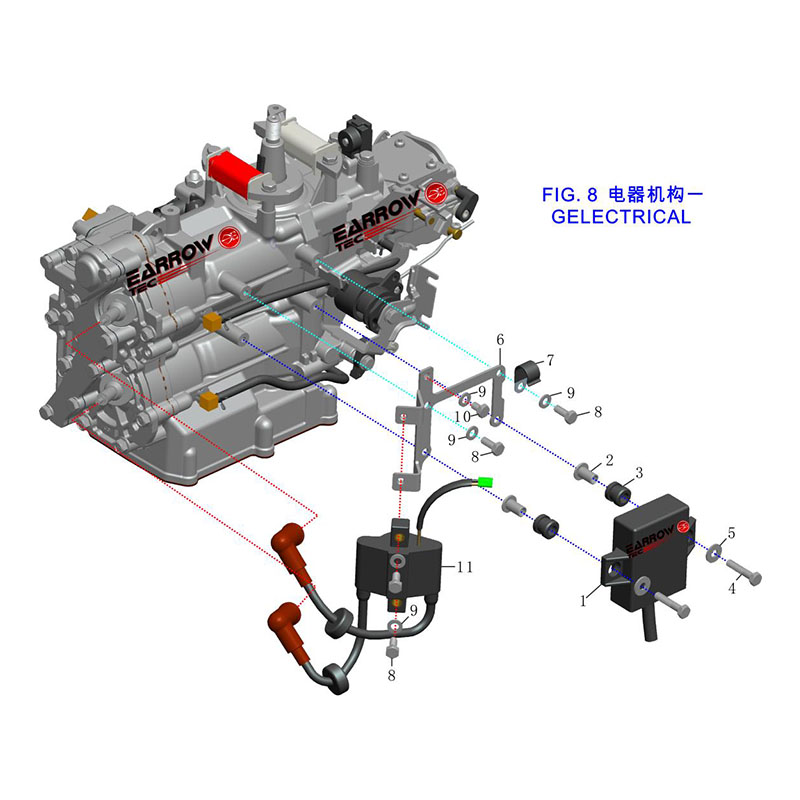

| Gbr.8-1 | PT15-09001 | 6B4-85540-03 | Unit CDI assy |
| Gbr.8-2 | PT3-04001 | 624-42542-00 | paip |
| Gbr.8-3 | PT3-06003 | 61N-82317-00 | gegelung pencucuhan peredam |
| Gbr.8-4 | GB/T5782M630 | 90119-06M40 | bolt M6*30 |
| Gbr.8-5 | GB/T96D6 | 90201-06M30 | mesin basuh Φ6.5XΦ16X1.5 |
| Gbr.8-6 | PT15-09015 | 6B4-82316-00 | gegelung penyalaan pendakap |
| Gbr.8-7 | PT15-09018 | 90465-08M99 | pengapit |
| Gbr.8-8 | GB/T5783M616 | 97095-06014 | bolt M6*16 |
| Gbr.8-9 | GB/T97.1D6 | 92995-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.8-10 | GB/T5783M610 | 97095-06010 | bolt M6*10 |
| Gbr.8-11 | PT15-09004 | 6B4-85570-00 | assy gegelung pencucuhan |

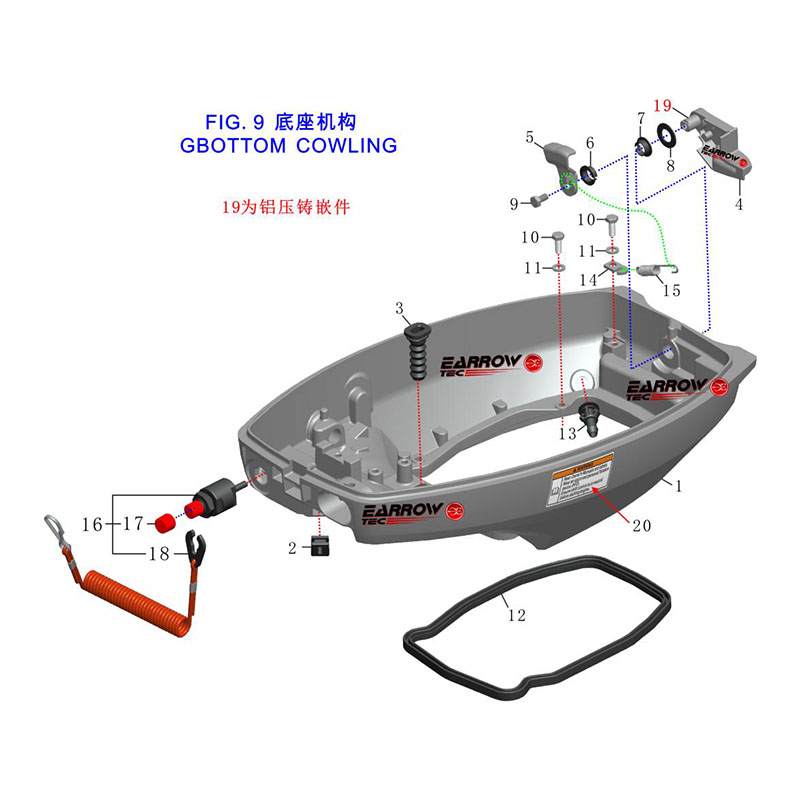

| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |
| Gbr.9-1 | PT15-10001 | 6B4-42711-00-4D | bawah cowling |
| Gbr.9-2 | PT15-10002 | 61N-26326-00 | grommet |
| Gbr.9-3 | 15-10003 | 61N-26326-00 | grommet |
| Gbr.9-4 | PT15-10004 | 6B4-42815-00-4D | pengapit tuil |
| Gbr.9-5 | PT15-10005 | 6B4-42816-00 | pengapit tuil |
| Gbr.9-6 | PT5-02015 | 90386-12M45 | semak belukar |
| Gbr.9-7 | PT5-02015 | 90386-12MA2 | semak belukar |
| Gbr.9-8 | GB/T955D12 | 90206-12052 | gelombang pencuci Φ12 |
| Gbr.9-9 | GB/T5783M612 | 97095-06014 | bolt M6*12 |
| Gbr.9-10 | GB/T5783M616 | 97095-06014 | bolt M6*16 |
| Gbr.9-11 | GB/T97.1D6 | 92995-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.9-12 | PT15-10012 | 6B4-42716-00 | getah kedap1 |
| Gbr.9-13 | PT15-10013 | 6BL-44391-00 | hos puting |
| Gbr.9-14 | PT15-10014 | 66T-43144-00 | spring cangkuk |
| Gbr.9-15 | PT15-10016 | 90506-18009 | ketegangan musim bunga |
| Gbr.9-16 | PF4-12001 | 6E9-82575-02 | suis berhenti enjin assy. |
| Gbr.9-17 | PT30-11022 | 689-8257Y-00 | topi |
| Gbr.9-18 | PT5-07008-1 | 682-82556-00 | penyumbat |
| Gbr.9-19 | PT15-10004-1 | T/A |
| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |

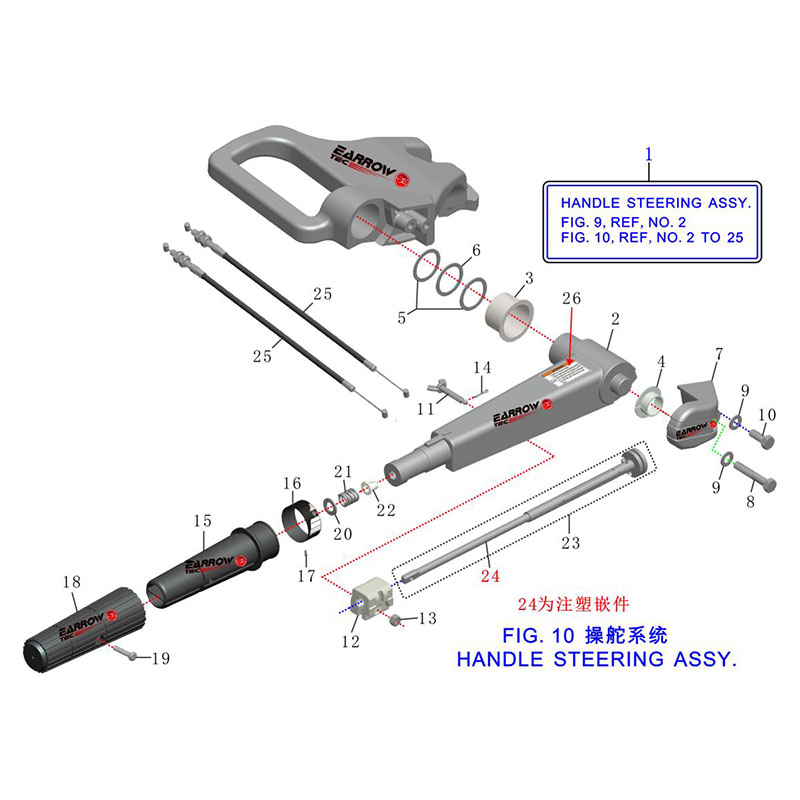

| Gbr.10-1 | PT15-11025 | mengendalikan assy stereng | |
| Gbr.10-2 | PT15-11001 | 6B4-42111-00-4D | mengendalikan stereng |
| Gbr.10-3 | PT15-11002 | 90381-35001 | semak padat |
| Gbr.10-4 | PT15-11003 | 90381-20001 | semak padat |
| Gbr.10-5 | PT30-12005 | 90201-28013 | pinggan basuh |
| Gbr.10-6 | GB/T955D27 | 90206-28001 | gelombang pencuci Φ27 |
| Gbr.10-7 | PT15-11006 | 6B4-42131-00-4D | stereng pemegang penutup |
| Gbr.10-8 | GB /T5782M845 | 97095-018045 | bolt M8*45 |
| Gbr.10-9 | GB/T97.1D8 | 92995-08600 | mesin basuh Φ8.5XΦ16X1.5 |
| Gbr.10-10 | GB/T5783M820 | 97075-08020 | bolt M8*20 |
| Gbr.10-11 | PT15-11011 | 6B4-42125-00 | pelarasan geseran bolt |
| Gbr.10-12 | PT15-11012 | 6B4-42126-00 | cengkaman pemegang stereng geseran |
| Gbr.10-13 | GB/T 6172.2M6 | 90185-06062 | kacang mengunci diri |
| Gbr.10-14 | GB/T91D212 | 91490-16018 | pin cotter |
| Gbr.10-15 | 15-11015 | 6B4-42119-00 | pemegang stereng cengkaman |
| Gbr.10-16 | PT5-12012 | 6G1-42137-10 | pendikit penunjuk |
| Gbr.10-17 | GB/T827D25 | 90269-02M09 | rivet Φ2X5 |
| Gbr.10-18 | PT3-06014 | 6G1-42177-00 | pemegang getah |
| Gbr.10-19 | GB/T820M525 | 90149-05M13 | skru M5*25 |
| Gbr.10-20 | PT3-03047 | 92903-10600 | pinggan basuh |
| Gbr.10-21 | PT5-08008 | 90501-23215 | pemampatan spring |
| Gbr.10-22 | PT3-02026 | 90386-08032 | semak belukar |
| Gbr.10-23 | PT15-11023 | 6B4-42136-00 | pendikit tuil |
| Gbr.10-24 | PT15-11023-1 | T/A | |
| Gbr.10-25 | PT15-11024 | 6B4-26301-00 | kabel pendikit assy |
| Gbr.10-26 | PT30-12025 | 6E0-83627-41 | label berhati-hati7 |
| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |
| Gbr.11-1 | PT15-12001 | 63V-14497-02 | tinggal wayar pendikit |
| Gbr.11-2 | PT15-12002 | 90387-06M50 | kolar Φ6.5*Φ12*49 |
| Gbr.11-3 | GB/T5782M665 | 95895-06065 | bolt M6*65 |
| Gbr.11-4 | GB/T97.1D6 | 92995-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.11-5 | GB/T5783M612 | 97095-06014 | bolt M6*12 |
| Gbr.11-6 | PT15-12006 | 6B4-41283-00 | tuil percuma accel |
| Gbr.11-7 | PT15-12007 | 90508-20M38 | kilasan musim bunga |
| Gbr.11-8 | PT15-12008 | 63V-41211-00 | pautan accel |
| Gbr.11-9 | PT15-12009 | 6J8-41262-00 | tuil tercekik sendi |
| Gbr.11-10 | PT15-12010 | 6B4-41638-00 | takal |
| Gbr.11-11 | PT15-12011 | 6B4-44111-00-4D | mengendalikan penukaran gear |
| Gbr.11-12 | PT15-12011-1 | T/A | |
| Gbr.11-13 | PT15-12012 | 6B4-44121-00 | rod peralihan tuil |
| Gbr.11-14 | GB/T845ST4219 | 97780-40520 | mengetuk skru ST4.2X19 |
| Gbr.11-15 | PT15-12014 | 6B4-44125-00 | rod peralihan tuil |
| Gbr.11-16 | PT15-12016 | 6B4-44116-00 | musim bunga |
| Gbr.11-17 | GB/T5783M616 | 90109-06M80 | bolt M6*16 |
| Gbr.11-18 | PT15-12018 | 6B4-44143-00 | anjakan rod |
| Gbr.11-19 | GB/T41M6 | 95380-06600 | kacang heksagon M6 |
| Gbr.11-20 | PT30-13047 | 61N-44146-00 | rod anjakan penyambung |
| Gbr.11-21 | PT15-12021 | 6B4-41662-00 | kurungan2 |
| Gbr.11-22 | GB/T5783M625 | 90119-06M17 | bolt M6*25 |
| Gbr.11-23 | PT15-12023 | 6B4-15746-00 | lengan |
| Gbr.11-24 | PT15-12024 | 90387-06M06 | kolar Φ6.5*Φ8*11 |
| Gbr.11-25 | PT15-12025 | 90508-08M39 | kilasan musim bunga |
| Gbr.11-26 | GB/T5783M620 | 97095-06020 | bolt M6*20 |
| Gbr.11-27 | PT15-12028 | 6L2-15747-00 | pautan |
| Gbr.11-28 | PT4-14030 | 6J8-41262-00 | tuil tercekik sendi |
| Gbr.11-29 | PT15-12030 | 6B4-15770-00 | hentian pemula kabel comp |
| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |

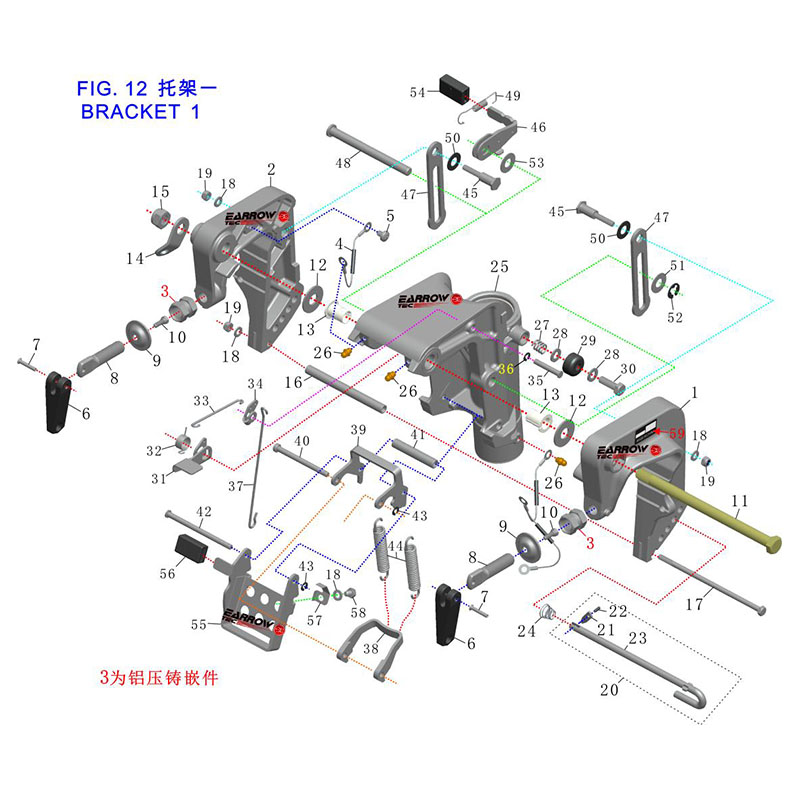

| Gbr.12-1 | PT15-13001 | 682-43111-05-4D | pengapit kurungan1 |
| Gbr.12-2 | PT15-13002 | 682-43112-05-4D | pengapit kurung2 |
| Gbr.12-3 | PT15-13002-1 | T/A | |
| Gbr.12-4 | PT15-13003 | 6E5-82148-00 | wayar plumbum4 |
| Gbr.12-5 | GB/T822M68 | 97885-06008 | kepala kuali skru M6*8 |
| Gbr.12-6 | PT5-02028 | 6E0-43118-01 | pemegang pengapit transom |
| 15-13063 | |||
| Gbr.12-7 | GB/T1015D424 | 90243-04M01 | pin Φ4*24 |
| Gbr.12-8 | PT30-15005 | 90149-14030 | skru M14*2*48*L70 |
| Gbr.12-9 | PT5-05015 | 648-43114-01 | pengapit pad transom |
| Gbr.12-10 | PT5-03040-1 | 90109-06M12 | bolt M5*10*13.8 |
| Gbr.12-11 | PT15-13009 | 90101-12013 | bolt |
| Gbr.12-12 | PT15-13010 | 90201-12018 | plat pencuci Φ13*Φ32*2 |
| Gbr.12-13 | PT15-13011 | 90381-12001 | semak padat |
| Gbr.12-14 | PT15-13012 | 6B4-43113-00 | kurungan pengapit plat |
| Gbr.12-15 | GB/6185M121.25 | 95780-12300 | nat mengunci sendiri M12*1.25 |
| Gbr.12-16 | PT15-13014 | 90387-06M13 | kolar Φ6.2*Φ10.2*108.4 |
| Gbr.12-17 | GB/T5782M6145 | 90101-06M29 | bolt M6*145 |
| Gbr.12-18 | GB/T97.1D6 | 92995-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.12-19 | GB/6186M6 | 95380-06700 | nat mengunci sendiri M6 |
| Gbr.12-20 | PT15-13018 | 689-43160-00 | tilt rod assy |
| Gbr.12-21 | PT5-05018 | 689-43165-00 | kunci kecondongan plat |
| Gbr.12-22 | GB/T879.2D38 | 91690-30008 | pin spring Φ3X8 |
| Gbr.12-23 | PT15-13018-1 | T/A | batang condong |
| Gbr.12-24 | PT30-15022 | 90502-10M07 | spring kon |
| Gbr.12-25 | 15-13022 | 682-43311-07-4D | pusing kurungan |
| Gbr.12-26 | PT5-03038 | 93700-06M03 | lemak puting |
| Gbr.12-27 | PT15-13024 | 90501-18M00 | pemampatan spring |
| Gbr.12-28 | GB/T97.1D8 | 92990-08600 | mesin basuh Φ8.5XΦ16X1.5 |
| Gbr.12-29 | PT15-13026 | 676-43373-00 | peredam meterai |
| Gbr.12-30 | GB/T5783M830 | 97075-08025 | bolt M8*30 |
| Gbr.12-31 | PT15-13028 | 6B4-43631-00 | kecondongan tuil |
| Gbr.12-32 | PT15-13029 | 90508-14018 | kilasan musim bunga |
| Gbr.12-33 | PT15-13030 | 682-43616-00 | kunci kecondongan batang |
| Gbr.12-34 | PT15-13031 | 682-43641-01 | kecondongan tuil |
| Gbr.12-35 | PT15-13032 | 90249-06M23 | pin Φ6X35.3 |
| Gbr.12-36 | GB/T896D5 | 99080-05600 | lilitan Φ5 |
| Gbr.12-37 | PT15-13034 | 682-43617-00 | kunci kecondongan batang |
| Gbr.12-38 | PT15-13035 | 682-43614-01 | kunci kecondongan plat 1 |
| Gbr.12-39 | PT15-13036 | 682-43615-02 | kunci kecondongan plat 2 |
| Gbr.12-40 | PT15-13037 | 682-42611-01 | kunci kecondongan aci Φ6X70.3 |
| Gbr.12-41 | PT15-13038 | 90387-06M20 | kolar Φ6.5*Φ10.5*58.2 |
| Gbr.12-42 | PT15-13039 | 682-43659-01 | kunci terbalik aci Φ6X88.8 |
| Gbr.12-43 | GB/T896D5 | 99080-05600 | lilitan Φ5 |
| Gbr.12-44 | PT15-13041 | 90506-26M01 | ketegangan musim bunga |
| Gbr.12-45 | PT15-13042 | 90109-06M05 | bolt |
| Gbr.12-46 | PT15-13043 | 6B4-43181-00 | henti kecondongan tuil1 |
| Gbr.12-47 | PT15-13044 | 6B4-43627-00 | penyumbat |
| Gbr.12-48 | PT15-13045 | 90249-10003 | pin Φ9.8X110 |
| Gbr.12-49 | PT15-13046 | 90506-12002 | ketegangan musim bunga |
| Gbr.12-50 | GB/T955D10 | 90206-10M24 | gelombang pencuci Φ10.5*Φ21*3 |
| Gbr.12-51 | PT15-13050 | 90202-10M56 | mesin basuh Φ10.5XΦ23.5X1 |
| Gbr.12-52 | GB/T896D9 | 99080-09600 | lilitan Φ9 |
| Gbr.12-53 | PT15-13050 | 90202-10M56 | mesin basuh Φ10.5XΦ23.5X1 |
| Gbr.12-54 | PT15-13052 | 682-43318-01 | penutup |
| Gbr.12-55 | PT15-13053 | 6B4-43681-00 | tuil pacuan air cetek1 |
| Gbr.12-56 | PT15-13054 | 682-43318-01 | penutup |
| Gbr.12-57 | PT15-13055 | 682-43643-00 | musim bunga |
| Gbr.12-58 | GB/T5783M68 | 97095-06008 | bolt M6*8 |
| Gbr.12-59 | PT30-15001-1 | ||
| Gbr.12-60 | 15-13022-1 | ||
| Gbr.12-61 | 15-13063 |
| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |

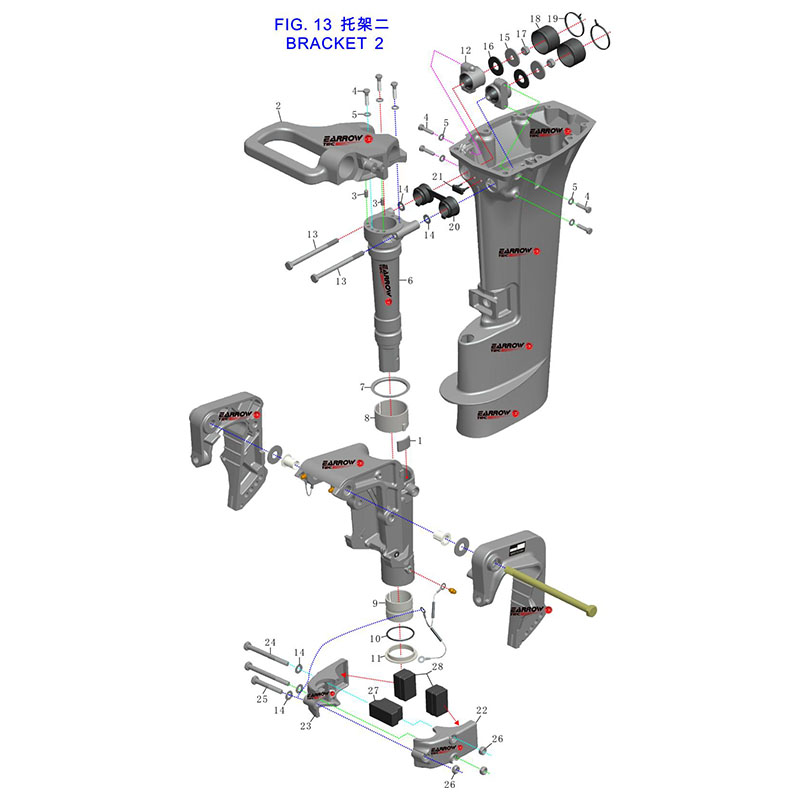

| Gbr.13-1 | PT15-14001 | 648-42528-00 | geseran plat |
| Gbr.13-2 | PT15-14002 | 6B 4-42511-00-4D | stereng kurungan |
| Gbr.13-3 | PT5-03002 | 93606-12019 | pin dowel |
| Gbr.13-4 | GB/T5783M625 | 90119-06M17 | bolt M6*25 |
| Gbr.13-5 | GB/T97.1D6 | 92995-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.13-6 | PT15-14006 | 682-42521-00-94 | pangsi stereng aci |
| Gbr.13-7 | PT15-14007 | 90209-52M01 | mesin basuh |
| Gbr.13-8 | PT15-14008 | 682-42537-00 | aci pangsi sesendal |
| Gbr.13-9 | PT15-14009 | 90386-40M09 | semak belukar |
| Gbr.13-10 | PT15-14010 | 93210-40M10 | O-cincin |
| Gbr.13-11 | PT15-14011 | 90386-40M08 | semak belukar |
| Gbr.13-12 | PT15-14012 | 682-44514-01-94 | lekapkan bahagian atas peredam |
| Gbr.13-13 | GB /T5782M8110 | 90101-08M30 | bolt M8*110 |
| Gbr.13-14 | GB/T97.1D8 | 92995-08600 | mesin basuh Φ8.5XΦ16X1.5 |
| Gbr.13-15 | PT15-14017 | 90201-08M13 | plat pencuci Φ8.5XΦ32X2.5 |
| Gbr.13-16 | PT15-14018 | 90202-13M02 | pinggan basuh |
| Gbr.13-17 | GB/6186M8 | 90185-08057 | nat mengunci sendiri M8 |
| Gbr.13-18 | PT15-14020 | 682-44522-01 | meterai |
| Gbr.13-19 | PT15-14021 | 90465-11M52 | pengapit |
| Gbr.13-20 | PT15-14022 | 682-44521-01 | meterai |
| Gbr.13-21 | PT15-15020 | 682-44532-00 | lekap atas penyumbat |
| Gbr.13-22 | PT15-14023 | 682-44551-02-4D | getah pelekap bawah perumahan1 |
| Gbr.13-23 | PT15-14024 | 682-44552-02-5D | getah pelekap bawah perumahan2 |
| Gbr.13-24 | GB /T5782M885 | 90119-08M45 | bolt M8*85 |
| Gbr.13-25 | GB /T5782M855 | 97575-08555 | bolt M8*55 |
| Gbr.13-26 | GB/T6170M8 | 95380-08600 | kacang M8 |
| Gbr.13-27 | PT15-14028 | 682-44557-00 | lekapkan peredam bahagian hadapan bawah |
| Gbr.13-28 | PT15-14029 | 682-44555-00 | lekapkan peredam bahagian bawah |
| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |

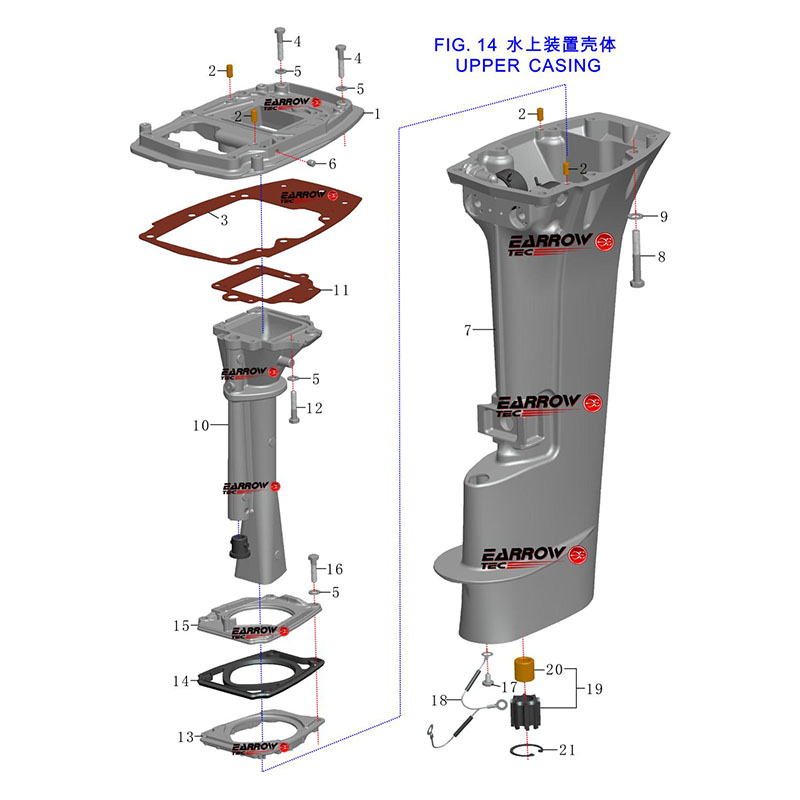

| Gbr.14-1 | PT15-15001 | 6B4-41137-00-CA | panduan ekzos |
| Gbr.14-2 | PT5-03002 | 93606-12019 | pin dowel |
| Gbr.14-3 | PT15-15003 | 682-45113-A2 | selongsong atas gasket |
| Gbr.14-4 | GB/T5782M630 | 90119-06M95 | bolt M6*30 |
| Gbr.14-5 | GB/T97.1D6 | 92995-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.14-6 | PT15-15030 | ||
| Gbr.14-7 | PT15-15006 | 682-45111-05-4D | bahagian atas selongsong |
| PT15-15006-1 | 682-45111-15-4D | bahagian atas selongsong | |
| Gbr.14-8 | GB /T5782M850 | 97575-08550 | bolt M8*50 |
| Gbr.14-9 | GB/T97.1D8 | 92995-08600 | mesin basuh Φ8.5XΦ16X1.5 |
| Gbr.14-10 | PT15-15008 | 6B4-41131-00-CA | manifold ext1 |
| Gbr.14-11 | PT15-15009 | 682-41133-A0 | manifold ekzos gasket |
| Gbr.14-12 | GB/T5783M620 | 97095-06020 | bolt M6*20 |
| Gbr.14-13 | PT15-15012 | 682-45126-01-CA | peredam kedap plat |
| Gbr.14-14 | PT15-15013 | 682-45127-00 | meterai |
| Gbr.14-15 | PT15-15014 | 682-41116-00-CA | pelindung |
| Gbr.14-16 | GB/T5783M625 | 90119-06M17 | bolt M6*25 |
| Gbr.14-17 | GB/T822M68 | 97885-06008 | kepala kuali skru M6*8 |
| Gbr.14-18 | PT15-15017 | 6E7-82127-00 | wayar plumbum2 |
| Gbr.14-19 | PT15-15018 | 6B4-45318-00 | aci pemacu sesendal |
| Gbr.14-20 | PT15-15018-1 | T/A | |
| Gbr.14-21 | GB/T893.2D32 | 93420-30042 | lilitan Φ32 |
| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |
| Gbr.15-1 | ASSY.PT15-16001 | 6B4-45300-01-4D | unit bawah assy |
| Gbr.15-2 | PT15-16002 | 6E8-45311-01-4D | selongsong lebih rendah |
| Gbr.15-3 | PT15-16003 | 6B4-44150-00 | shift cam assy |
| Gbr.15-4 | PT15-16004 | 682-44147-00 | rod syif but |
| Gbr.15-5 | PT15-16003-1 | T/A | |
| PT15-16003-5 | |||
| Gbr.15-6 | GB/T879.2D2.514 | T/A | spring pin Φ2.5X14 |
| Gbr.15-7 | PT30-18062-3 | T/A | |
| Gbr.15-8 | PT15-16003-2 | T/A | |
| Gbr.15-9 | PT15-16005 | 682-44176-00 | kurungan |
| Gbr.15-10 | GB/T845ST4810 | 97780-50110 | mengetuk skru ST4.8X10 |
| Gbr.15-11 | PT15-16007 | 93315-314V8 | mengandungi NSK F-1420 |
| Gbr.15-12 | PT15-16008 | 6E7-45536-00 | aci pemacu lengan |
| Gbr.15-13 | PT15-16009 | 90209-14011 | mesin basuh Φ14.1XΦ28.8X3 |
| Gbr.15-14 | PT15-16010 | 6E8-45587-10 | shim（T：1.2mm） |
| Gbr.15-15 | PT15-16011 | 90201-15017 | pinggan basuh |
| Gbr.15-16 | PT15-16043 | 6E7-45560-01 | gear1（27T） |
| Gbr.15-17 | 4T-30205 | 93330-00005 | galas Φ25*Φ52*16.25 |
| Gbr.15-18 | PT5-03054 | 90340-08002 | palam skru lurus |
| Gbr.15-19 | PT5-14028 | 90340-08020 | gasket |
| Gbr.15-20 | PT5-03054-1 | 688-45341-10 | palam longkang |
| Gbr.15-21 | PT15-16016 | 93604-08062 | dowel pin Φ4*8 |
| Gbr.15-22 | PT5-03002 | 93606-12019 | pin dowel |
| Gbr.15-23 | PT15-16017 | 682-45376-01 | peredam meterai panduan |
| Gbr.15-24 | PT15-17010 | 682-45375-01 | meterai peredam |
| Gbr.15-25 | ASSY.PT15-16018 | 682-44300-40 | pam air perumahan assy |
| Gbr.15-26 | PT15-16018-1 | T/A | pam air perumahan |
| Gbr.15-27 | PT15-16019 | 682-44312-00 | penutup perumahan pam air |
| Gbr.15-28 | GB/T845ST4212 | 97780-40112 | mengetuk skru ST4.2X12 |
| Gbr.15-29 | PT15-16021 | 682-44365-00 | pengedap air peredam1 |
| Gbr.15-30 | PT15-16022 | 682-44322-41 | masukkan kartrij |
| Gbr.15-31 | PT15-16023 | 682-44352-03 | pendesak |
| Gbr.15-32 | PT15-16024 | 90280-03005 | woodruff kunci |
| Gbr.15-33 | PT15-16025 | 682-44315-A0 | pam air gasket |
| Gbr.15-34 | PT15-16026 | 682-44323-40 | kartrij plat luar |
| Gbr.15-35 | PT15-16027 | 682-45344-00 | tutup kedap minyak |
| Gbr.15-36 | GB/T5782M645 | 97095-06045 | bolt M6*45 |
| Gbr.15-37 | GB/T97.1D6 | 92995-06600 | mesin basuh Φ6.5XΦ12X1.5 |
| Gbr.15-38 | PT15-16029 | 682-44328-00 | pinggan |
| Gbr.15-39 | PT15-16030 | 6E7-45331-00-CA | galas perumahan |
| Gbr.15-40 | PT15-16031 | 626-45316-019 | aci pemacu sesendal |
| Gbr.15-41 | PT15-16032 | 93101-20001 | meterai minyak Φ20*Φ30*6 |
| Gbr.15-42 | PT15-16033 | 683-45315-A0 | pembungkusan selongsong bawah |
| Gbr.15-43 | PT5-03002 | 93606-12019 | pin dowel |
| Gbr.15-44 | PT15-16035 | 683-44362-01 | air tiub2 |
| Gbr.15-45 | PT15-16036 | 683-44365-01 | kedap air peredam1 |
| Gbr.15-46 | PT15-16037 | 683-44373-00 | set tiub air pinggan |
| Gbr.15-47 | GB/T5783M610 | 97095-06010 | bolt M6*10 |
| Gbr.15-48 | PT15-16039 | 6E7-44366-00 | kedap air peredam2 |
| Gbr.15-49 | PT15-16040 | 6B4-45501-00 | komp aci pemacu |
| PT15-16040-1 | 6B4-45501-10 | komp aci pemacu | |
| Gbr.15-50 | PT15-16041 | 63V-45551-00 | pinion（13T） |
| Gbr.15-51 | PT15-16042 | 90170-08M06 | kacang M8*1.25*5 |
| Gbr.15-52 | PT15-16044 | 6E7-45571-00 | gear2（27T） |
| Gbr.15-53 | PT15-16046 | 626-45577-00 | pinggan basuh |
| Gbr.15-54 | PT15-16047 | 683-45611-00 | kipas aci |
| Gbr.15-55 | PT15-16048 | 650-45635-00 | anjakan pelocok |
| Gbr.15-56 | PT15-16049 | 682-45631-00 | anjing cengkaman |
| Gbr.15-57 | PT30-18046 | 90250-05010 | pin strsight Φ5*30 |
| Gbr.15-58 | PT30-18047 | 648-45633-00 | pin silang cincin |
| Gbr.15-59 | 30-18048 | 90501-14M06 | pemampatan spring |
| Gbr.15-60 | PT15-16053 | 683-45361-02-4D | penutup bawah selongsong |
| Gbr.15-61 | 15-16054 | 93306-00501 | galas Φ25*Φ47*12 |
| Gbr.15-62 | 93315-317U2 | galas Φ17*Φ23*12 | |
| Gbr.15-63 | PT15-16056 | 93101-17001 | meterai minyak Φ17*Φ30*6 |
| Gbr.15-64 | PT15-16057 | 93210-57M09 | O-cincin |
| Gbr.15-65 | PT15-16058 | 93210-56M08 | O-cincin |
| Gbr.15-66 | GB/T5783M625 | 90119-06M17 | bolt M6*25 |
| Gbr.15-67 | |||
| Gbr.15-68 | 15-16053-1 |

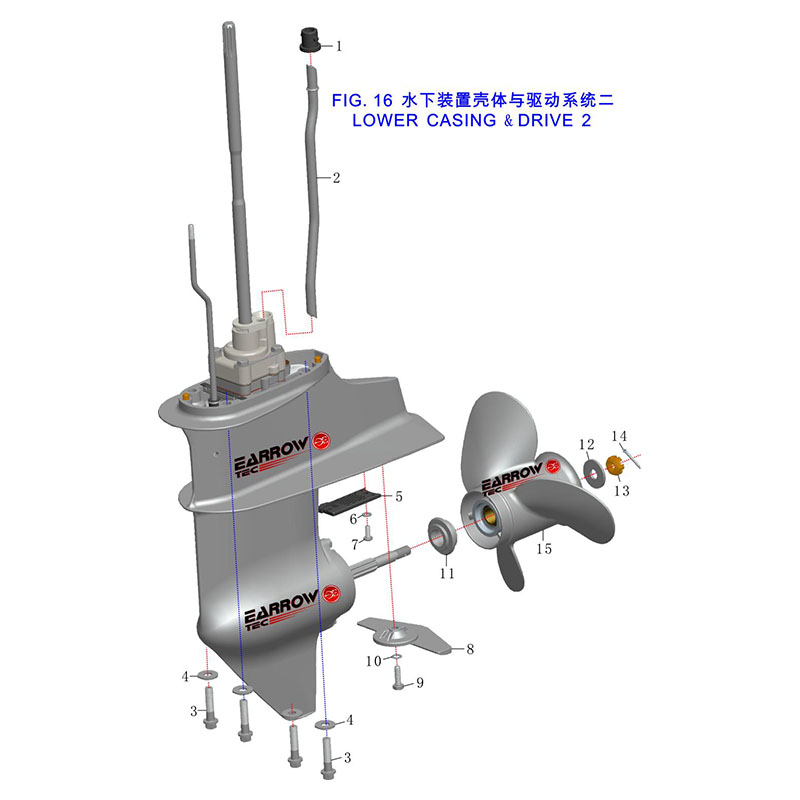

| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |
| Gbr.16-1 | PT15-17001 | 626-44365-01 | pengedap air peredam |
| Gbr.16-2 | PT15-17002 | 682-44361-01 | air tiub1 |
| PT15-17002-1 | 682-44361-11 | air tiub1 | |
| Gbr.16-3 | PT15-17004 | 97575-08535 | bebibir bolt M10*35 |
| Gbr.16-4 | GB/T97.1D8 | 92995-08600 | mesin basuh Φ8.5XΦ16X1.5 |
| Gbr.16-5 | PT15-17005 | 6E7-45214-00 | tutup salur masuk air |
| Gbr.16-6 | GB/T97.1D5 | 92990-05600 | mesin basuh Φ5XΦ10X1 |
| Gbr.16-7 | GB/T822M512 | 97880-05012 | kepala kuali skru M5*12 |
| Gbr.16-8 | PT15-17007 | 6B4-45251-00 | anod |
| Gbr.16-9 | GB/T5783M620 | 97095-06020 | bolt M6*20 |
| Gbr.16-10 | GB/T861.2D6 | 92990-06300 | pencuci gigi dalaman Φ6.5*Φ12*0.6*1.5 |
| Gbr.16-11 | PT15-17011 | 6E7-45987-01 | spacer1 |
| Gbr.16-12 | PT15-17012 | 90201-10M01 | mesin basuh biasa Φ10.5*Φ30*2.5 |
| Gbr.16-13 | PT15-17013 | 90171-10M01 | istana kacang M10*1.25 |
| Gbr.16-14 | GB/T91D2.520 | 91490-30020 | pin cotter |
| Gbr.16-15 | PT15-17015 | 683-45941-00 | baling-baling |

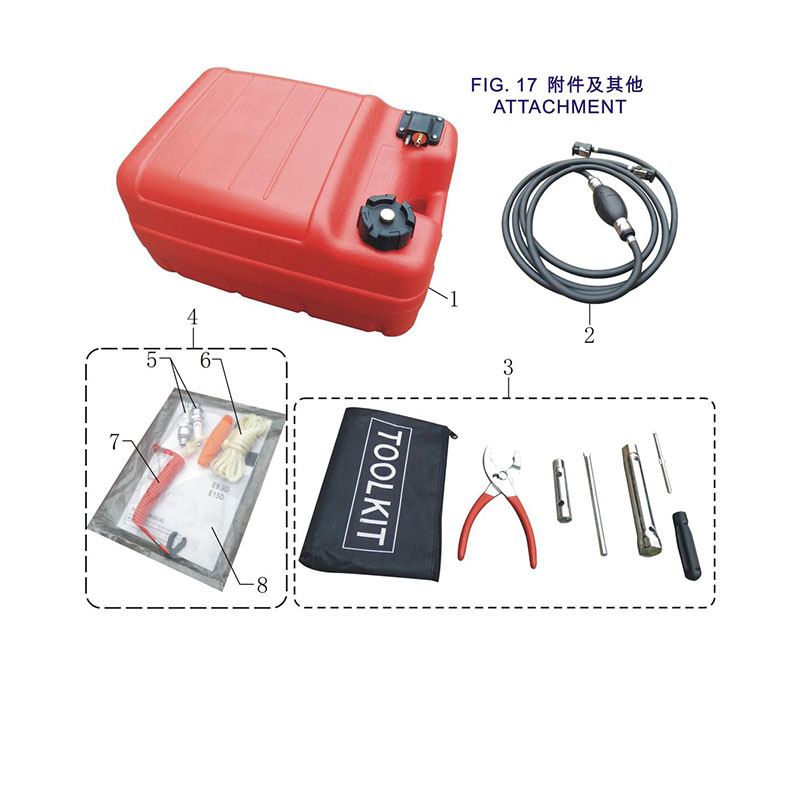

| RUJ. Tidak. | Bahagian Earrow No. | YAMAHA OEM Bahagian No. | PENERANGAN |
| Gbr.17-1 | PT30-20001 | 6YJ-24201-00 | tangki bahan api assy |
| Gbr.17-2 | PT30-20008 | 61J-24306-03 | paip bahan api comp1 |
| Gbr.17-3 | PT30-20020 | ||
| Gbr.17-4 | PT15-18001 | ||
| Gbr.17-5 | PT15-02030 | 94702-00160 | palam percikan （NGKBR8HS） |
| Gbr.17-6 | PT5-14027 | ||
| Gbr.17-7 | PT5-07008-1 | 682-82556-00 | penyumbat |
| Gbr.17-8 | PT15-18002 | ||
| Gbr.17-9 | PT15-18003 | ||
| Gbr.17-10 | PT15-18004 | ||
| Gbr.17-11 | PT5-13004 | ||
| Gbr.17-12 | |||
| Gbr.17-13 | 15-18004-X |
Alat ganti kami digunakan secara meluas oleh:
Bengkel pembaikan botBerbanding dengan alat ganti asal daripada jenama seperti Yamaha, alat ganti kami yang serasi menawarkan:
Kos yang lebih rendah
