Yamaha PT15 Outboard Motor Parts Cross Reference Catalog

When it comes to maintaining and repairing your Yamaha PT15 outboard motor, having a reliable parts catalog is essential. At Earrow, we provide a comprehensive PT15 parts cross-reference list, making it easy for boat owners, distributors, and repair shops to find the exact components they need.
Home » Spare Parts » Spare Parts PT15

Spare Parts

Spare Parts PT15

Our PT15 spare parts catalog includes both OEM Yamaha parts and compatible replacement components under the Earrow brand. Whether you are looking for routine maintenance items, replacement propellers, carburetor components, ignition systems, or lower unit parts, our catalog ensures you can quickly match the correct part number and specifications.

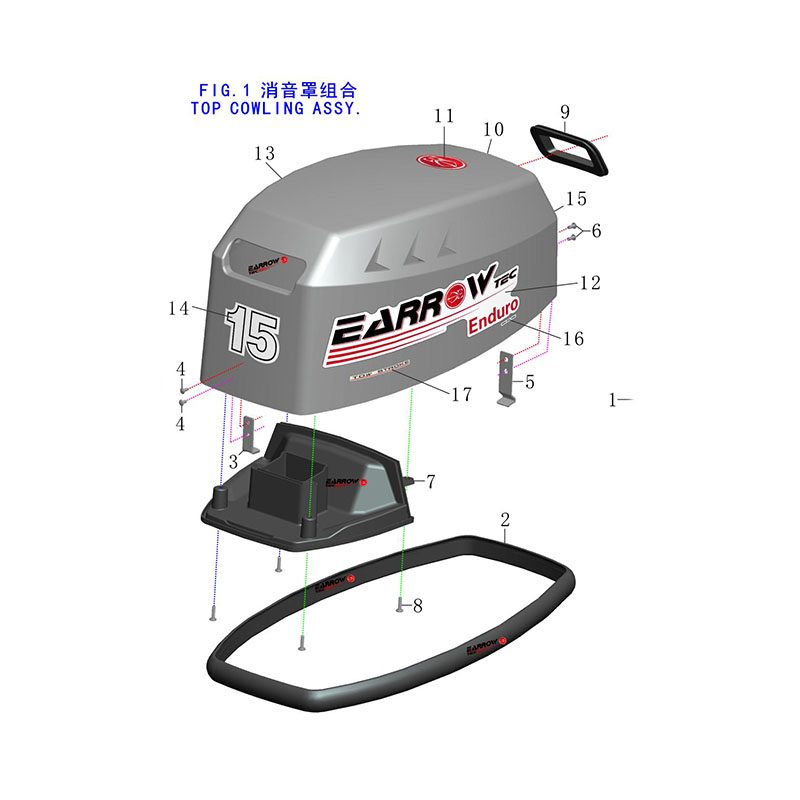

FIG.1 TOP COWLING ASSY

Top Cowling Assy.

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.1-1 ASSY. 6B4-42610-20 top  cowling assy
FIG.1-2 PT15-01002 6B4-42615-00 seal
FIG.1-3 PT15-01003 6B4-42651-00 hook
FIG.1-4 GB/T873D408 90266-04M00 rivet Φ4X8
FIG.1-5 PT15-01005 6B4-42674-00 holder clamp band
FIG.1-6 GB/T873D410 90266-04005 rivet
FIG.1-7 PT15-01007 6B4-42613-10 molding air duct
FIG.1-8 GB/T845FST4816 90167-05017 screw tapping ST4.8X16
FIG.1-9 PT15-01013 6B4-15761-00 seal rubber1
FIG.1-10 PT15-01001   top  cowling
FIG.1-11 PT5-12015-JC
FIG.1-12 PT15-01010 677-42676-10 graphic side2
FIG.1-13 PT15-01009 677-42675-10 graphic side1
FIG.1-14 PT15-01012 63V-42678-40 graphic rear
FIG.1-15 PT15-01011 63V-42678-10 graphic rear
FIG.1-16 PT30-01015 6E0-44191-11 indicator shift
FIG.1-17 PT5-12016-1   Graphic two stroke
FIG.2 CYLINDER & CRANKCASE

CYLINDER & CRANKCASE

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.2-1 ASSY.PT15-02001 6B4-W0090-00-1S crank cylinder assy
FIG.2-2 ASSY.PT15-02002 6B4-15100-00 crankcase assy
FIG.2-3 PT5-04002 624-14485-00 pipe joint
FIG.2-4 PT15-02004 650-14485-03 pipe joint
FIG.2-5 PT15-02002-1 N/A
FIG.2-6 PT15-02002-2 N/A
FIG.2-7 PT15-02002-3 N/A
FIG.2-8 PT15-02005 90445-07M08 hose（L220）
FIG.2-9 PT5-08001 90467-06016 clip Φ6
FIG.2-10 PT15-02007 682-11325-00 anode
FIG.2-11 GB/T819.1M516 98780-05015 screw countersunk
FIG.2-12 PT5-03002 93606-12019 pin dowel
FIG.2-13 GB /T5782M860 90119-08M07 bolt M8*60
FIG.2-14 GB/T97.1D8 92900-08600 washer Φ8.5XΦ16X1.5
FIG.2-15 PT15-02011 63V-41111-00-1S inner cover exhaust
FIG.2-16 PT15-02012 6B4-41112-A0 gasket exhaust inner cover
FIG.2-17 PT15-02013 63V-41112-A0 gasket exhaust inner cover
FIG.2-18 PT15-02014 63V-41113-00-1S outer cover exhaust
FIG.2-19 PT15-02015 676-11372-00 nipple hose
FIG.2-20 PT15-02016 90445-09104 hose（L300）
FIG.2-21 GB/T5782M630 90119-06MA4 bolt M6*30
FIG.2-22 GB/T97.1D6 920903-06600 washer Φ6.5XΦ12X1.5
FIG.2-23   6B4-11111-00-1S head cylinder 1
FIG.2-24 PT15-02019 63V-11181-A2 gasket cylinder head1
FIG.2-25 PT15-02020 90105-07M05 bolt flange M7*35
FIG.2-26 PT15-02021 6B4-11191-00-1S cover cylinder head1
FIG.2-27 PT15-02022 6B4-11193-A1 gasket head cover1
FIG.2-28 GB/T5783M616 90119-06023 bolt M6*16
FIG.2-29 GB/T97.1D6 920903-06600 washer Φ6.5XΦ12X1.5
FIG.2-30 PT15-02024 682-12413-00-1S cover thermostat
FIG.2-31 PT3-14003 6E5-12411-02 thermostat
FIG.2-32 PT15-02027 682-12414-A1 gasket cover
FIG.2-33 GB/T5783M625 90119-06MA3 bolt M6*25
FIG.2-34 GB/T97.1D6 920903-06600 washer Φ6.5XΦ12X1.5
FIG.2-35 PT15-02029 6B4-11351-A1 gasket cylinder
FIG.2-36 PT15-02030 94702-00160 plug spark （NGKBR8HS）
FIG.2-37 PT15-03029 90201-46M29 washer plate
FIG.2-38 PT15-03028 63V-11445-00 spacer
FIG.2-39 PT15-03002 93210-46M16 O-ring
FIG.2-40 PT15-03003 93102-25010 oil seal Φ25*Φ38*7
FIG.2-41 PT15-03004 93101-13M27 oil seal Φ13*Φ25*6
FIG.2-42 PT15-03001 6B4-15396-00-CA housing oil seal
FIG.2-43 GB/T5783M616 90119-06023 bolt M6*16
FIG.2-44 GB/T97.1D6 920903-06600 washer Φ6.5XΦ12X1.5

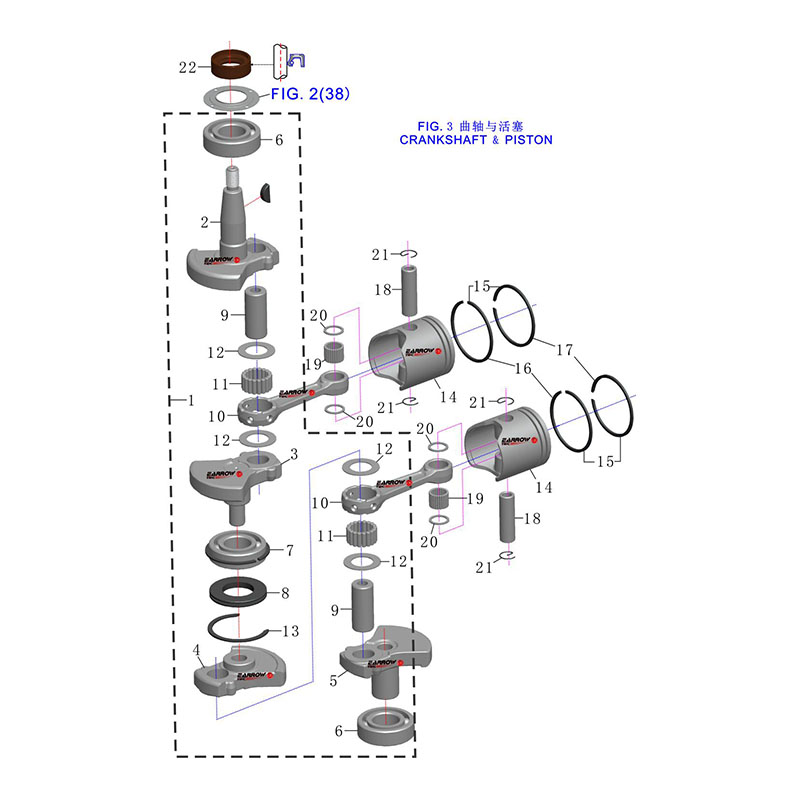

FIG.3 CRANKSHAFT & PISTON

CRANKSHAFT & PISTON

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.3-1 PT15-03007 6B4-11400-00 crankshaft assy
FIG.3-2 PT15-03008 63V-11412-00 crank1
FIG.3-3 PT15-03009 63V-11422-01 crank2
FIG.3-4 PT15-03010 63V-11432-02 crank3
FIG.3-5 PT15-03011 63V-11442-03 crank4
FIG.3-6 6205/P53YA 93306-205A1 bearing Φ25*Φ52*15
FIG.3-7 205X2NXW3( 93390-00029 bearing Φ25*Φ52*15
FIG.3-8 PT15-03014 63V-11515-02 seal labyrinth
FIG.3-9 PT15-03015 682-11681-00 pin crank1
FIG.3-10 PT15-03016 6K4-11651-00 rod connecting
FIG.3-11 PT15-03017 93310-620W5 bearing
FIG.3-12 PT15-03018 90209-20M23 washer
FIG.3-13 PT15-03020 92440-52009 circlip
FIG.3-14 PT15-03021 6E7-11631-00-97 piston
FIG.3-15 ASSY.PT15-03022 682-11610-01 piston ring
FIG.3-16 PT15-03022-2 N/A piston ring
FIG.3-17 PT15-03022-1 N/A piston ring
FIG.3-18 PT15-03023 634-11633-00 pin piston
FIG.3-19 PT15-03024 93602-14104 pin dowel
FIG.3-20 PT15-03025 90201-14377 washer plate
FIG.3-21 PT15-03026 93450-15023 clip piston pin
FIG.3-22 PT15-03027 93110-23M00 oil seal Φ23*Φ36*13

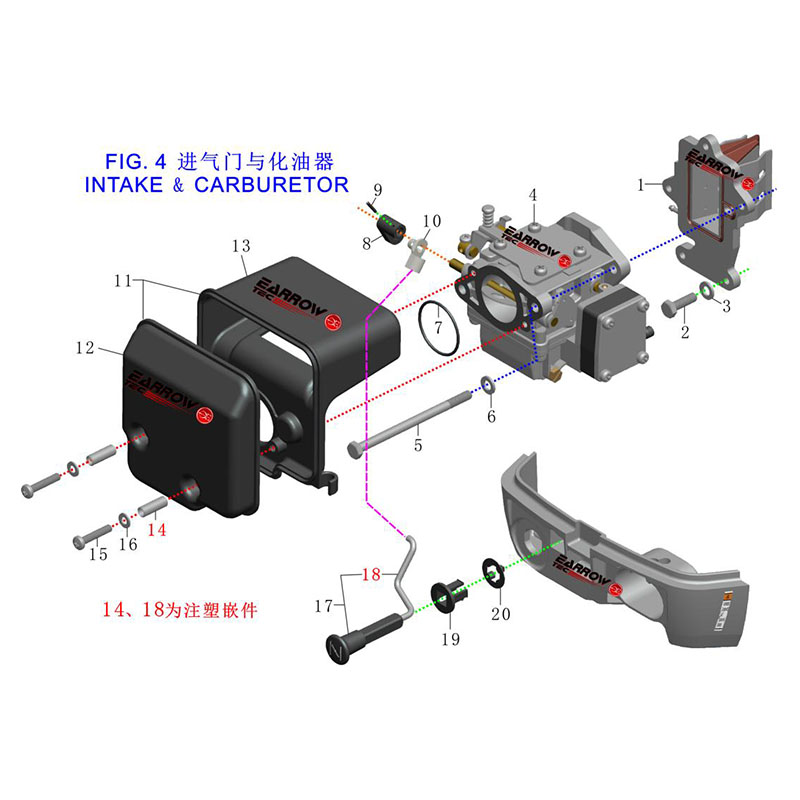

FIG.4 INTAKE & CARBURETOR

INTAKE & CARBURETOR

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.4-1 PT15-04001 63V-13610-10 reed valve assy
FIG.4-2 GB/T5783M620 97095-06020 bolt M6*20
FIG.4-3 GB/T97.1D6 92995-06600 washer Φ6.5XΦ12X1.5
FIG.4-4 PT15-05001 6B3-14301-00 carburetor assy.
FIG.4-5 GB/T5782M695 97013-06035 bolt M6*95
FIG.4-6 GB/T97.1D6 92995-06600 washer Φ6.5XΦ12X1.5
FIG.4-7 PT15-04009 93210-35M86 O ring Φ1.8XΦ37
FIG.4-8 PT15-04014 6B4-41252-00 lever choke1
FIG.4-9 GB/T879.2D450 91690-20010 pin spring Φ2X12
FIG.4-10 PT15-04013 6B4-41262-00 joint choke lever
FIG.4-11 PT15-04005 6B4-14440-00 silencer assy. intake
FIG.4-12 PT15-04005-2 N/A
FIG.4-13 PT15-04005-3 N/A
FIG.4-14 PT15-04005-1 N/A
FIG.4-15 GB/T822M525 90159-05007 screw pan head M5*25
FIG.4-16 GB/T97.1D5   washer Φ5XΦ10X1
FIG.4-17 PT15-04010 6B4-41271-01 knob choke
FIG.4-18 PT15-04010-1 N/A
FIG.4-19 PT15-04011 6B4-41273-00 grommet
FIG.4-20 PT15-04012 6B4-41274-00 grommet2

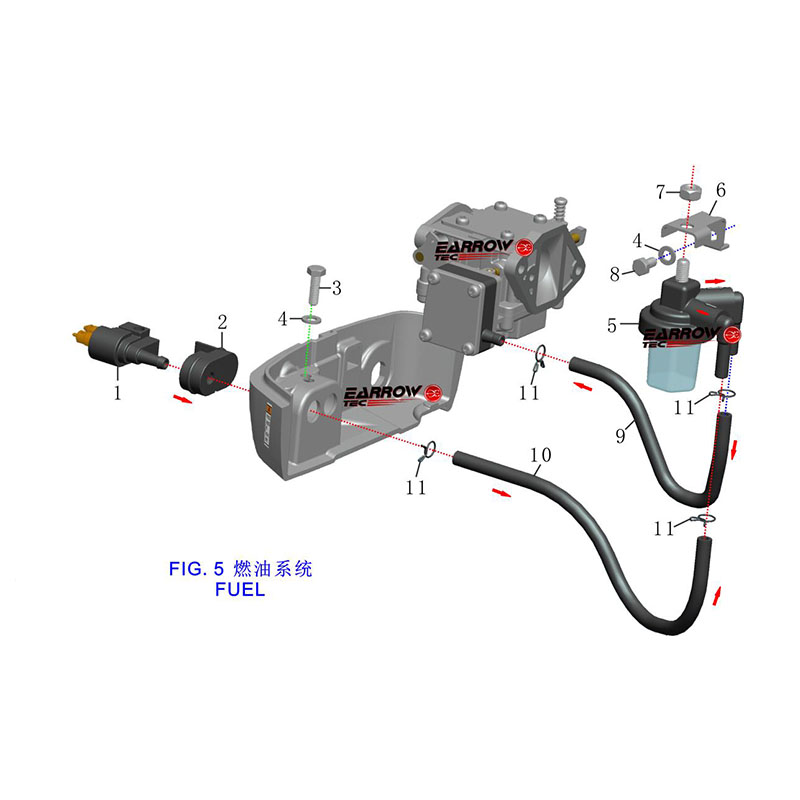

FIG.5 FUEL ASSY

FUEL ASSY.

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.5-1 PT5-14033 6G1-24304-02 fule pipe joint comp
FIG.5-2 PT15-06014 6B4-24329-00 seal
FIG.5-3 GB/T5783M620 97095-06020 bolt M6*20
FIG.5-4 GB/T97.1D6 92995-06600 washer Φ6.5XΦ12X1.5
FIG.5-5 PT5-14041 61N-24560-00 filter assy.
FIG.5-6 PT15-06012 648-24566-02 bracket filter
FIG.5-7 GB/T6170M8 95380-08600 nut M8
FIG.5-8 GB/T5783M612 97013-06014 bolt M6*12
FIG.5-9 PT15-06010 90445-09M00 pipe Φ9XΦ5XL180
FIG.5-10 PT15-06009 90445-09104 pipe Φ9XΦ5XL300
FIG.5-11 PT5-08007 90467-08004 clip Φ9

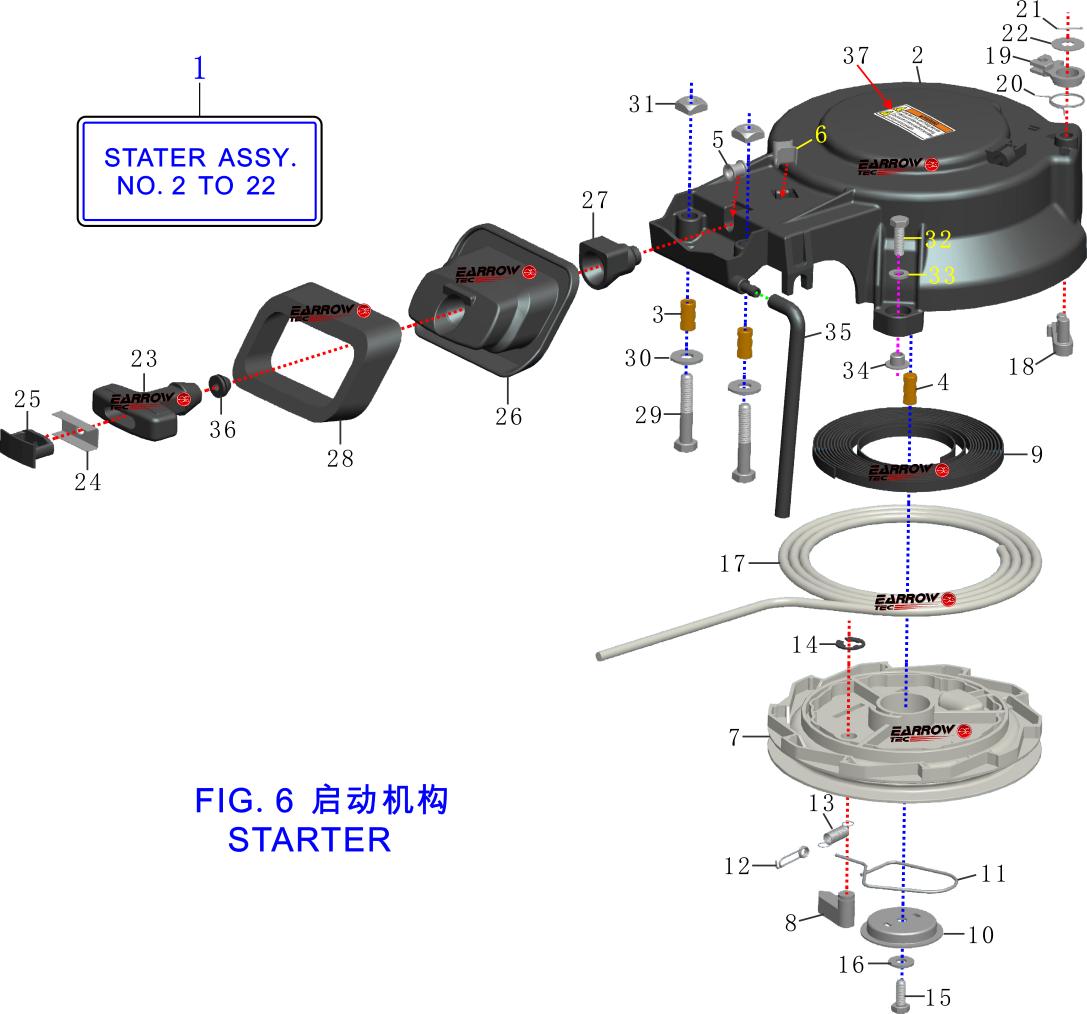

FIG.6 STARTER ASSY

STARTER ASSY.

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.6-1 ASSY.PT15-07001 6B4-15710-00 stater assy.
FIG.6-2 PT15-07002 6B4-15711-00 case stater
FIG.6-3 PT15-07002-1 N/A
FIG.6-4 PT15-07002-2 N/A
FIG.6-5 PT15-07003 63V-15764-00 collar1
FIG.6-6 PT15-07004 68T-15764-00 collar2
FIG.6-7 PT15-07005 63V-15714-00 drum sheave
FIG.6-8 PT15-07006 63V-15741-00 pawl drive
FIG.6-9 PT15-07007 63V-15713-00 spring stater
FIG.6-10 PT15-07008 63V-15716-00 plate drive
FIG.6-11 PT15-07009 63V-15705-01 spring drive pawel
FIG.6-12 PT15-07010 63V-15767-01 spring
FIG.6-13 PT15-07011 68T-15784-00 spring return
FIG.6-14 GB/T896D8 63V-15744-00 circlip Φ8
FIG.6-15 GB/T5783M616 90119-06023 bolt M6*16
FIG.6-16 GB/T96.1D6   washer Φ6.5XΦ16X1.5
FIG.6-17 PT15-07014   wire starter L1800mm
FIG.6-18 PT15-07015 63V-15794-00 stopper
FIG.6-19 PT15-07016 63V-15748-00 plunger starter stop
FIG.6-20 PT15-07017 63V-15734-00 spring return
FIG.6-21 GB/T91D1.212 91490-16018 pin cotter
FIG.6-22 PT15-07019 63V-15726-00 washer flat
FIG.6-23 PT5-02010 6G1-15755-00 handle starter
FIG.6-24 PT5-02010-1 N/A
FIG.6-25 PT5-02009 6G1-15779-00 cover
FIG.6-26 PT15-07022 6B4-15758-10 guide pope
FIG.6-27 PT15-07022-1 N/A
FIG.6-28 PT15-07023 6B4-15762-00 seal rubber2
FIG.6-29 GB/T5782M635 97095-06035 bolt M6*35
FIG.6-30 GB/T97.1D6 92995-06600 washer Φ6.5XΦ12X1.5
FIG.6-31 PT15-07026 90173-06009 nut square
FIG.6-32 GB/T5783M620 90119-06M82 bolt M6*20
FIG.6-33 GB/T97.1D6 92995-06600 washer Φ6.5XΦ12X1.5
FIG.6-34 PT15-07033   pipe
FIG.6-35 PT15-07028 6J8-24311-00 pipe fule1
FIG.6-36 PT15-07029 6A0-15780-00 damper
FIG.6-37 PT15-07031 6AH-81995-40 label warning

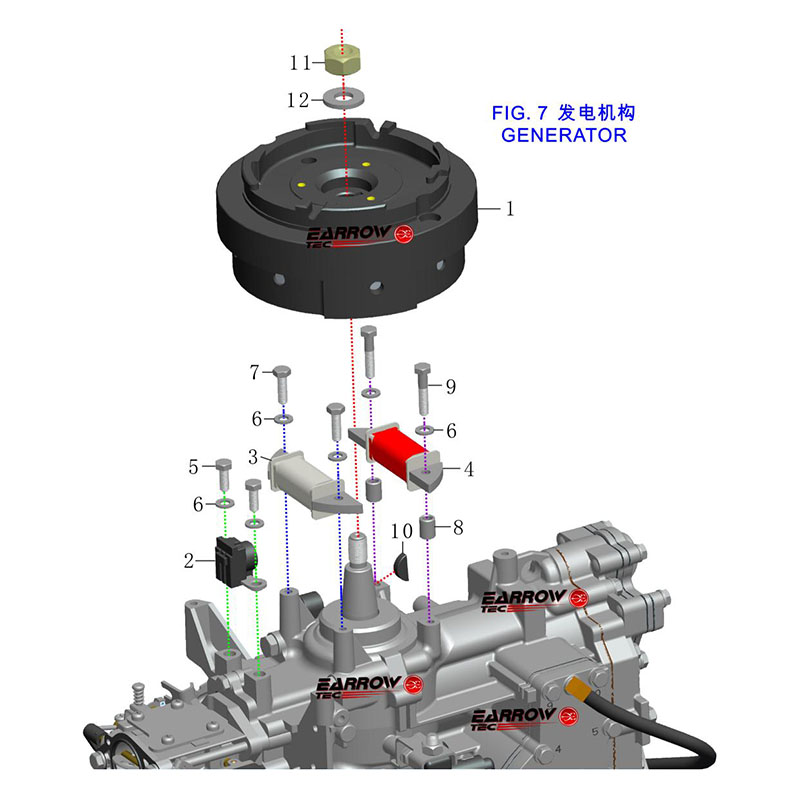

FIG.7 GENERATOR ASSY

GENERATOR ASSY.

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.7-1 PT15-08001 6B4-85550-01 rotor assy
FIG.7-2 PT15-08002 6B4-85550-00 coil pulser
FIG.7-3 PT15-08003 6B4-85520-00 coil charge
FIG.7-4 PT15-08004 63V-85533-00 coil lighting
FIG.7-5 GB/T5783M616 97095-06016 bolt M6*16
FIG.7-6 GB/T97.1D6 92995-06600 washer Φ6.5XΦ12X1.5
FIG.7-7 GB/T5783M620 97095-06020 bolt M6*20
FIG.7-8 PT15-08010 90387-06M24 collar Φ6.5XΦ10X13.2
FIG.7-9 GB/T5782M630 90119-06M40 bolt M6*30
FIG.7-10 PT15-08013 90280-05013 key woodruff
FIG.7-11 PT15-08014 90170-12066 nut M12
FIG.7-12 PT15-08015 90201-12472 washer plate

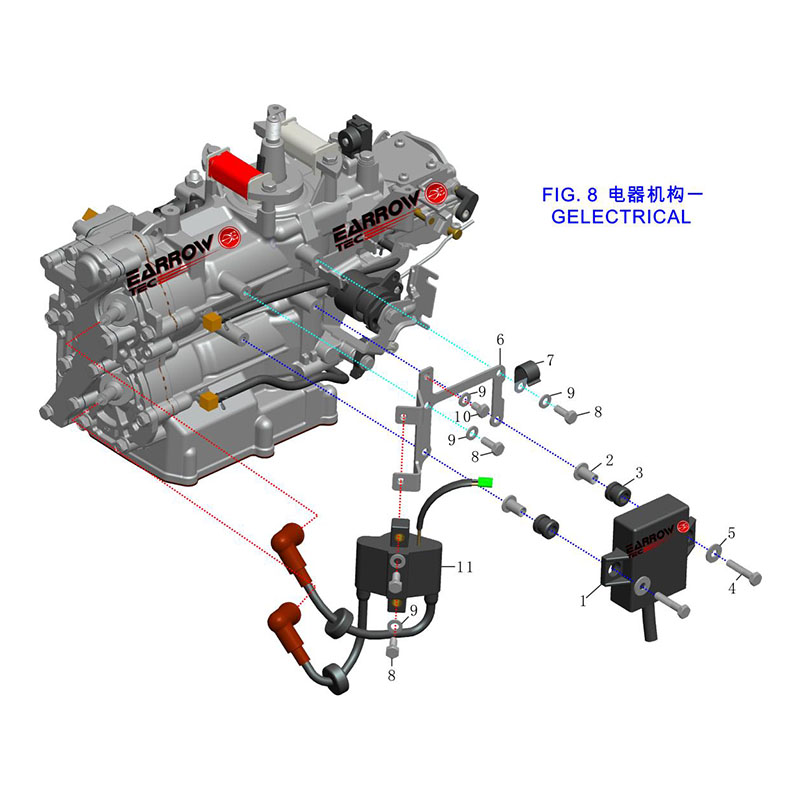

FIG.8 GELECTRICAL ASSY.

GELECTRICAL ASSY.

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.8-1 PT15-09001 6B4-85540-03 CDI unit assy
FIG.8-2 PT3-04001 624-42542-00 pipe
FIG.8-3 PT3-06003 61N-82317-00 damper ignition coil
FIG.8-4 GB/T5782M630 90119-06M40 bolt M6*30
FIG.8-5 GB/T96D6 90201-06M30 washer  Φ6.5XΦ16X1.5
FIG.8-6 PT15-09015 6B4-82316-00 bracket ignition coil
FIG.8-7 PT15-09018 90465-08M99 clamp
FIG.8-8 GB/T5783M616 97095-06014 bolt M6*16
FIG.8-9 GB/T97.1D6 92995-06600 washer Φ6.5XΦ12X1.5
FIG.8-10 GB/T5783M610 97095-06010 bolt M6*10
FIG.8-11 PT15-09004 6B4-85570-00 ignition coil assy

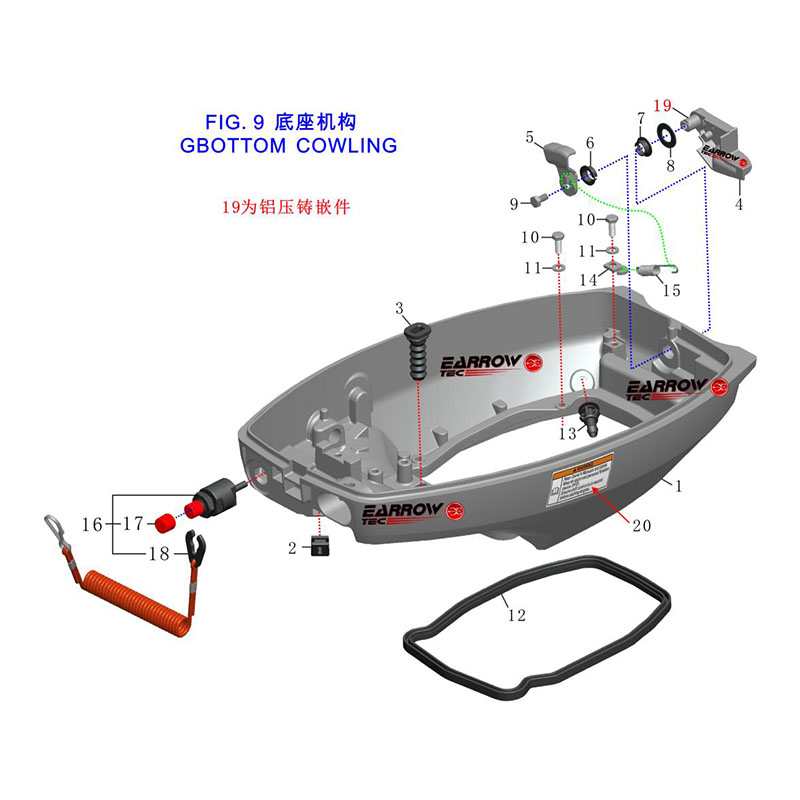

FIG.9 GBOTTOM COWLING

GBOTTOM COWLING

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.9-1 PT15-10001 6B4-42711-00-4D cowling bottom
FIG.9-2 PT15-10002 61N-26326-00 grommet
FIG.9-3 15-10003 61N-26326-00 grommet
FIG.9-4 PT15-10004 6B4-42815-00-4D lever clamp
FIG.9-5 PT15-10005 6B4-42816-00 lever clamp
FIG.9-6 PT5-02015 90386-12M45 bush
FIG.9-7 PT5-02015 90386-12MA2 bush
FIG.9-8 GB/T955D12 90206-12052 washer wave Φ12
FIG.9-9 GB/T5783M612 97095-06014 bolt M6*12
FIG.9-10 GB/T5783M616 97095-06014 bolt M6*16
FIG.9-11 GB/T97.1D6 92995-06600 washer Φ6.5XΦ12X1.5
FIG.9-12 PT15-10012 6B4-42716-00 rubber seal1
FIG.9-13 PT15-10013 6BL-44391-00 nipple hose
FIG.9-14 PT15-10014 66T-43144-00 hook spring
FIG.9-15 PT15-10016 90506-18009 spring tension
FIG.9-16 PF4-12001 6E9-82575-02 engine stop switch assy.
FIG.9-17 PT30-11022 689-8257Y-00 cap
FIG.9-18  PT5-07008-1  682-82556-00 stopper
FIG.9-19 PT15-10004-1 N/A

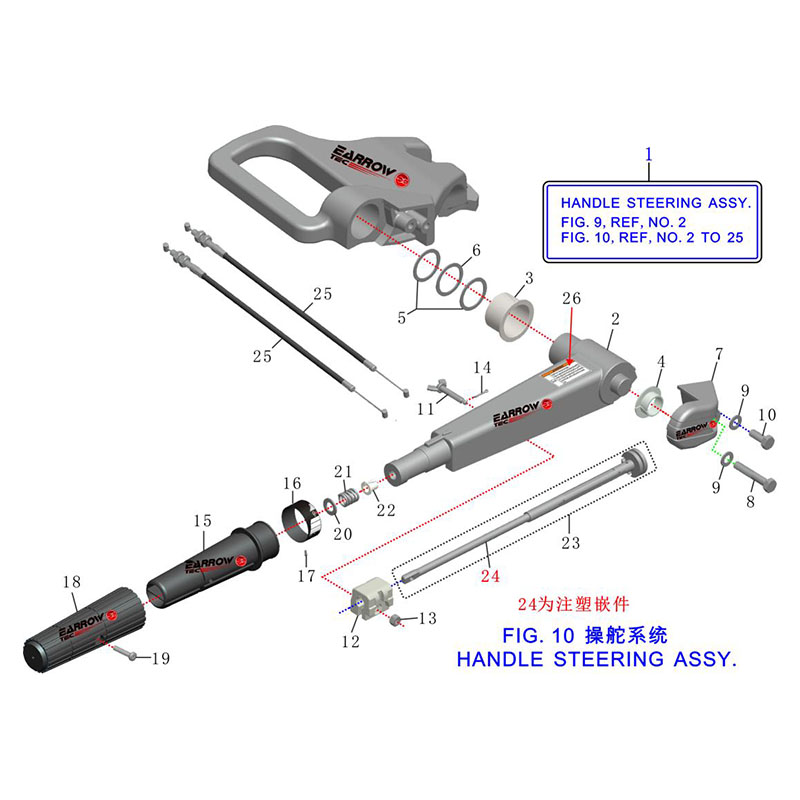

FIG.10 HANDLE STEERING ASSY.

HANDLE STEERING ASSY.

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.10-1 PT15-11025   handle steering assy
FIG.10-2 PT15-11001 6B4-42111-00-4D handle steering
FIG.10-3 PT15-11002 90381-35001 bush solid
FIG.10-4 PT15-11003 90381-20001 bush solid
FIG.10-5 PT30-12005 90201-28013 washer plate
FIG.10-6 GB/T955D27 90206-28001 washer wave Φ27
FIG.10-7 PT15-11006 6B4-42131-00-4D cover handle steering
FIG.10-8 GB /T5782M845 97095-018045 bolt M8*45
FIG.10-9 GB/T97.1D8 92995-08600 washer Φ8.5XΦ16X1.5
FIG.10-10 GB/T5783M820 97075-08020 bolt M8*20
FIG.10-11 PT15-11011 6B4-42125-00 bolt friction adjusting
FIG.10-12 PT15-11012 6B4-42126-00 friction steering handle grip
FIG.10-13 GB/T 6172.2M6 90185-06062 nut self-locking
FIG.10-14 GB/T91D212 91490-16018 pin cotter
FIG.10-15 15-11015 6B4-42119-00 grip steering handle
FIG.10-16 PT5-12012 6G1-42137-10 indicator throttle
FIG.10-17 GB/T827D25 90269-02M09 rivet Φ2X5
FIG.10-18 PT3-06014 6G1-42177-00 rubber handle
FIG.10-19 GB/T820M525 90149-05M13 screw M5*25
FIG.10-20 PT3-03047 92903-10600 washer plate
FIG.10-21 PT5-08008 90501-23215 spring compression
FIG.10-22 PT3-02026 90386-08032 bush
FIG.10-23 PT15-11023 6B4-42136-00 lever throttle
FIG.10-24 PT15-11023-1 N/A
FIG.10-25 PT15-11024 6B4-26301-00 throttle cable assy
FIG.10-26 PT30-12025 6E0-83627-41 lable caution7

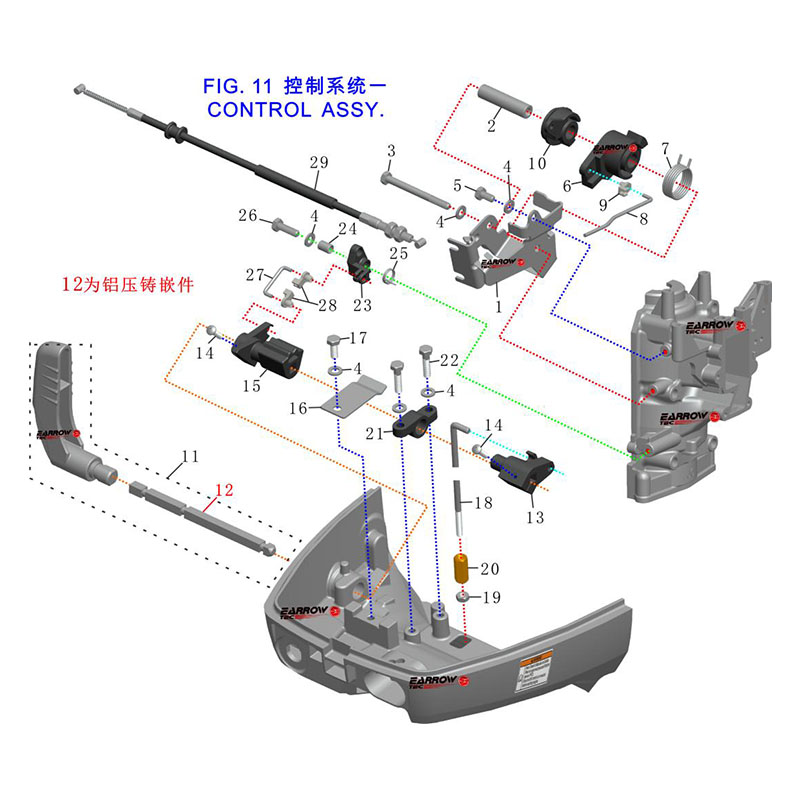

FIG.11 CONTROL ASSY.

CONTROL ASSY.

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.11-1 PT15-12001 63V-14497-02 stay throttle wire
FIG.11-2 PT15-12002 90387-06M50 collar Φ6.5*Φ12*49
FIG.11-3 GB/T5782M665 95895-06065 bolt M6*65
FIG.11-4 GB/T97.1D6 92995-06600 washer Φ6.5XΦ12X1.5
FIG.11-5 GB/T5783M612 97095-06014 bolt M6*12
FIG.11-6 PT15-12006 6B4-41283-00 lever free accel
FIG.11-7 PT15-12007 90508-20M38 spring torsion
FIG.11-8 PT15-12008 63V-41211-00 link accel
FIG.11-9 PT15-12009 6J8-41262-00 joint choke lever
FIG.11-10 PT15-12010 6B4-41638-00 pulley
FIG.11-11 PT15-12011 6B4-44111-00-4D handle gear shift
FIG.11-12 PT15-12011-1 N/A
FIG.11-13 PT15-12012 6B4-44121-00 lever shift rod
FIG.11-14 GB/T845ST4219 97780-40520 screw tapping ST4.2X19
FIG.11-15 PT15-12014 6B4-44125-00 lever shift rod
FIG.11-16 PT15-12016 6B4-44116-00 spring
FIG.11-17 GB/T5783M616 90109-06M80 bolt M6*16
FIG.11-18 PT15-12018 6B4-44143-00 rod shift
FIG.11-19 GB/T41M6 95380-06600 nut hexagon M6
FIG.11-20 PT30-13047 61N-44146-00 connector shift rod
FIG.11-21 PT15-12021 6B4-41662-00 bracket2
FIG.11-22 GB/T5783M625 90119-06M17 bolt M6*25
FIG.11-23 PT15-12023 6B4-15746-00 arm
FIG.11-24 PT15-12024 90387-06M06 collar  Φ6.5*Φ8*11
FIG.11-25 PT15-12025 90508-08M39 spring torsion
FIG.11-26 GB/T5783M620 97095-06020 bolt M6*20
FIG.11-27 PT15-12028 6L2-15747-00 link
FIG.11-28 PT4-14030 6J8-41262-00 joint choke lever
FIG.11-29 PT15-12030 6B4-15770-00 cable comp starter stop

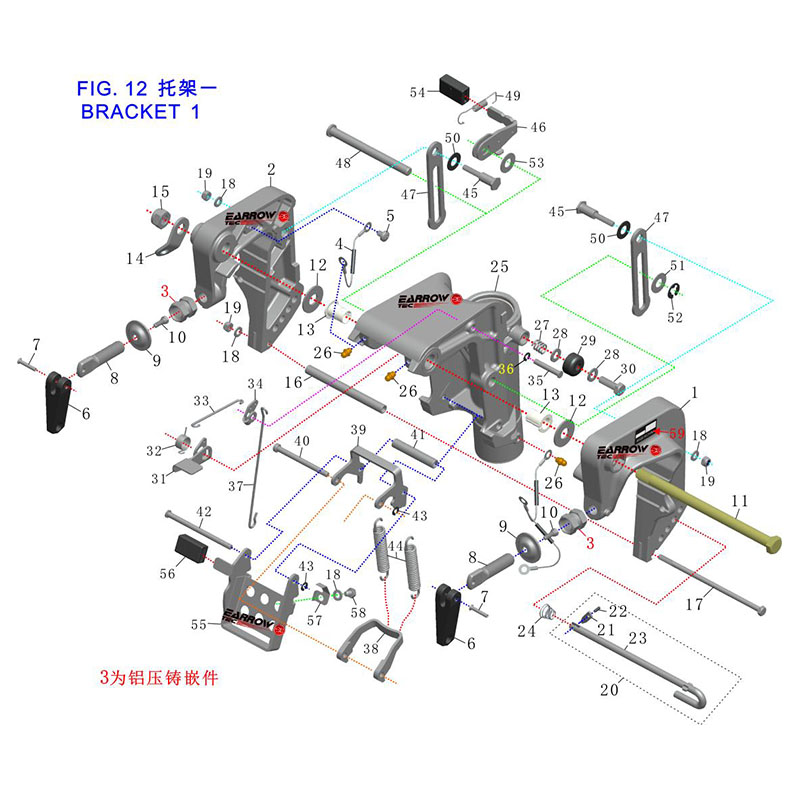

FIG.12 BRACKET 1

BRACKET 1

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.12-1 PT15-13001 682-43111-05-4D bracket clamp1
FIG.12-2 PT15-13002 682-43112-05-4D bracket clamp2
FIG.12-3 PT15-13002-1 N/A
FIG.12-4 PT15-13003 6E5-82148-00 wire lead4
FIG.12-5 GB/T822M68 97885-06008 screw pan head M6*8
FIG.12-6 PT5-02028 6E0-43118-01 handle transom clamp
  15-13063
FIG.12-7 GB/T1015D424 90243-04M01 pin Φ4*24
FIG.12-8 PT30-15005 90149-14030 screw M14*2*48*L70
FIG.12-9 PT5-05015 648-43114-01 pad transom clamp
FIG.12-10  PT5-03040-1 90109-06M12 bolt M5*10*13.8
FIG.12-11 PT15-13009 90101-12013 bolt
FIG.12-12 PT15-13010 90201-12018 washer plate Φ13*Φ32*2
FIG.12-13 PT15-13011 90381-12001 bush solid
FIG.12-14 PT15-13012 6B4-43113-00 plate clamp bracket
FIG.12-15 GB/6185M121.25 95780-12300 nut self-locking M12*1.25
FIG.12-16 PT15-13014 90387-06M13 collar Φ6.2*Φ10.2*108.4
FIG.12-17 GB/T5782M6145 90101-06M29 bolt M6*145
FIG.12-18 GB/T97.1D6 92995-06600 washer Φ6.5XΦ12X1.5
FIG.12-19 GB/6186M6 95380-06700 nut self-locking M6
FIG.12-20 PT15-13018 689-43160-00 tilt rod assy
FIG.12-21 PT5-05018 689-43165-00 plate tilt lock
FIG.12-22 GB/T879.2D38 91690-30008 pin spring Φ3X8
FIG.12-23 PT15-13018-1 N/A tilt rod
FIG.12-24 PT30-15022 90502-10M07 spring conical
FIG.12-25 15-13022 682-43311-07-4D bracket swivel
FIG.12-26 PT5-03038 93700-06M03 nipple grease
FIG.12-27 PT15-13024 90501-18M00 spring compression
FIG.12-28 GB/T97.1D8 92990-08600 washer Φ8.5XΦ16X1.5
FIG.12-29 PT15-13026 676-43373-00 seal damper
FIG.12-30 GB/T5783M830 97075-08025 bolt M8*30
FIG.12-31 PT15-13028 6B4-43631-00 lever tilt
FIG.12-32 PT15-13029 90508-14018 spring torsion
FIG.12-33 PT15-13030 682-43616-00 rod tilt lock
FIG.12-34 PT15-13031 682-43641-01 lever tilt
FIG.12-35 PT15-13032 90249-06M23 pin Φ6X35.3
FIG.12-36 GB/T896D5 99080-05600 circlip Φ5
FIG.12-37 PT15-13034 682-43617-00 rod tilt lock
FIG.12-38 PT15-13035 682-43614-01 plate tilt lock 1
FIG.12-39 PT15-13036 682-43615-02 plate tilt lock 2
FIG.12-40 PT15-13037 682-42611-01 shaft tilt lock  Φ6X70.3
FIG.12-41 PT15-13038 90387-06M20 collar Φ6.5*Φ10.5*58.2
FIG.12-42 PT15-13039 682-43659-01 shaft reverse lock Φ6X88.8
FIG.12-43 GB/T896D5 99080-05600 circlip Φ5
FIG.12-44 PT15-13041 90506-26M01 spring tension
FIG.12-45 PT15-13042 90109-06M05 bolt
FIG.12-46 PT15-13043 6B4-43181-00 lever  tilt stop1
FIG.12-47 PT15-13044 6B4-43627-00 stopper
FIG.12-48 PT15-13045 90249-10003 pin Φ9.8X110
FIG.12-49 PT15-13046 90506-12002 spring tension
FIG.12-50 GB/T955D10 90206-10M24 washer wave Φ10.5*Φ21*3
FIG.12-51 PT15-13050 90202-10M56 washer Φ10.5XΦ23.5X1
FIG.12-52 GB/T896D9 99080-09600 circlip Φ9
FIG.12-53 PT15-13050 90202-10M56 washer Φ10.5XΦ23.5X1
FIG.12-54 PT15-13052 682-43318-01 cover
FIG.12-55 PT15-13053 6B4-43681-00 lever shallow water drive1
FIG.12-56 PT15-13054 682-43318-01 cover
FIG.12-57 PT15-13055 682-43643-00 spring
FIG.12-58 GB/T5783M68 97095-06008 bolt M6*8
FIG.12-59 PT30-15001-1
FIG.12-60 15-13022-1
FIG.12-61 15-13063

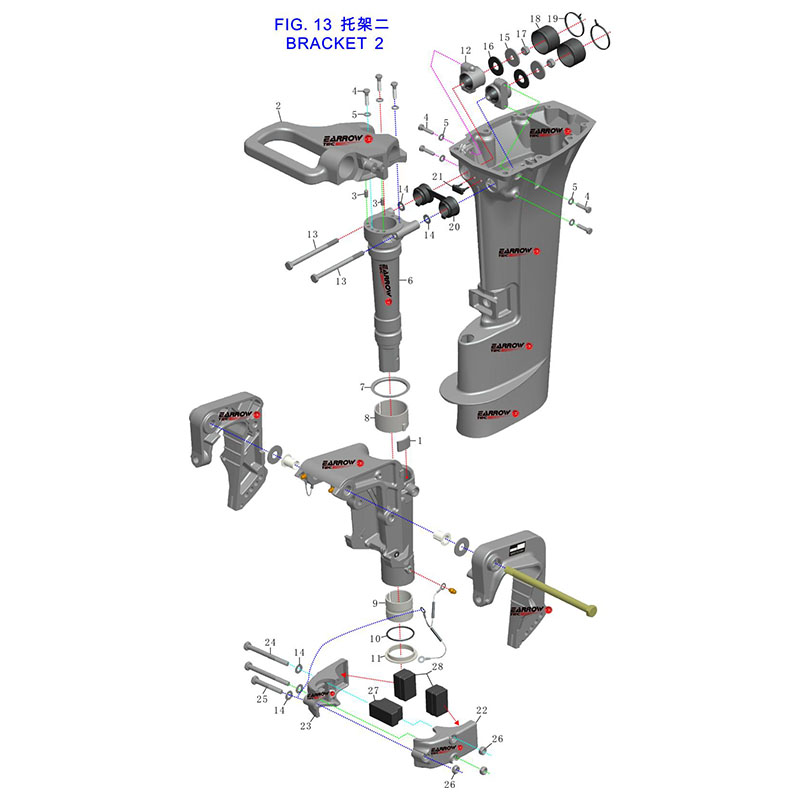

FIG.13 BRACKET 2

BRACKET 2

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.13-1 PT15-14001 648-42528-00 plate friction
FIG.13-2 PT15-14002 6B 4-42511-00-4D  bracket steering
FIG.13-3 PT5-03002 93606-12019 pin dowel
FIG.13-4 GB/T5783M625 90119-06M17 bolt M6*25
FIG.13-5 GB/T97.1D6 92995-06600 washer Φ6.5XΦ12X1.5
FIG.13-6 PT15-14006 682-42521-00-94 shaft steering pivot
FIG.13-7 PT15-14007 90209-52M01 washer
FIG.13-8 PT15-14008 682-42537-00 bushing pivot shaft
FIG.13-9 PT15-14009 90386-40M09 bush
FIG.13-10 PT15-14010 93210-40M10 O-ring
FIG.13-11 PT15-14011 90386-40M08 bush
FIG.13-12 PT15-14012 682-44514-01-94 mount damper upper side
FIG.13-13 GB /T5782M8110 90101-08M30 bolt M8*110
FIG.13-14 GB/T97.1D8 92995-08600 washer Φ8.5XΦ16X1.5
FIG.13-15 PT15-14017 90201-08M13 washer plate Φ8.5XΦ32X2.5
FIG.13-16 PT15-14018 90202-13M02 washer plate
FIG.13-17 GB/6186M8 90185-08057 nut self-locking M8
FIG.13-18 PT15-14020 682-44522-01 seal
FIG.13-19 PT15-14021 90465-11M52 clamp
FIG.13-20 PT15-14022 682-44521-01 seal
FIG.13-21 PT15-15020 682-44532-00 stopper upper mount
FIG.13-22 PT15-14023 682-44551-02-4D housing lower mount rubber1
FIG.13-23 PT15-14024 682-44552-02-5D housing lower mount rubber2
FIG.13-24 GB /T5782M885 90119-08M45 bolt M8*85
FIG.13-25 GB /T5782M855 97575-08555 bolt M8*55
FIG.13-26 GB/T6170M8 95380-08600 nut M8
FIG.13-27 PT15-14028 682-44557-00 mount damper lower front
FIG.13-28 PT15-14029 682-44555-00 mount damper lower side

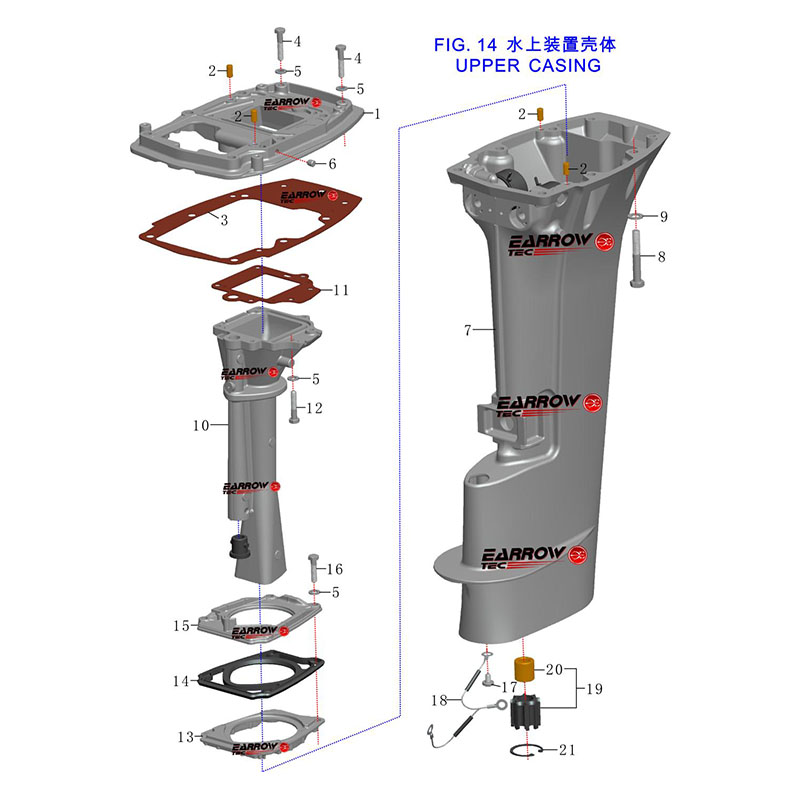

FIG.14 UPPER CASING

UPPER CASING

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.14-1 PT15-15001 6B4-41137-00-CA guide exhaust
FIG.14-2 PT5-03002 93606-12019 pin dowel
FIG.14-3 PT15-15003 682-45113-A2 gasket upper casing
FIG.14-4 GB/T5782M630 90119-06M95 bolt M6*30
FIG.14-5 GB/T97.1D6 92995-06600 washer Φ6.5XΦ12X1.5
FIG.14-6 PT15-15030
FIG.14-7 PT15-15006 682-45111-05-4D casing upper
  PT15-15006-1 682-45111-15-4D casing upper
FIG.14-8 GB /T5782M850 97575-08550 bolt M8*50
FIG.14-9 GB/T97.1D8 92995-08600 washer Φ8.5XΦ16X1.5
FIG.14-10 PT15-15008 6B4-41131-00-CA manifold ext1
FIG.14-11 PT15-15009 682-41133-A0 gasket exhaust manifold
FIG.14-12 GB/T5783M620 97095-06020 bolt M6*20
FIG.14-13 PT15-15012 682-45126-01-CA plate seal damper
FIG.14-14 PT15-15013 682-45127-00 seal
FIG.14-15 PT15-15014 682-41116-00-CA protector
FIG.14-16 GB/T5783M625 90119-06M17 bolt M6*25
FIG.14-17 GB/T822M68 97885-06008 screw pan head M6*8
FIG.14-18 PT15-15017 6E7-82127-00 wire lead2
FIG.14-19 PT15-15018 6B4-45318-00 bushing drive shaft
FIG.14-20 PT15-15018-1 N/A
FIG.14-21 GB/T893.2D32 93420-30042 circlip Φ32

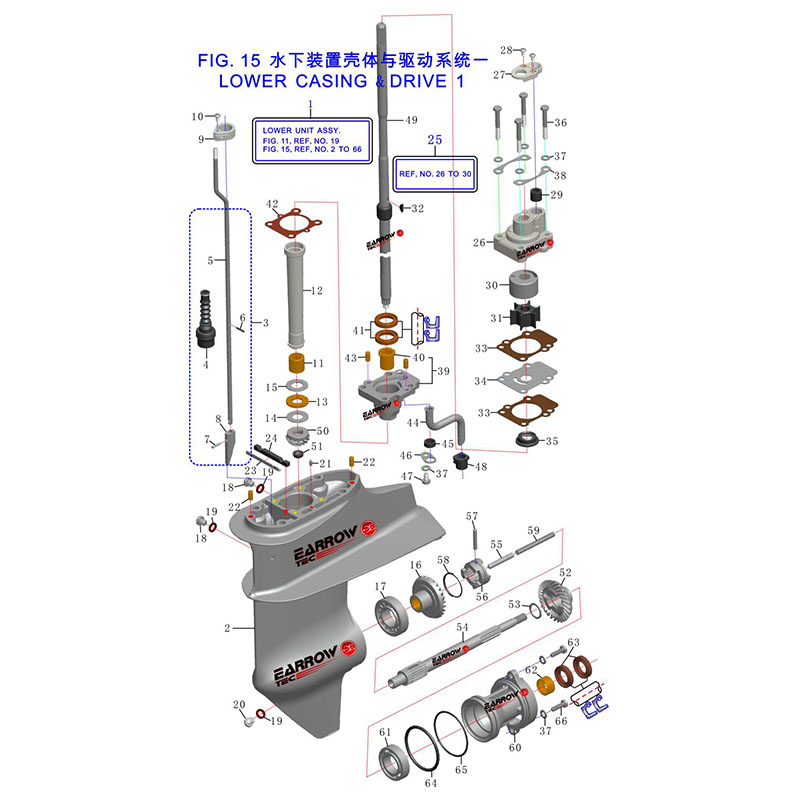

FIG.15 LOWER CASING & DRIVE 1

LOWER CASING & DRIVE 1

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.15-1 ASSY.PT15-16001 6B4-45300-01-4D lower unit assy
FIG.15-2 PT15-16002 6E8-45311-01-4D casing lower
FIG.15-3 PT15-16003 6B4-44150-00 shift cam assy
FIG.15-4 PT15-16004 682-44147-00 boot shift rod
FIG.15-5 PT15-16003-1 N/A
  PT15-16003-5
FIG.15-6 GB/T879.2D2.514 N/A pin spring Φ2.5X14
FIG.15-7 PT30-18062-3 N/A
FIG.15-8 PT15-16003-2 N/A
FIG.15-9 PT15-16005 682-44176-00 bracket
FIG.15-10 GB/T845ST4810 97780-50110 screw tapping ST4.8X10
FIG.15-11 PT15-16007 93315-314V8 bearing NSK F-1420
FIG.15-12 PT15-16008 6E7-45536-00 sleeve drive shaft
FIG.15-13 PT15-16009 90209-14011 washer Φ14.1XΦ28.8X3
FIG.15-14 PT15-16010 6E8-45587-10 shim（T：1.2mm）
FIG.15-15 PT15-16011 90201-15017 washer plate
FIG.15-16 PT15-16043 6E7-45560-01 gear1（27T）
FIG.15-17 4T-30205 93330-00005 bearing Φ25*Φ52*16.25
FIG.15-18 PT5-03054 90340-08002 plug straight screw
FIG.15-19 PT5-14028 90340-08020 gasket
FIG.15-20 PT5-03054-1 688-45341-10 plug drain
FIG.15-21 PT15-16016 93604-08062 pin dowel Φ4*8
FIG.15-22 PT5-03002 93606-12019 pin dowel
FIG.15-23 PT15-16017 682-45376-01 guide seal damper
FIG.15-24 PT15-17010 682-45375-01 damper seal
FIG.15-25 ASSY.PT15-16018 682-44300-40 housing water pump assy
FIG.15-26 PT15-16018-1 N/A housing water pump
FIG.15-27 PT15-16019 682-44312-00 cover water pump housing
FIG.15-28 GB/T845ST4212 97780-40112 screw tapping ST4.2X12
FIG.15-29 PT15-16021 682-44365-00 damper water seal1
FIG.15-30 PT15-16022 682-44322-41 insert cartridge
FIG.15-31 PT15-16023 682-44352-03 impeller
FIG.15-32 PT15-16024 90280-03005 key woodruff
FIG.15-33 PT15-16025 682-44315-A0 gasket water pump
FIG.15-34 PT15-16026 682-44323-40 outer plate cartridge
FIG.15-35 PT15-16027 682-45344-00 cover oil seal
FIG.15-36 GB/T5782M645 97095-06045 bolt M6*45
FIG.15-37 GB/T97.1D6 92995-06600 washer Φ6.5XΦ12X1.5
FIG.15-38 PT15-16029 682-44328-00 plate
FIG.15-39 PT15-16030 6E7-45331-00-CA housing bearing
FIG.15-40 PT15-16031 626-45316-019 bushing drive shaft
FIG.15-41 PT15-16032 93101-20001 oil seal Φ20*Φ30*6
FIG.15-42 PT15-16033 683-45315-A0 packing lower casing
FIG.15-43 PT5-03002 93606-12019 pin dowel
FIG.15-44 PT15-16035 683-44362-01 tube water2
FIG.15-45 PT15-16036 683-44365-01 damper water seal1
FIG.15-46 PT15-16037 683-44373-00 set plate water tube
FIG.15-47 GB/T5783M610 97095-06010 bolt M6*10
FIG.15-48 PT15-16039 6E7-44366-00 damper water seal2
FIG.15-49 PT15-16040 6B4-45501-00 drive shaft comp
  PT15-16040-1 6B4-45501-10 drive shaft comp
FIG.15-50 PT15-16041 63V-45551-00 pinion（13T）
FIG.15-51 PT15-16042 90170-08M06 nut M8*1.25*5
FIG.15-52 PT15-16044 6E7-45571-00 gear2（27T）
FIG.15-53 PT15-16046 626-45577-00 washer plate
FIG.15-54 PT15-16047 683-45611-00 shaft propeller
FIG.15-55 PT15-16048 650-45635-00 plunger shift
FIG.15-56 PT15-16049 682-45631-00 clutch dog
FIG.15-57 PT30-18046 90250-05010 pin strsight Φ5*30
FIG.15-58 PT30-18047 648-45633-00 ring cross pin
FIG.15-59 30-18048 90501-14M06 spring compression
FIG.15-60 PT15-16053 683-45361-02-4D cap lower casing
FIG.15-61 15-16054 93306-00501 bearing Φ25*Φ47*12
FIG.15-62    93315-317U2 bearing Φ17*Φ23*12
FIG.15-63 PT15-16056 93101-17001 oil seal Φ17*Φ30*6
FIG.15-64 PT15-16057 93210-57M09 O-ring
FIG.15-65 PT15-16058 93210-56M08 O-ring
FIG.15-66 GB/T5783M625 90119-06M17 bolt M6*25
FIG.15-67
FIG.15-68 15-16053-1

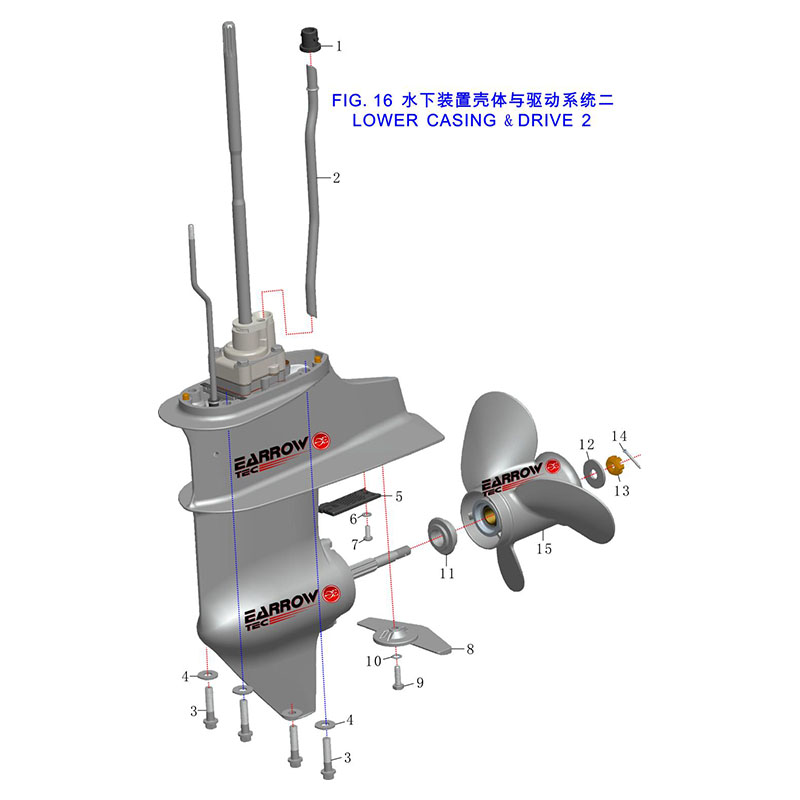

FIG.16 LOWER CASING & DRIVE 2

LOWER CASING & DRIVE 2

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.16-1 PT15-17001 626-44365-01 damper water seal
FIG.16-2 PT15-17002 682-44361-01 tube water1
  PT15-17002-1 682-44361-11 tube water1
FIG.16-3 PT15-17004 97575-08535 bolt flange M10*35
FIG.16-4 GB/T97.1D8 92995-08600 washer Φ8.5XΦ16X1.5
FIG.16-5 PT15-17005 6E7-45214-00 cover water inlet
FIG.16-6 GB/T97.1D5 92990-05600 washer Φ5XΦ10X1
FIG.16-7 GB/T822M512 97880-05012 screw pan head M5*12
FIG.16-8 PT15-17007 6B4-45251-00 anode
FIG.16-9 GB/T5783M620 97095-06020 bolt M6*20
FIG.16-10 GB/T861.2D6 92990-06300 washer internal tooth Φ6.5*Φ12*0.6*1.5
FIG.16-11 PT15-17011 6E7-45987-01 spacer1
FIG.16-12 PT15-17012 90201-10M01 washer plain Φ10.5*Φ30*2.5
FIG.16-13 PT15-17013 90171-10M01 nut castle M10*1.25
FIG.16-14 GB/T91D2.520 91490-30020 pin cotter
FIG.16-15 PT15-17015 683-45941-00 propeller

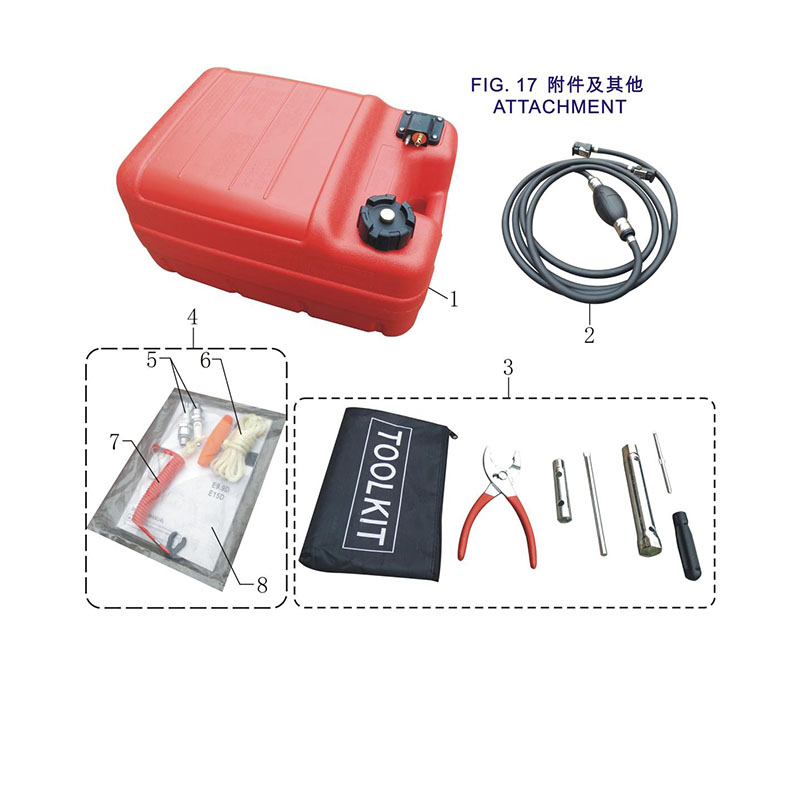

FIG.17 ATTACHMENT

ATTACHMENT

REF. No. Earrow Part No. YAMAHA OEM Part No. DESCRIPTION
FIG.17-1 PT30-20001 6YJ-24201-00 fuel tank assy
FIG.17-2 PT30-20008 61J-24306-03 fuel pipe comp1
FIG.17-3 PT30-20020
FIG.17-4 PT15-18001
FIG.17-5 PT15-02030 94702-00160 plug spark （NGKBR8HS）
FIG.17-6 PT5-14027
FIG.17-7  PT5-07008-1  682-82556-00 stopper
FIG.17-8 PT15-18002
FIG.17-9 PT15-18003
FIG.17-10 PT15-18004
FIG.17-11 PT5-13004
FIG.17-12
FIG.17-13 15-18004-X
Leave a Message

ABOUT US

PRODUCTS

INFORMATION

SUBSCRIBE TO OUR EMAIL NEWSLETTERS

Subscribe to our newsletter for more message.
Subscribe
   melodyyang0327@gmail.com

  +86 15355058556
    +86 13655844979
   No. 88-15, Yugui Road, Chengxi New Zone, Yongkang, Zhejiang, China (Mainland)
© Copyright 2020 by  Yongkang Longxiao Industry & Trade Co.,Ltd
