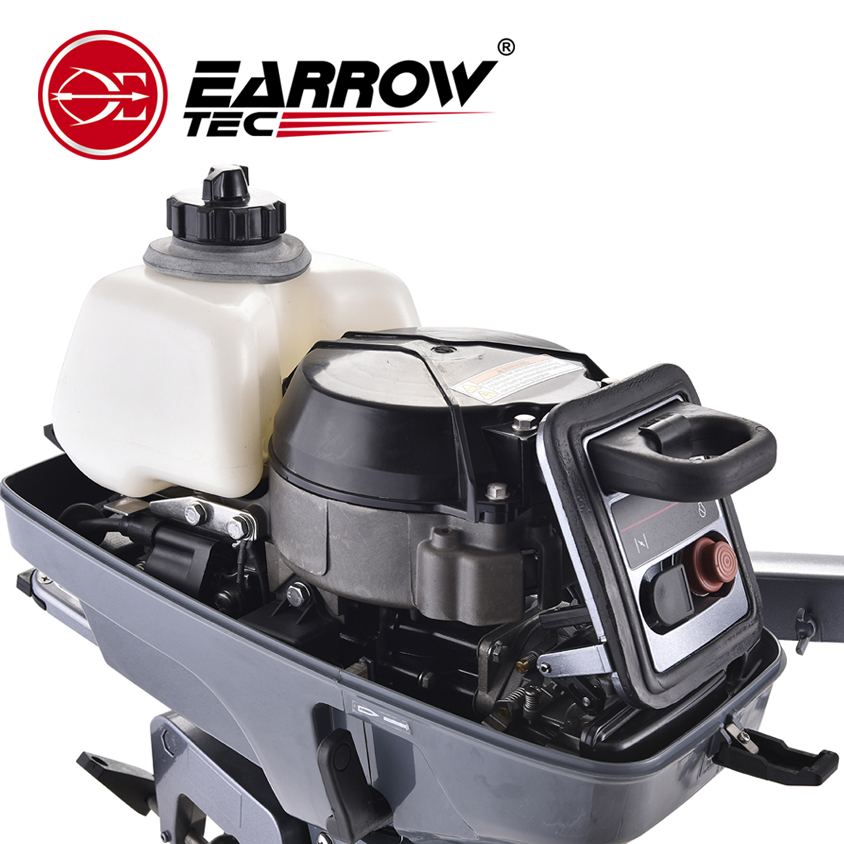

Earrow High Quality Professional Two Stroke Outboard Engine TS-3A

Full Throttle Operating Range: 4500-5500r/m
Maximum Output: 2.2kw/3hp
Idling Speed: 1200±50r/m
Displacement: 70.0cc
  • TS-3A

  • Earrow

Availability:
Quantity:
Model TS-3A(2 stroke)
Demension Overall length: 628mm(24.7 in)
Overall width: 289mm(11.4 in)
Overall height S: 997mm(39.3 in)
Overall height L: 1124mm(44.3 in)
Weight S: 16.5Kg
L: 17Kg
Full Throttle Operating Range 4500-5500r/m
Maximum Output 2.2kw/3hp
Idling Speed 1200±50r/m
Displacement 70.0cc
Bore*Stroke 46.0x42.0mm
Igniton System CDI
Spark Plug NGK BR7HS-10
Spark Plug Gap 0.9-1.0mm
Control System Tiller Handle
Starting System Manual
Starting Carbutetor System Choke Vavle
Gear Position  Forward-Neutral
Gear Transmission Ratio 2.08(27:13)
Trim and Tilt System Manual Tilt
Recommended Fuel Unlead Gasoline
Recommended Engine Oil 2-stroke outboard and motor oil
Fuel Oil Ratio 50:1
Gear Oil 0.075L
Fuel Tank Capacity 1.4L
Packing Size 124*51*35cm
Two Stroke Outboard Engine Supplier 1
Two Stroke Outboard Engine Supplier 2
Two Stroke Outboard Engine Supplier 3
Two Stroke Outboard Engine Supplier 4
Two Stroke Outboard Engine Supplier 5
Two Stroke Outboard Engine Supplier 6


We are trusted partner

■  Top cover more durable

■  Various engine series

■  New design based on Yamaha, easier for use

■  High grade marine aluminum alloy for ultimate corrosion protection

■  Tilt & trim with shallow water drive various positions

■  Low oil indicator for increased protection

■  Twist grip throttle control for easy maneuverability & safety

■  Thermostat controlled water cooling system

■  Safety lanyard with emergency shutoff

■  Easy forward-neutral-reverse gear shifting

■  Vibration reduction system for smooth performance

■  Start in gear protection for increased safety

■  Adjustable steering friction for easier maneuverability

■  CDI ignition system for trouble free starting

■  Innovative large recoil wheel assists easy starting

■  Quiet, through the propeller hub exhaust

■  External Fuel tank with hose



2 stroke 3HP

2 Stroke 3hp


3.5

2 Stroke 3.5hp


4

2 Stroke 4hp


2 stroke 5HP

2 Stroke 5hp

6

2 Stroke 6hp


9.9

2 Stroke 9.9hp


2 stroke 15HP

2 Stroke 15hp


18

2 Stroke 18hp

4 stroke 6HP

4 Stroke 6hp


25

2 Stroke 25hp


2 stroke 30HP

2 Stroke 30hp


2 stroke 40HP

2 Stroke 40hp




Earrow was built on a love for outboards. We have an obssessive eye for details and put clients first every time. Our company is led by exceptional individuals in keeping with the belief that quality is defined by the excellence of our team. We have won customer satisfaction worldwide by supplying the reliable and safe outboard engines. We continue to drive innovation and maintain our experience and knowledge in the outboard industry to let you have more enchanting experience.

We are the only Chinese outboard recognized by YAMAHA and the only outboard supplier choosed by China Flood Control  Headquarters.

EARROW
EARROW in the Canton Fair


How long is EARROW company in outboards industry?

Our Earrow outboards factory started from 2012, for past two years, we mainly focus on product R&D and product endurable testing; We also have separate production line for  producing most die casting & plastic parts for outboards.



Which market you have distributor till now?

Our main markets are distributed in some Southeast Asia& South American, Africa and Australia market;



What’s your production ability per month/per year?

2000PCS each month, and 25000pcs/year



What kind of Certificate you have:

ISO9001 / CE certified/SGS;



How long you will test each engine before packing and shipment?

Half hour for testing before packaging.



The spare parts was made by yourself or purchased?

Some key parts are purchased from Taiwan and Japan,

all other plastic & aluminum parts (such as bottom cover, lower unit case, propeller, crankcase etc. are made by our own plant,assure our spare parts quality control and delivery time.



How about Warranty?

1 year warranty for commercial use;

We supply 2% free wearing spare parts to distributor, to support their after sale service.
